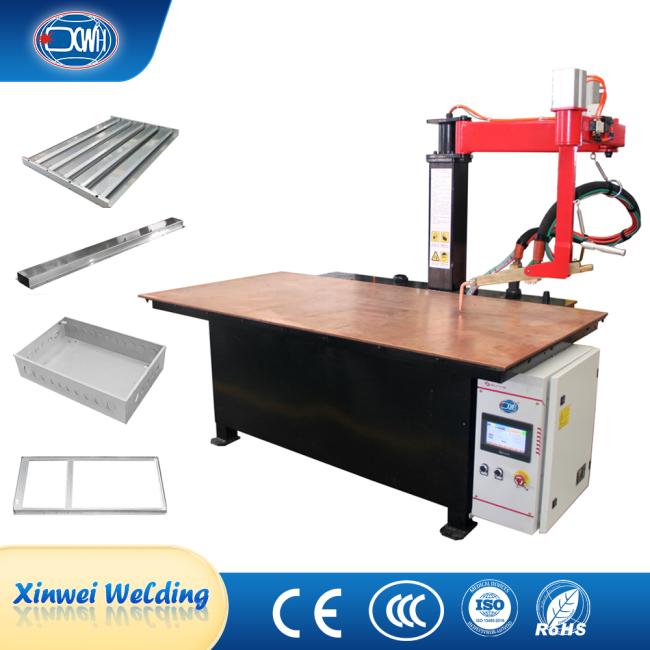

This Rocker Arm Spot Welding Machine incorporates a unique movable welding gun​ design, combining its flexibility with a sturdy horizontal bench-type work platform​ to form an efficient sheet metal welding solution. The welding gun can move freely and be precisely positioned​ above the table surface along the rocker arm, allowing the operator to easily access all weld locations on the workpiece. It is particularly suited for rapid spot welding of large sheet metal components like door panels and metal cabinets. This design eliminates the need to move heavy workpieces, significantly enhancing operational flexibility, accessibility, and production efficiency while ensuring consistent weld strength, making it an ideal choice for small to medium batch, high-mix sheet metal production

• Movable Gun & Extensive Coverage: The welding gun is mounted on a movable rocker arm, enabling free movement over a large area​ above the worktable. It easily reaches zones inaccessible to traditional fixed guns, allowing for rapid, all-around welding of large sheet metal workpieces.

• Deep-Throat Access for Internal Spots: Thanks to the rocker arm's deep-throat structure, the welding gun can easily extend into deep internal areas or corners​ of workpieces like cabinets and enclosures for welding, perfectly solving the accessibility challenge for spot welding internal structures.

• Pneumatic Pressurization for Uniform Quality: Employs a precision pneumatic pressure system​ to deliver constant, adjustable welding force. This reduces operator effort and, more importantly, ensures consistent pressure on every weld spot, resulting in uniform, strong, and highly repeatable​ weld quality.

• Mark-Free Welding Simplifies Finishing: Advanced energy control technology ensures weld spots leave no visible indentations or marks on the front side of the workpiece, greatly enhancing the product's aesthetic quality. It eliminates secondary processing steps like grinding and polishing, saving costs and improving the working environment.

• Extremely Simple Operation & Quick Ramp-Up: The lower electrode is a horizontal worktable​ for simple and intuitive workpiece placement. The high level of automation lowers the skill requirement, allowing operators to become productive quickly without specialized experience, effectively improving labor efficiency and ensuring stable output

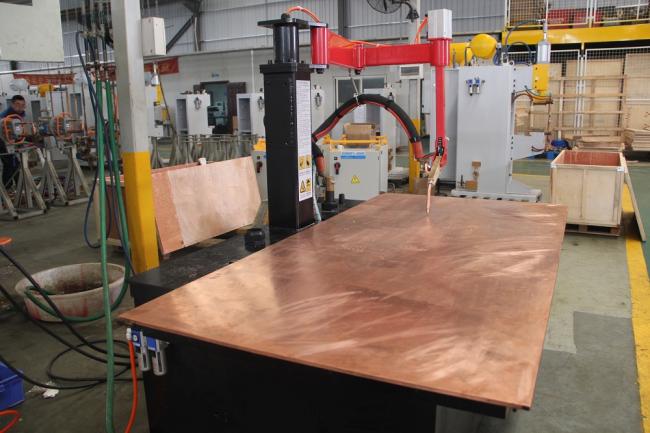

Whole copper plate electrode

Larger welding area for better operation.

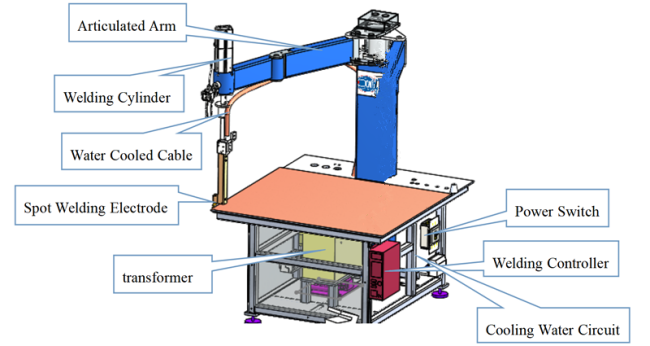

Joint swing arm

Convenient and flexible to operate, with a wide range of activities and flexible operation. Can be welded deep into the box.

More details, please contact!
