Automatic Feeding Double-Sided Spot Welding Machine

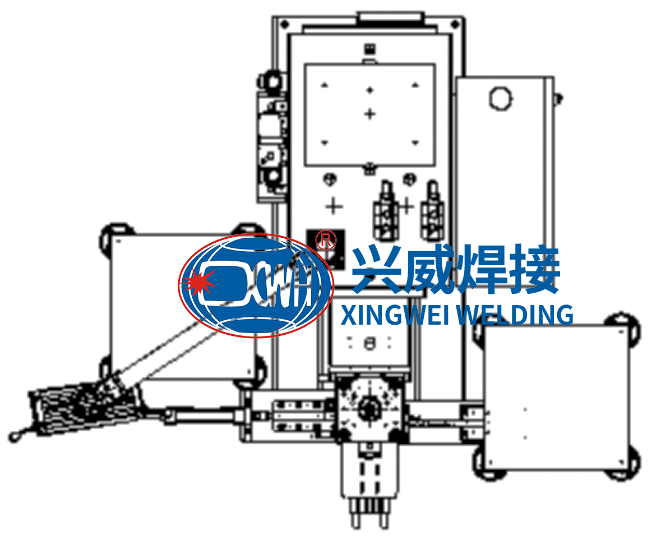

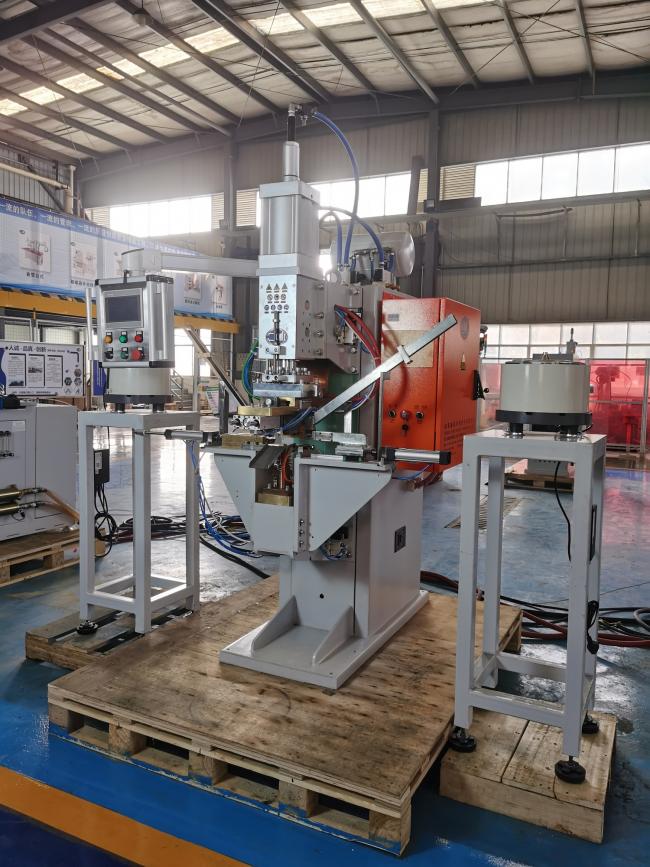

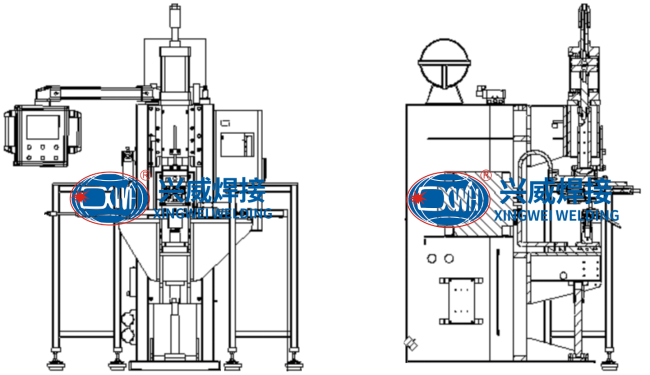

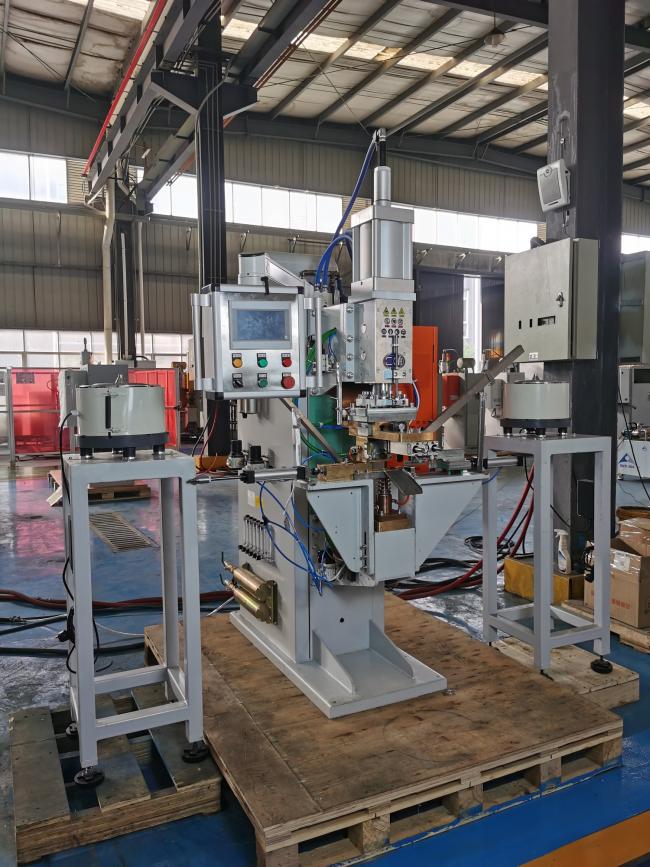

This is a stationary, DC pneumatic spot welding machine designed for the automated assembly of shock absorber bottom covers. It features an integrated automatic feeding system with two high-precision vibrating bowls for the bottom cover and welding ring, respectively. The system utilizes a servo-driven positioning mechanism for accurate part alignment and an MFDC (Mid-Frequency Direct Current) inverter welding power supply combined with a constant pressure control system to perform welding. It is engineered to complete the welding and unloading process automatically, supporting a continuous production cycle.
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
|---|---|---|---|---|
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
A. Complete Automated Workflow

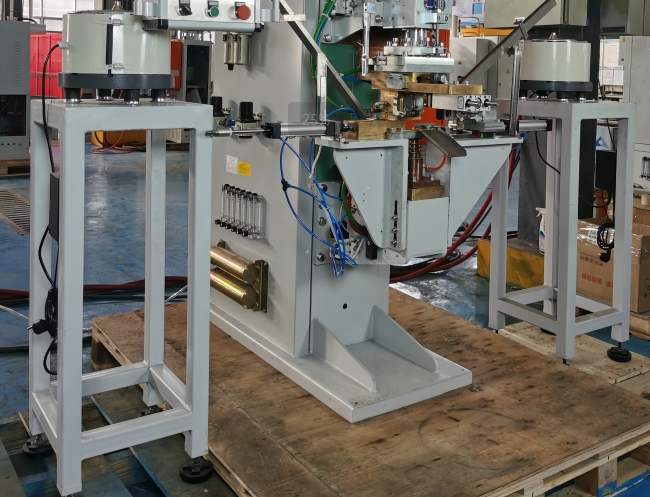

Integrated Auto-Feeding: Two independent vibrating bowl feeders are designed for automated orienting and precise feeding of both the bottom cover and welding ring components, reducing manual handling.

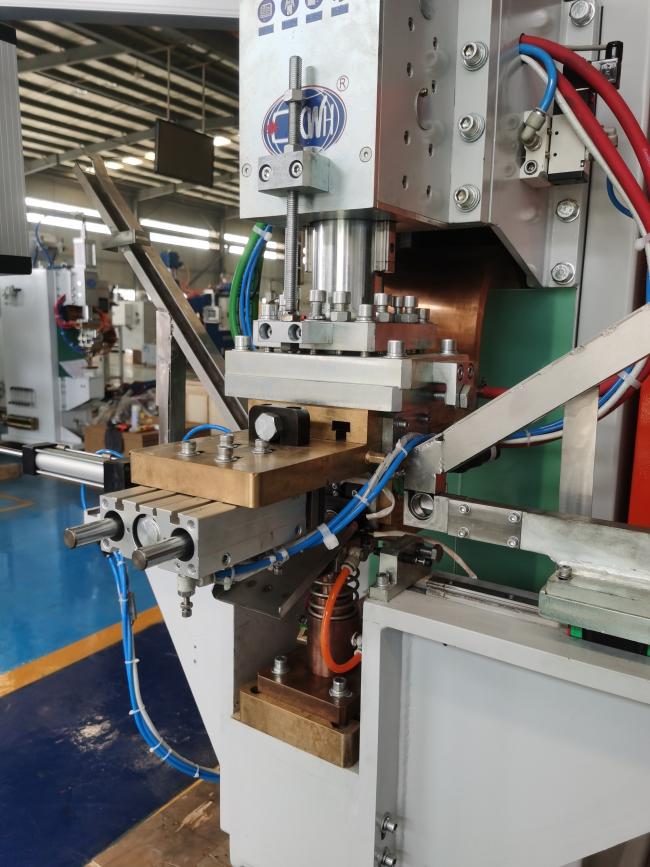

Servo-Assisted Precision: A servo-driven positioning mechanism is employed to help ensure accurate assembly of workpieces prior to welding.
B. Stable & Efficient Welding Process
MFDC Inverter Power Supply: The use of a Mid-Frequency DC inverter welding power supply, combined with constant pressure control, aims to provide stable, controllable welding energy for consistent results.
Optimized Pressure Application: A pneumatic-hydraulic booster cylinder provides adjustable electrode pressure, while a dedicated air storage tank is included to help minimize fluctuations in welding force.
C. Robust and Durable Construction
High-Rigidity Machine Frame: The body is designed for impact resistance and high rigidity, with internal reinforcement ribs intended to minimize deformation during operation and support welding stability.
Responsive Drive System: The use of a combination cylinder with low-friction components and a pilot-operated high-flow valve is designed for smooth, fast electrode movement and responsive performance.
D. Operational Safety & Protection

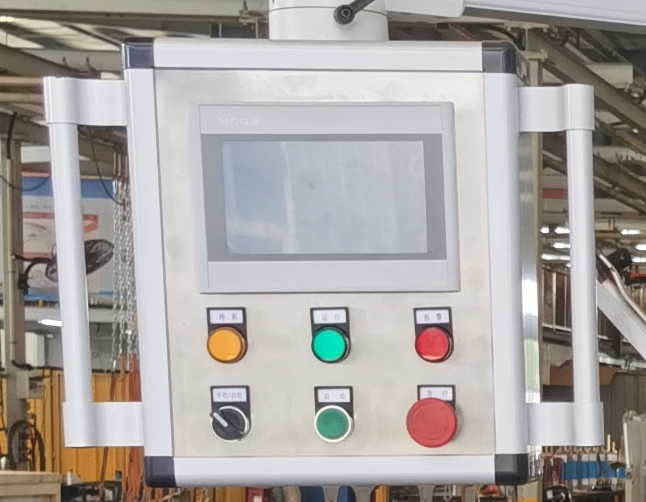

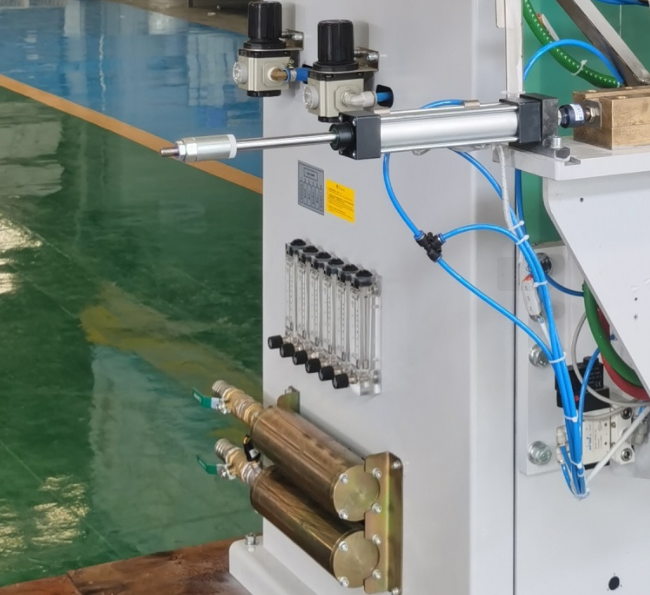

Comprehensive System Monitoring: Equipped with air and water pressure switches and alarms, the system is designed to help prevent operation during pressure shortages, protecting the equipment.
Insulated Secondary Circuit: An insulated upper arm and pressurized cylinder seat design is intended to help prevent short circuits during direct installation on the lower base, promoting operational safety.
Our factory can customize according to your requirments. More details, please contact!
