Horizontal CNC Automatic Seam Welding Machine
Horizontal CNC Automatic Seam Welding Machine
Product Description
Horizontal Aluminum Cnc Automatic Welder Resistance Welders Carbon Steel Piston Bore Shock Absorber Seam Welding Machine
This Horizontal CNC Automatic Seam Welding Machine is engineered for precision seam welding applications requiring high airtightness, such as shock absorber piston bores. Designed as a production system with automatic feeding and inspection capabilities, it utilizes a 200KVA power source compatible with various materials including aluminum and carbon steel. The machine integrates resistance welding control technology and a conductive shaft with an embedded silver-tile structure, aiming to achieve consistent weld penetration and millimeter-level precision control. The intelligent control system is designed to support efficient, stable production.
Technical Parameters
| Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|---|---|---|---|---|---|---|
| Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
| Voltage input | V | 380 | 380 | 380 | 380 | 380 |
| Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
| Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
| Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
| Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
| Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
| Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
| Motor Power | W | 550 | 750 | 750 | 750 | 400 |
| Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Main Features
A. Precision & Consistency for Sealed Welds
- Controlled Weld Accuracy: The resistance welding control system technology is implemented to allow for precise control over the weld seam, with the goal of maintaining minimal fluctuation in melt depth.
- High-Conductivity Components: The use of a conductive shaft with an embedded silver-tile structure is intended to provide high conductivity, which may contribute to stable energy delivery during the welding process.
B. Stable Automated Operation
- Smooth Servo-Driven Motion: Typically driven by a servo motor, the horizontal seam welding system is designed to provide stable speed and smooth rotation of the workpiece, with adjustable speed settings for different process requirements.
- Programmable PLC Control: Operation is managed by an industrial PLC, allowing welding processes to be programmed and set. The system aims for a short operating cycle with responsive and reliable control.
C. Operational Efficiency & Connectivity
- Intuitive Touch Screen Interface: Welding parameters can be set and modified via a touch screen for human-machine interaction, facilitating operation and the switch between manual and automatic modes.
- Data Management Capability: Real-time welding parameters and production counts can be viewed on the interface, with functionality to upload or download data via systems like MAS or a USB drive, supporting production tracking.

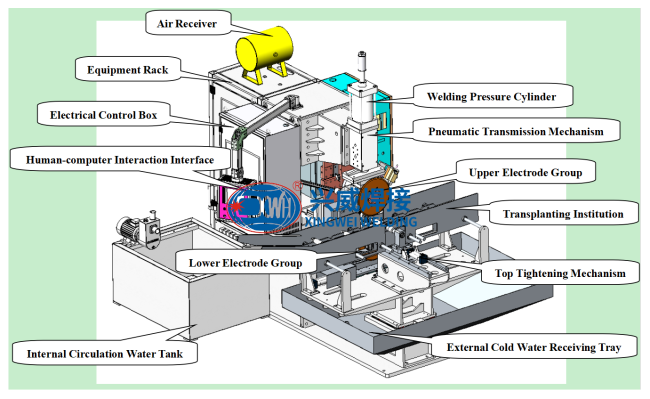

General Structures
Detail Images
Customized Fixtures and Moving Components
Cylinder
Gas Storage Tanks
Waterway Components

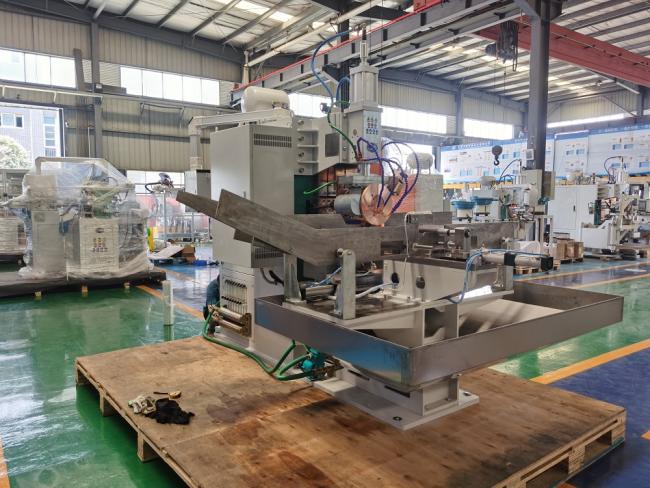

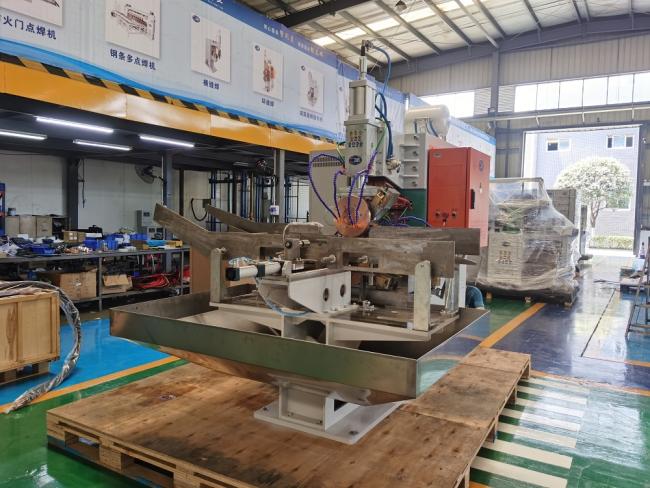

Scene images
More details, please contact!
