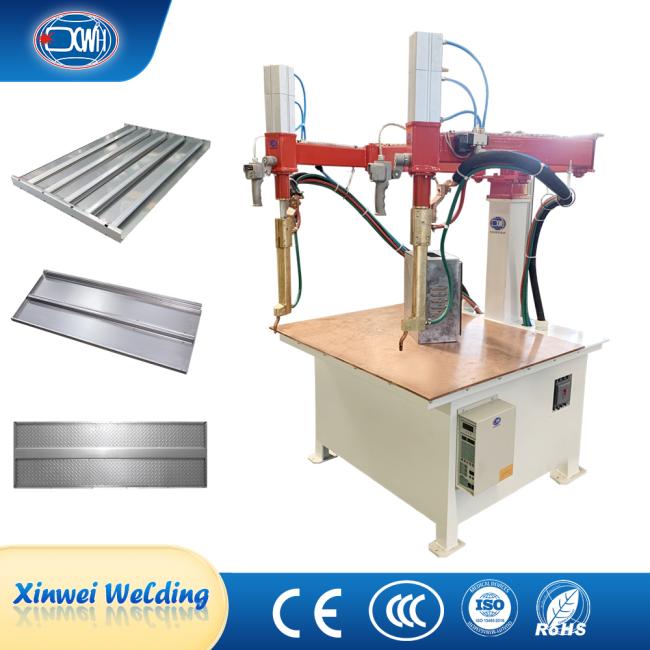

This Dual-Arm Rocker Spot Welding Machine is a highly efficient welding platform featuring a deeply customized design, optimized for high-volume, high-quality spot welding of sheet metal structural components. At its core are two independently controllable rocker-arm welding gun systems, capable of operating simultaneously or alternately, significantly boosting productivity compared to single-gun units. The unique deep-throat rocker arm structure, combined with a horizontal worktable, provides unparalleled convenience and access for welding spots located at internal deep corners and flat edges of products like metal cabinets, operating tables, and door panels. It ensures strong weld integrity while effectively preventing surface indentation on the workpiece, perfectly meeting the demands of sheet metal welding applications with stringent aesthetic requirements

• Dual-Arm Synergy, Doubled Efficiency: Features two programmable rocker-arm welding guns that support simultaneous dual-point welding or alternate cycling operations. This allows for flexible layout based on the product's welding sequence, increasing production efficiency by up to 100%, making it ideal for multi-point welding of large workpieces.

• Deep-Throat Design, Unobstructed Access: The unique long-stroke rocker arm design (often called an "elephant trunk" structure) allows the welding gun electrodes to easily reach and weld at deep internal locations of workpieces like cabinets and enclosures. It solves the welding inaccessibility issues of traditional stationary welders, expanding process capabilities.

• Precise Pneumatic Force, Consistent Quality: Employs a high-precision pneumatic pressure system to deliver constant, adjustable welding force. This not only reduces operator fatigue but, more importantly, ensures consistent pressure on every weld spot, resulting in uniform, reliable, and highly repeatable weld quality.

• Flawless Finish, Mark-Free Welding: The process offers precise control over heat input. While forming a strong nugget, it minimizes the formation of welding indentations (marks) on the front side of the workpiece. This significantly enhances the product's aesthetic quality and eliminates subsequent finishing processes like grinding and polishing.

• Simple Operation, Quick Mastery: The lower electrode is a horizontal worktable, allowing workpieces to be placed and positioned directly for intuitive operation. The high level of automation lowers the skill threshold for operators, enabling quick proficiency without extensive experience, effectively reducing training time and ensuring stable output
