New Medium Frequency Pneumatic Manual Resistance Stationary Projection Spot Welding Machine 100KVA Copper Wire ISO/CE/RoHS
Price:
$14,000-24,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xinweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

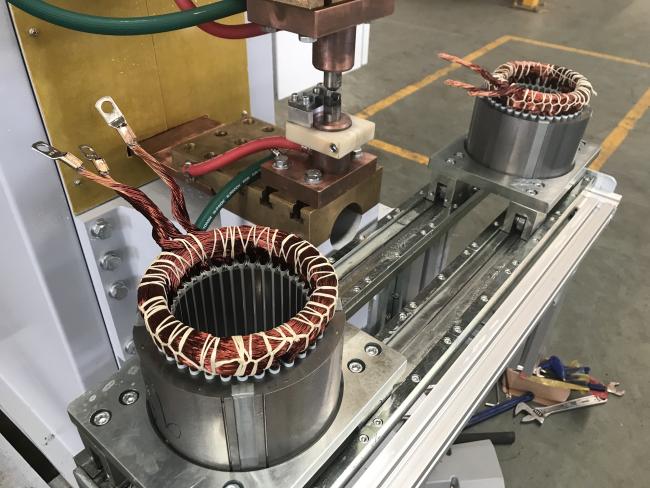

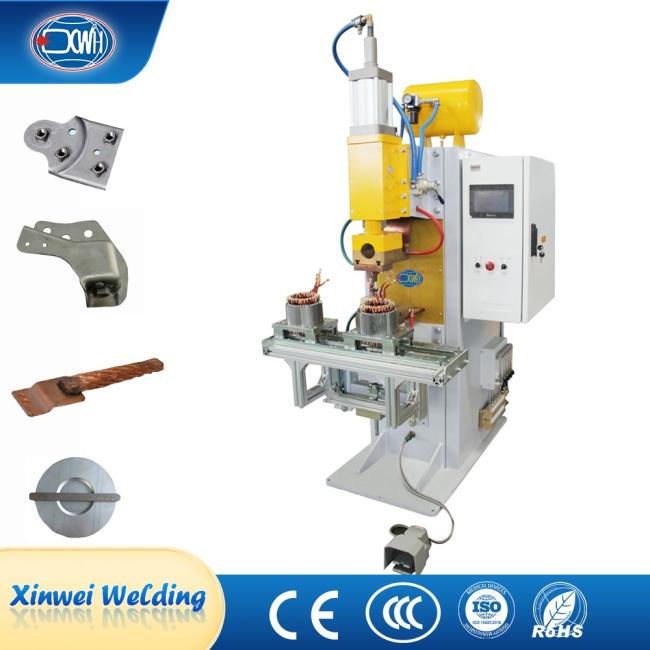

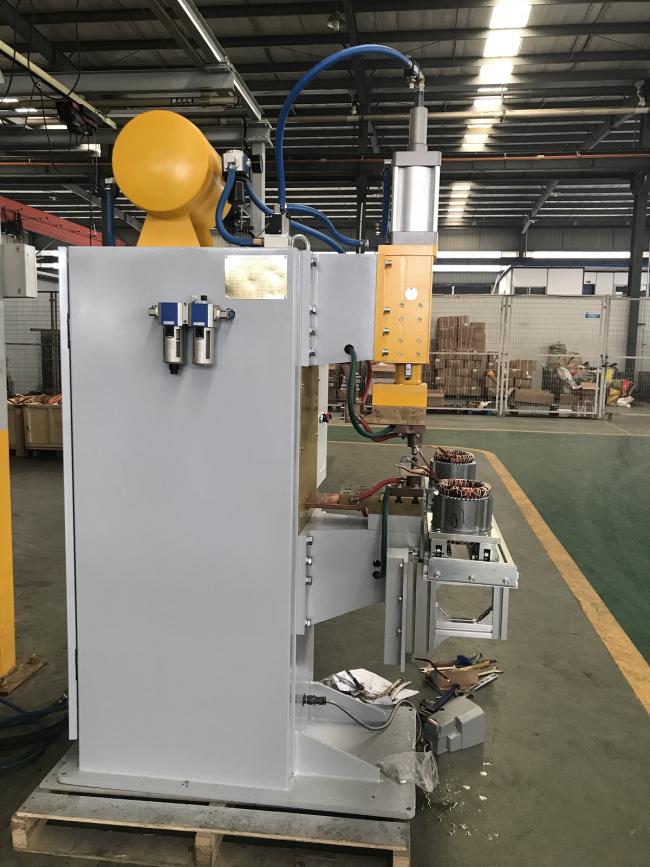

Medium Frequency Pneumatic Manual Resistance Stationary Projection Spotwelding Machine 100Kva Copper Wire Spot Welding Machine

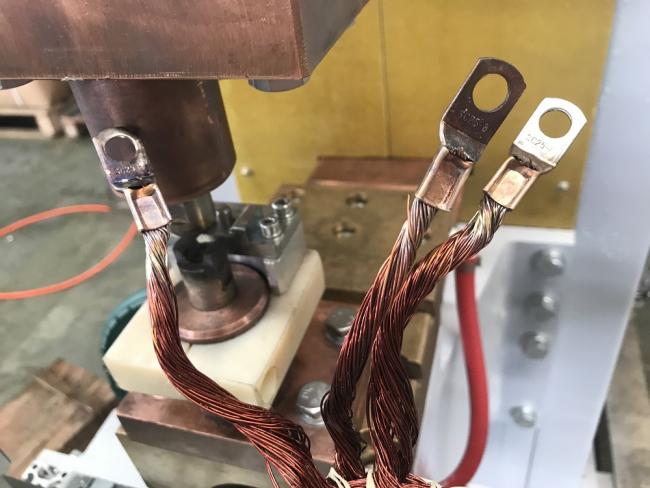

Standard fixed spot projection welding machine is a dual purpose spot projection welding machine produced by our company, mainly used for the welding of low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve the welding of plate to plate, plate to projection welding nuts, and bolts. And this welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
Item/Model | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
Rated power At 50%(KVA) | 40 | 63 | 80 | 100 |
Rated primary power(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. Short Circuit Current （KA） | 30 | 35 | 40 | 45 |
Duty cycle（%） | 50 | 50 | 50 | 50 |
Max. Force（N） | 6000 | 6000 | 10000 | 15000 |
Electrode Length（ mm） | 450 | 450 | 450 | 500 |
Working Stroke（ mm） | 80 | 80 | 80 | 80 |
Cooling consumption（L/min） | 20 | 20 | 20 | 20 |
Max. Welding Capacity（mm) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Main Features
Detail Images
The Upper Electrode
The upper electrode is pressurized with an auxiliary cylinder, making stroke adjustment convenient and precise, allowing for continuous adjustment of the workpiece operation stroke.
The Pressure Component
The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.
Gas Storage Tank
The spare dedicated gas storage tank for welding machines is beneficial in reducing welding pressure fluctuations and ensuring stable welding force.
Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

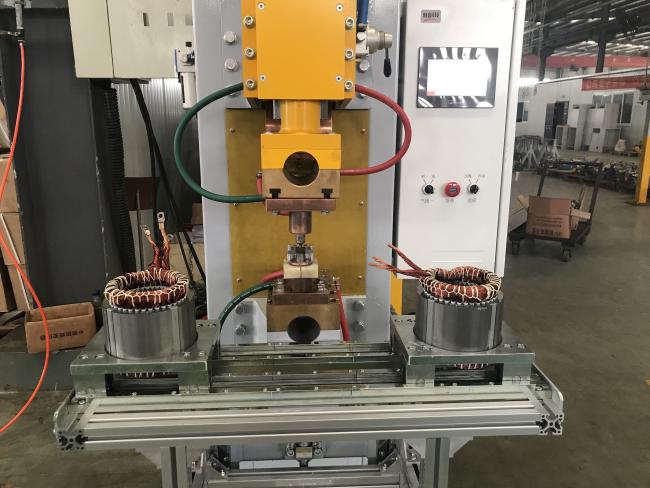

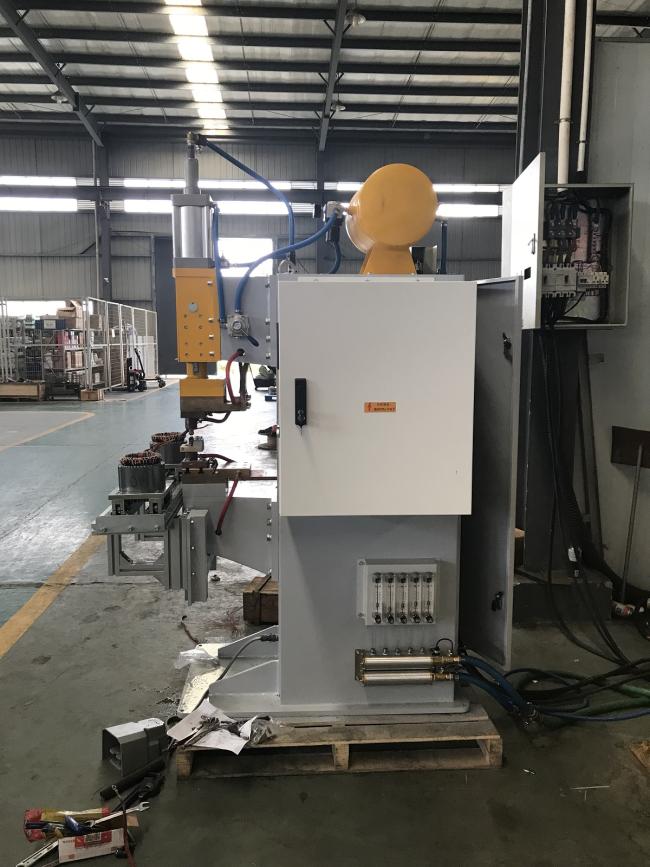

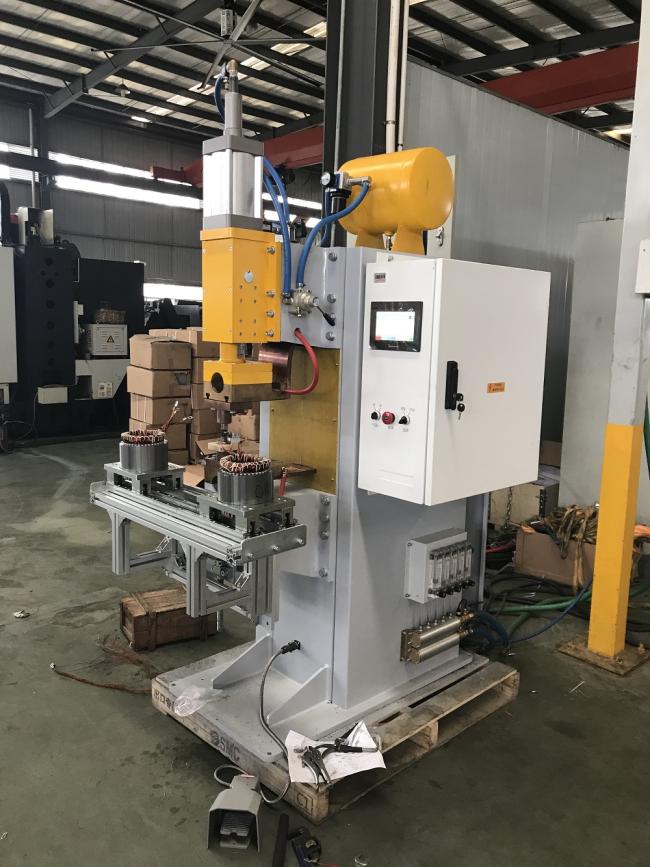

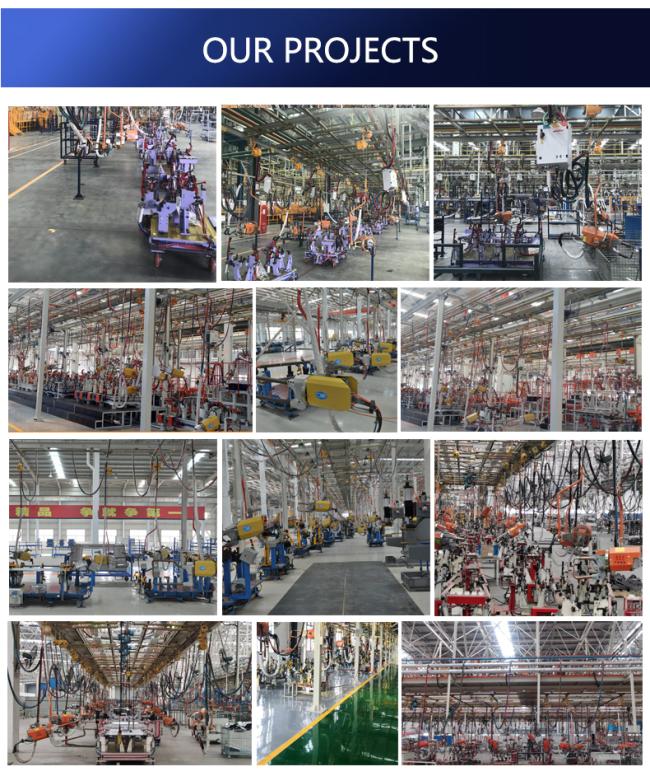

Scene images
More details, please contact!
