The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.
New Rolling Vertical Circular Continuous Automatic Alloy Metal Seam Welding Roller Resistance Welder for Faucet Connector
Price:
$12,000-13,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

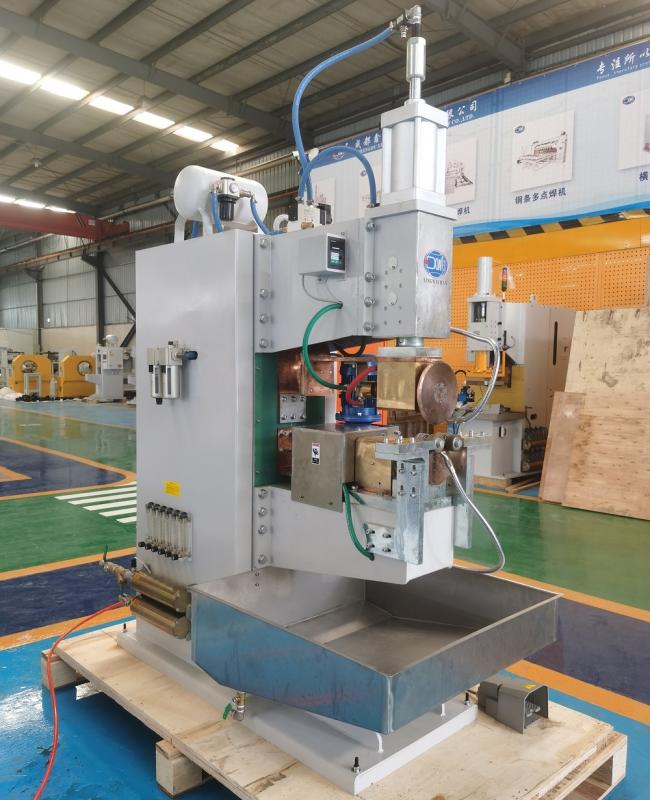

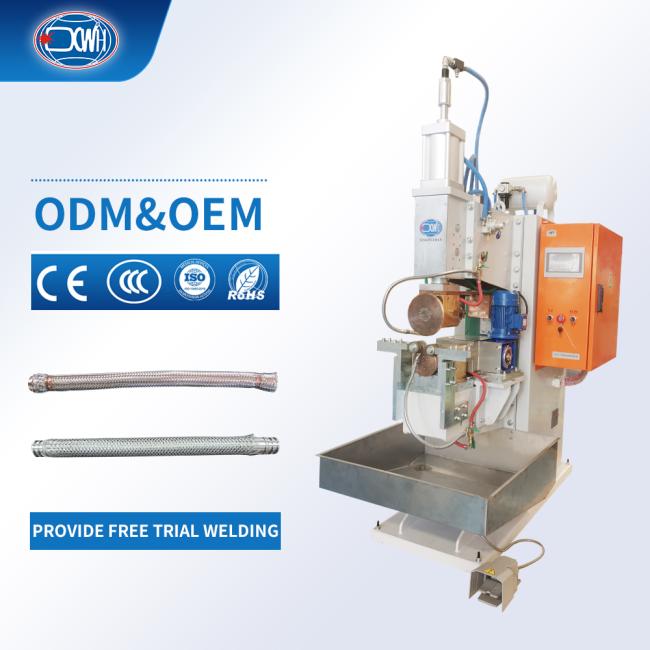

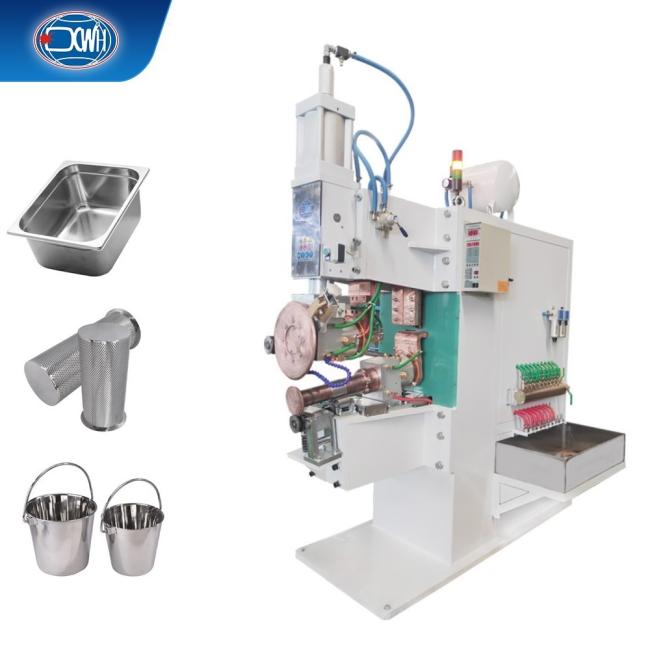

Rolling Vertical Circular Continuous Roller Resistance Welder Seam Welding for Faucet Connector
The circular seam welding machine is a multifunctional and easy-to-use welding platform, widely used for connecting stainless steel corrugated pipes in various household appliances and bathroom products. Its unique "manual loading and unloading+automatic rotary welding" mode not only leverages the efficiency and stability of automated equipment, but also retains the flexibility and low-cost advantages of manual operation. Operators only need to place the workpiece and start button, and the machine can complete precise rotary welding, easily meeting the flexible production needs of multiple varieties and small batches.
Technical Parameters
Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Main Features
1. Precise and advanced frequency conversion welding technology: The core of this equipment adopts an advanced frequency conversion control system, which can finely adjust the welding current, voltage, and time. This precise energy control is particularly suitable for welding thin-walled stainless steel materials, which can effectively avoid defects such as burn through and incomplete penetration caused by unstable heat input, ensuring the firmness and sealing of the weld foundation from the source.
2. Uniform and stable automatic rotation welding: The equipment achieves automatic and uniform rotation of the workpiece, and is used in conjunction with a fixed welding wheel for welding. This process ensures that the solder joints can uniformly and continuously cover the entire annular interface, forming a 360 ° smooth and consistent weld seam. Not only does it have a beautiful appearance, but its internal penetration is also uniform and reliable, greatly improving the long-term durability and safety of water connectors under high pressure conditions.
3. Special clamping scheme for corrugated pipe structure: A dedicated clamping device has been designed for the unique peak valley structure of flexible corrugated stainless steel pipes. It can stably and non destructively hold the corrugated pipe, effectively preventing it from slipping or shifting during the rotary welding process, ensuring precise alignment of the welding position. This is a key prerequisite for obtaining high-quality circumferential seams, highlighting the professionalism and high adaptability of the equipment.
4. Instant water cooling to optimize material performance: After welding is completed, the workpiece can be immediately placed in an external water storage tank for rapid cooling. This process not only improves the production cycle, but more importantly, for stainless steel materials, rapid cooling helps them quickly pass through the sensitization temperature zone, reduce carbide precipitation, and better maintain the corrosion resistance of the weld area, thereby extending the overall service life of the product.

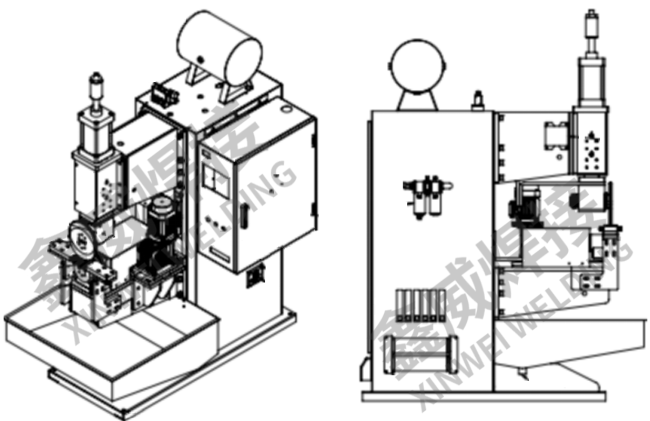

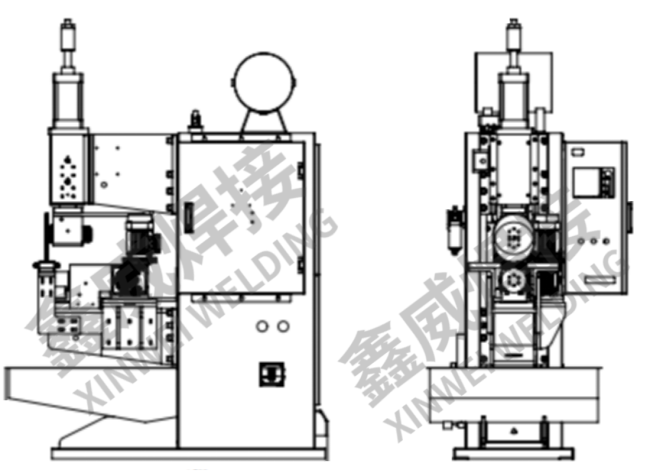

General Strctures
Detail Images

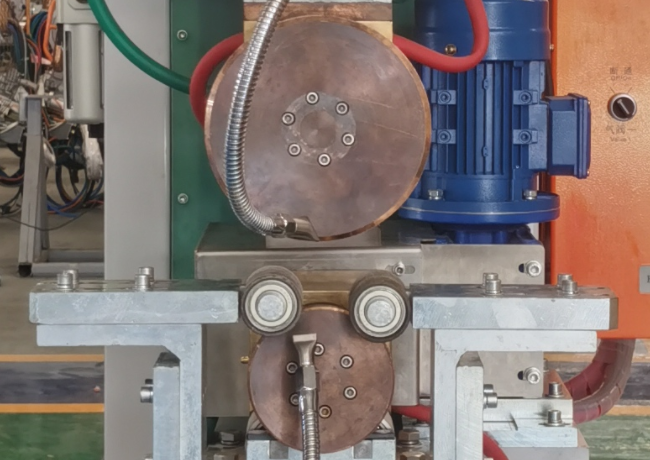

Efficient Automation Process
Achieving fully automated operations from clamping, automatic rotation to welding, with manual labor only responsible for simple loading and unloading, greatly improving production efficiency and consistency.

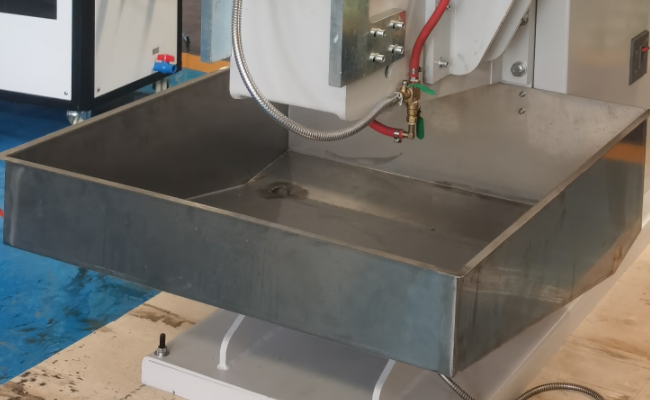

Integrated Cooling Solution
The external water storage tank seamlessly connects with the welding process, facilitating immediate cooling of the workpiece after welding, optimizing the production process, and improving overall operational efficiency.

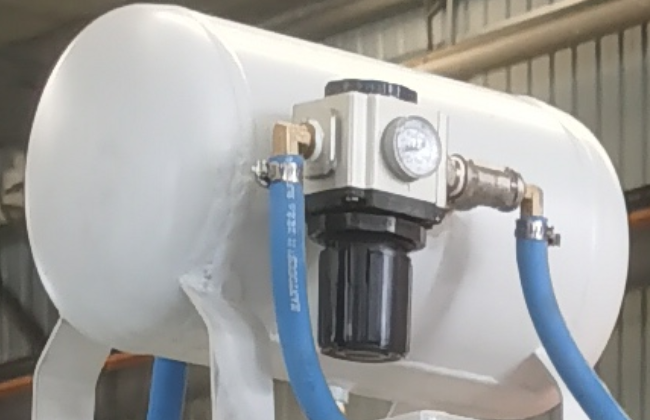

Gas Storage Tanks
The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

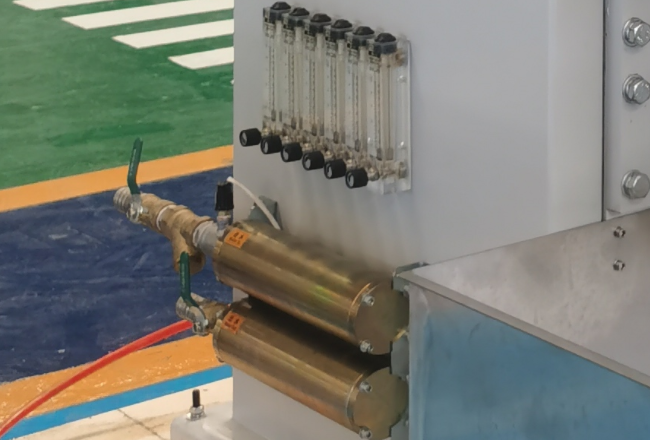

Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

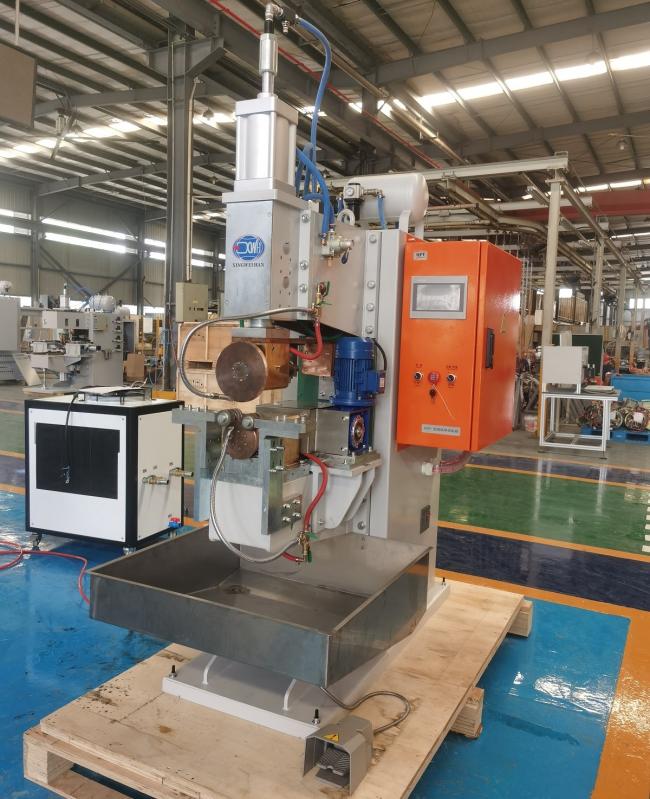

Scene images
More details, please contact!

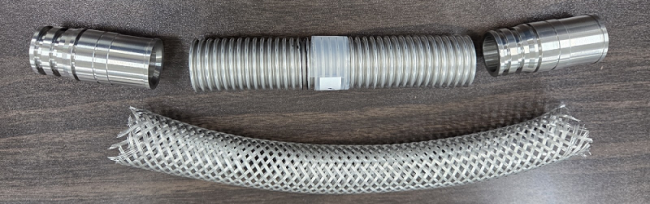

Before Welding

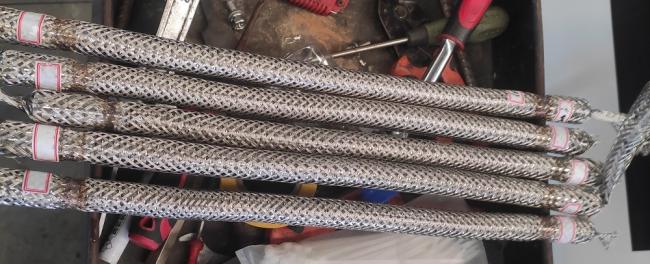

After Welding

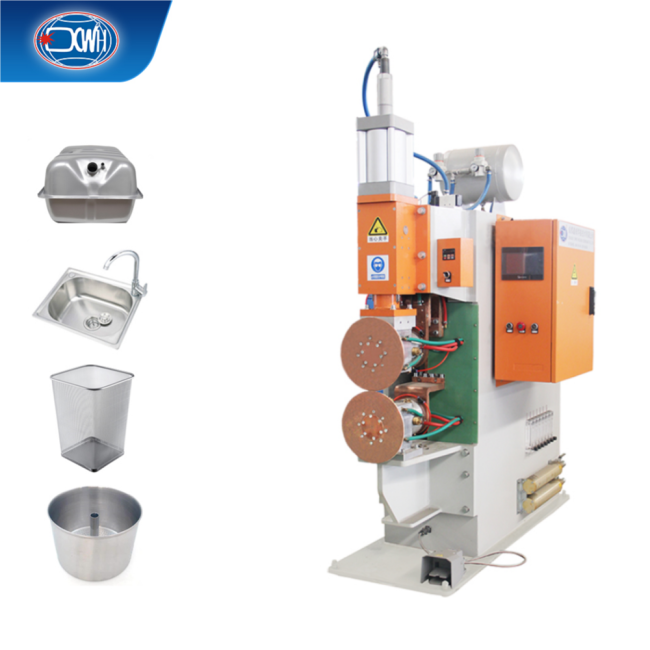

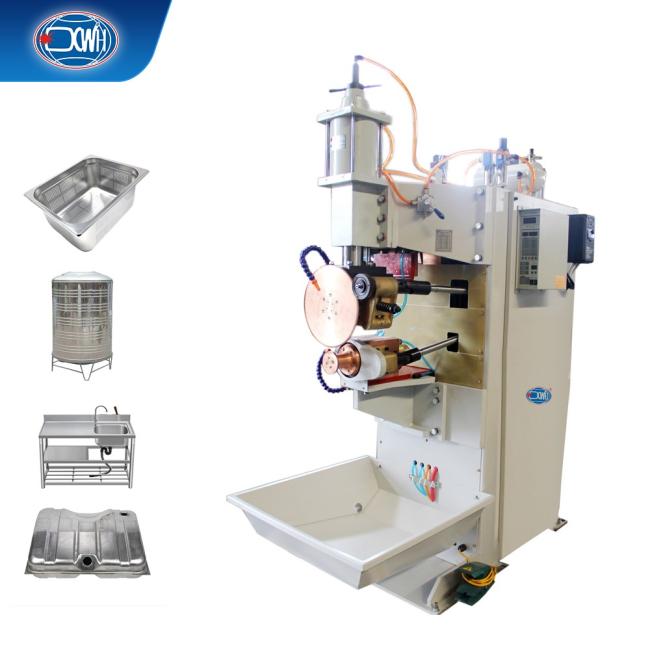

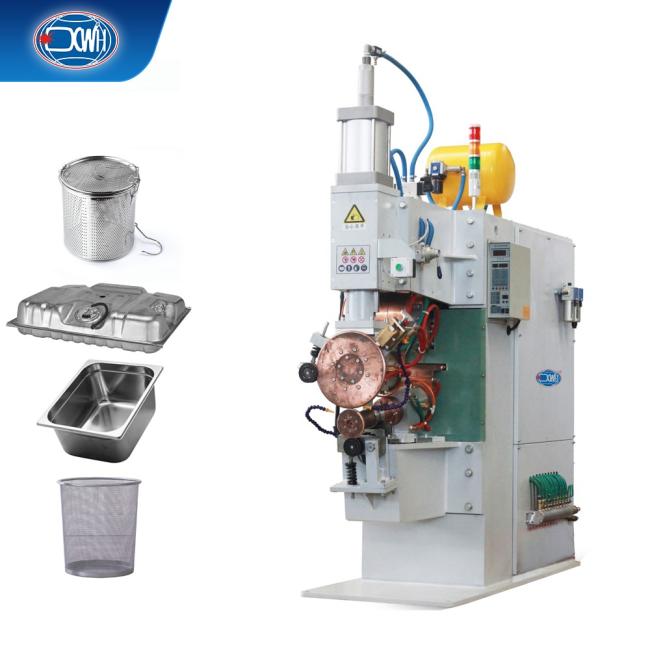

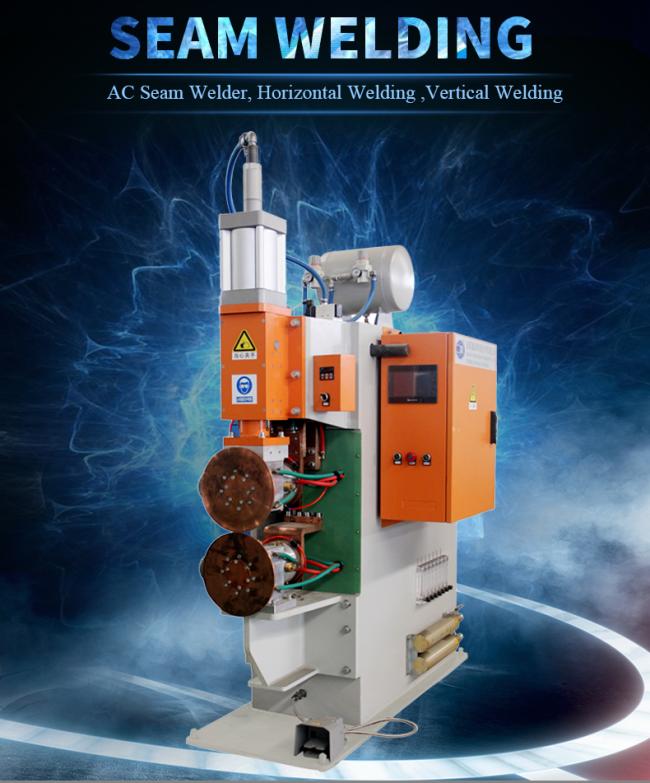

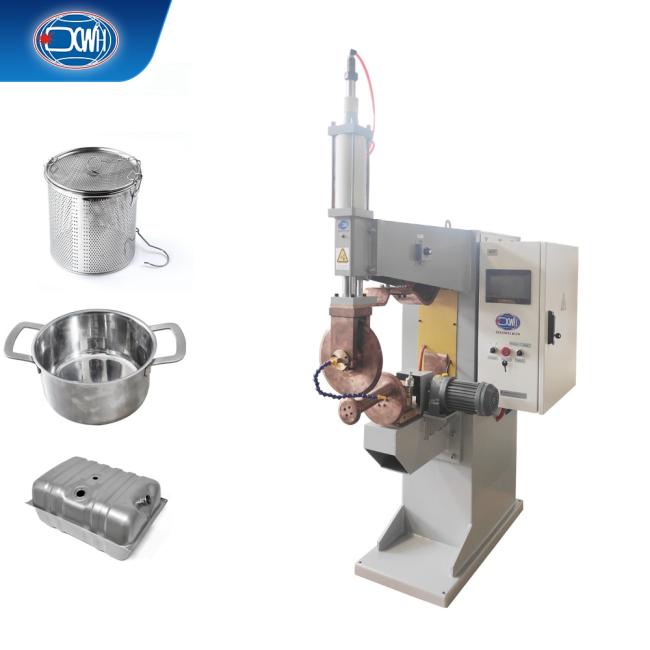

Multi Types Of Seam Welders
Similar Product

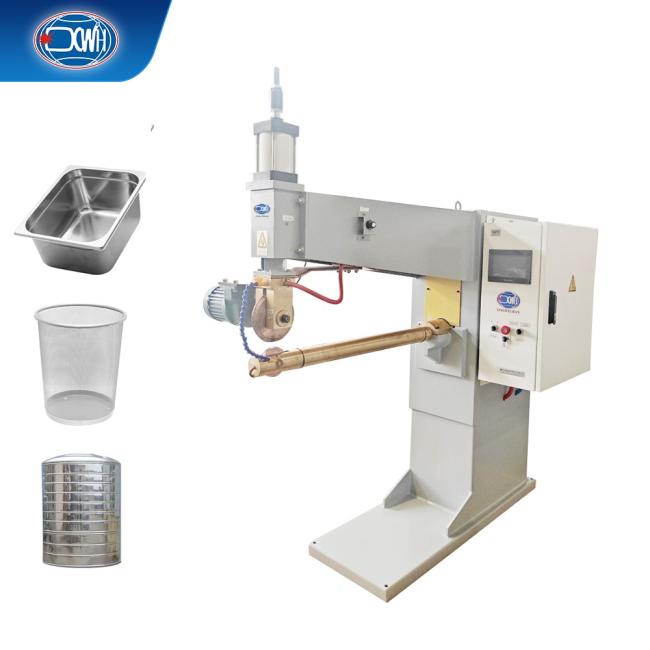

Horizontal Automatic Seam Welding Machine
