The shock absorber storage cylinder convex ring special machine is a specialized equipment developed for the forming process of automotive shock absorber storage cylinder convex rings. It adopts advanced hydraulic forming and precision control technology to achieve high-precision and high-efficiency processing of the storage cylinder convex ring parts. This device is designed specifically for the manufacturing of core components of automotive suspension systems, and can meet the requirements of convex ring forming for different specifications of oil storage cylinders.
Horizontal Type 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders
Price:
$28,000-30,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions. A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)
Product Description
Horizontal Type Hot Selling Product 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders for Steel
The horizontal automatic seam welding machine is mainly composed of a host frame, pneumatic transmission mechanism, human-computer interaction interface, silver tile conductive components, transplanting mechanism, differential transmission mechanism, secondary circuit, welding transformer, welding controller, water and gas circuit system and other components. Specially designed for welding shock absorbers, shock absorbers, and piston cylinders, and suitable for workpieces of different specifications, with high cost-effectiveness. Automatic feeding and welding to improve production efficiency.
Technical Parameters
|
Model/Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power
|
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke
|
mm
|
100
|
100
|
100
|
100
|
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power
|
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Main Features
2. Control system: Industrial PLC is used to control the operation of the whole machine. The process can be compiled and set, with a short operating cycle, fast response speed, accuracy, stability, and reliability. Through touch screen for human-machine interaction, it is convenient to set various welding process parameters; Set and modify device parameters and perform various manual and automatic actions; View real-time welding parameters and quantities, which can be uploaded through the MAS system or downloaded from a USB drive.
3. Automation level: The equipment can match different welding fixtures according to the workpiece situation, and can achieve semi-automatic welding mode of manual feeding and automatic welding; It can also be a fully automatic welding method with automatic feeding and welding by the equipment; It can also be connected to the production line to achieve automatic welding on the production line.
General Strctures
Detail Images

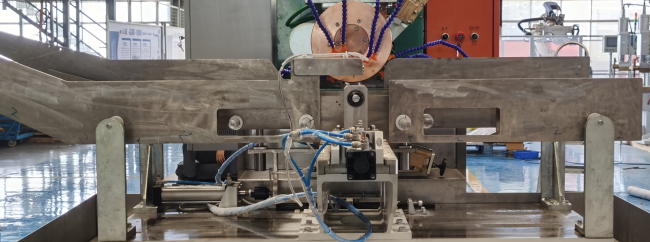

Customized Fixtures and Moving Components
Adopting a cyclic transplanting mechanism can achieve fully automatic welding and improve welding efficiency.The device has high compatibility and can weld workpieces of different diameters and lengths.
Cylinder
Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

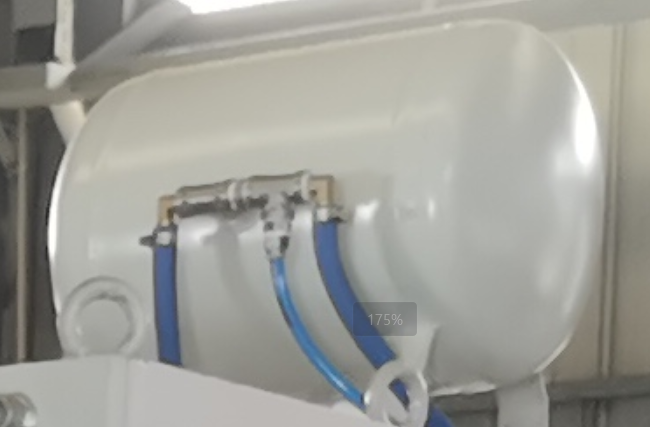

Gas Storage Tanks
The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

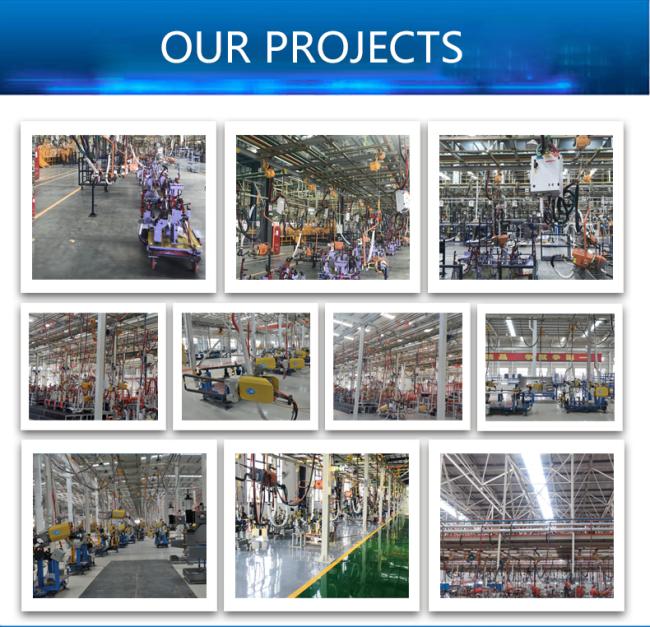

Scene images
More details, please contact!
Multi Types Of Seam Welders
Similar Product

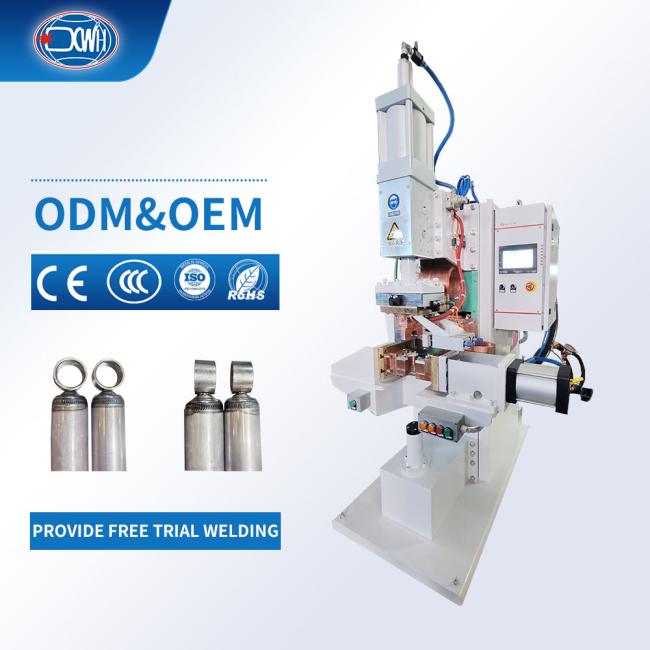

Projection Welding Machine For Shock Absorber
Shock Absorber Welding Machine
Designed based on the workpiece with protrusions on the bracket and inner plate provided by the customer. The thickest plate thickness of the welding material is 4.5mm+2.5mm (with 5 welding protrusions on one side). This welding machine adopts pneumatic pressurization and vertical movement of the upper electrode. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.
