Precise CNC Steel Round Tube Longitudinal Fiber Laser Welding Machine Stable Roll Forming

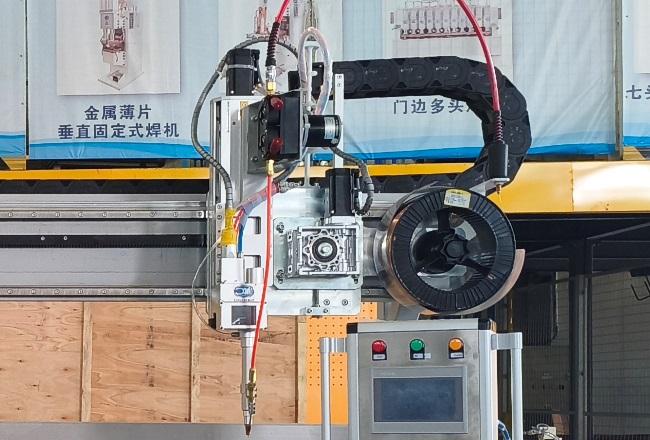

This round pipe fiber laser welder is engineered for the high-precision butt joining of metal tubes. Its core process employs the unique "fixed machine, rotating workpiece" mode, ensuring uniform and consistent high-quality weld seams. The system integrates a high-precision rotary platform, a pneumatic clamping system, and a multi-axis adjustable welding torch, offering the flexibility to handle different pipe diameters and materials with wall thicknesses from 0.5-4mm. Its fully automated welding cycle significantly reduces reliance on operator skill, making it particularly suitable for high-volume production in industries such as appliances, metal products, and automotive parts, where circumferential pipe seams demand high strength, excellent sealing, and superior appearance
| Name | Handheld laser welding machine | |
|---|---|---|
| Model | XWH-1500 /XWH-2000 | XWH-3000 |
| Supply Demand Power | 220V + 10%, 50Hz; Rated curent: < 14A | 3 8 0 V±5 % ,5 0 H z ,Rated curent: ≤2 5 A |
| Environmental Requirements | Temperature 5-40℃; Humidity 10-90% | |
| Cooling Method | Water Cooling (dual temperature and dual control) | |
| Output Power Instability | ≤士2%24-hour (continuous operation) | |
| Utilization Rate | ≤99 .5% | |
| Laser Wavelength | 1080nm | |
| Optical Fiber | 50um 10m | |
| Beam Output | 1 Beame | |
| Modulation Frequency | 20KHz | |
| Dimensions | 900*430*710mm | |
| Weight | 87kg | |

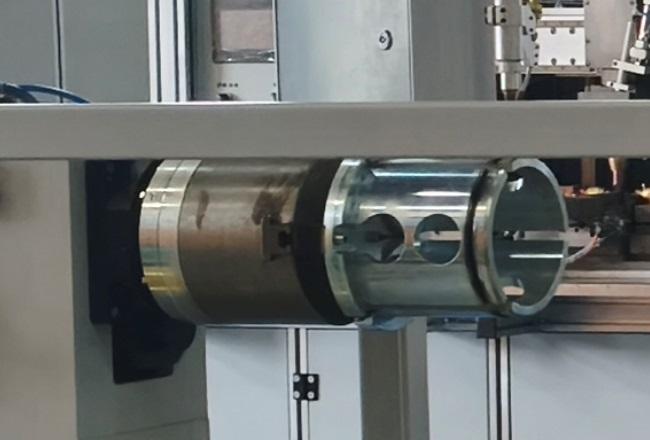

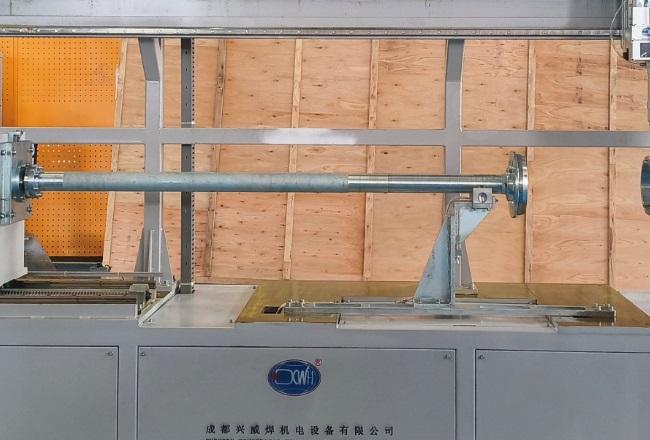

- High-Precision Rotation & Pneumatic Clamping: The pneumatic gripper works in tight coordination with the high-precision rotary platform to ensure smooth workpiece rotation during welding, achieving a weld seam path free from deviation or runout. This lays the foundation for uniform penetration and consistent bead formation.
- High-Performance Laser & Stable Output: Utilizes a high-quality fiber laser source paired with an efficient closed-loop water cooling system. This ensures long-duration, stable laser energy output, meeting the stringent reliability demands of large-scale, high-intensity continuous production.

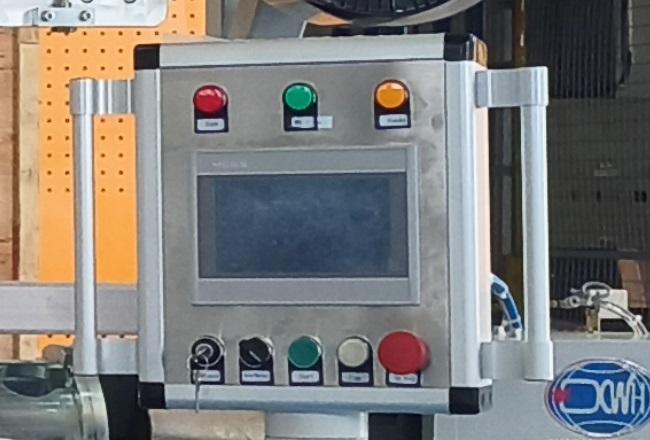

- Intelligent Full-Process Control: The smart controller precisely manages laser parameters, motion paths, and welding sequences. Integrated with multiple safety interlocks and real-time cooling monitoring, it guarantees process stability and operational safety during extended operation.
- Comprehensive Shielding Gas Protection: Features a built-in shielding gas system that creates an effective protective atmosphere over the weld zone, preventing high-temperature metal oxidation. This significantly enhances the weld seam's internal quality, corrosion resistance, and surface finish.
- Robust & Durable Industrial Chassis: Constructed with an industrial-grade, vibration-resistant, and wear-tolerant design. The chassis offers high rigidity, capable of withstanding high-frequency, prolonged continuous operation in workshop environments, ensuring long-term durability and a low failure rate for the equipment
