Slaughter Saw Blade Size: 16mm x 4 teeth/inch x 0.5mm thick
Metal Cutting Saw Blade Size: 27mm x 5/8 teeth/inch x 0.9mm thick
Woodworking Saw Blade Size: 35mm x 22mm x 1.1mm thick
Saw Blade Width: 6-80mm, saw blade thickness: 0.45-1.6mm
Aluminium Meat Bandsaw Blade Butt Welding Machine 4.75kW 3.65kW
Price:
$8,000-8,500 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
|
Item/Model
|
DN-40
|
DN-63
|
D(T)N-80
|
D(T)N-100
|
D(T)N-125
|
D(T)N-160
|
D(T)N-200
|
|
Rated power At 50%(KVA)
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
|
Rated primary power(V)
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Secondary Voltage(V)
|
5.2
|
6.7
|
7.9
|
8.3
|
8.6
|
9.1
|
10.6
|
|
Rated frequency(HZ)
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Max.Short Circuit Current(KA)
|
14
|
15
|
16
|
18
|
20
|
28
|
34
|
|
Max. weld power(KVA)
|
62
|
86
|
170
|
280
|
300
|
330
|
410
|
|
Throat(MM)
|
400
|
400
|
400
|
450
|
450
|
450
|
450
|
|
Max.Froce at electrodes(N)
|
6000
|
6000
|
10000
|
10000
|
10000
|
12000
|
12000
|
|
Working stroke(MM)
|
20
|
20
|
30
|
40
|
40
|
50
|
50
|
|
Cooling Water Consumpion 2.5bar(L/min)
|
6
|
6
|
8
|
8
|
8
|
10
|
10
|
|
Electrodes tip(MM)
|
Φ13*45
|
Φ13*45
|
Φ16*45
|
Φ16*45
|
Φ16*45
|
Φ20*45
|
Φ20*45
|
|
Arms(MM)
|
Φ50*150
|
Φ50*150
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
|
Projection Clamping Plate(MM)
|
125*125
|
125*125
|
200*200
|
200*200
|
200*200
|
200*200
|
200*200
|
|
Max.Welding Capaciry A3 steel(MM)
|
2.5+2.5
|
3+3
|
4+4
|
4.5+4.5
|
5+5
|
5+5
|
6+6
|
Product Overview

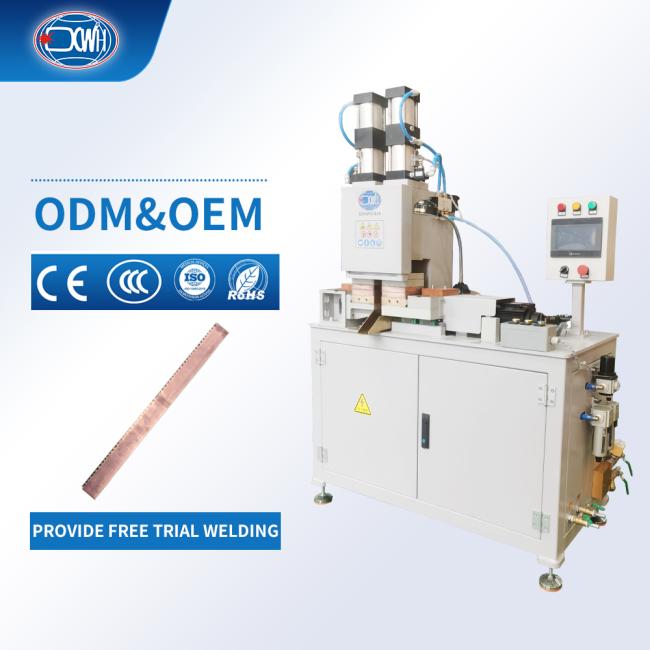

Aluminium Butt Meat Saw Blade Welding Machine
The product employs advanced flash butt welding technology, achieving high-quality welding of saw blades through the coordinated operation of core components such as the mainframe, pneumatic transmission mechanism, secondary circuit, welding transformer, and welding controller. The user-friendly human-machine interface design facilitates rapid operator mastery of the equipment. The transparent protective cover effectively prevents spark splatter during the welding process, enhancing on-site operational safety. The equipment supports butt welding of saw blades with varying cross-sectional areas, accommodating multiple saw blade specifications to meet welding requirements across diverse industries.
1. Highly integrated functionality, reducing peripheral equipment investment: The equipment integrates core functional modules such as the host rack, pneumatic system, welding transformer, secondary circuit, welding controller, and water and gas system into one, without the need for additional external power cabinets, cooling devices, and other peripheral equipment, reducing initial investment and site occupation for users.
2. Semi automated design effectively reduces labor costs: By adopting a manual loading and unloading and automatic welding operation mode, one operator can complete the entire process of equipment operation without the need for dedicated welders, reducing reliance on highly skilled welding personnel and significantly reducing labor costs while ensuring welding quality.
3. Standardized design of vulnerable parts, convenient and efficient maintenance: electrodes, cylinder seals, filter cartridges and other vulnerable parts are all designed with standardization and universality, ensuring smooth procurement channels and easy replacement operations. Ordinary maintenance personnel can complete daily maintenance and vulnerable part replacement with simple training, minimizing equipment downtime.
4. Reasonable energy consumption control and controllable long-term operating costs: Low loss design of secondary circuits and optimized matching of transformers effectively reduce energy consumption during the welding process; The pneumatic system adopts energy-saving control logic to reduce compressed air waste; The comprehensive energy consumption has significant advantages over similar products, and long-term use can save considerable operating costs.
5. One machine for multiple uses, maximizing equipment utilization: One device can cover the welding needs of multiple industries and specifications of saw blades, such as slaughter, woodworking, and metal cutting. The width covers 6-80mm, the thickness covers 0.45-1.6mm, and supports irregular docking of different cross-sectional areas. With high equipment utilization and short investment return cycle, it is an ideal choice for saw blade manufacturing and maintenance enterprises.
Detail Images

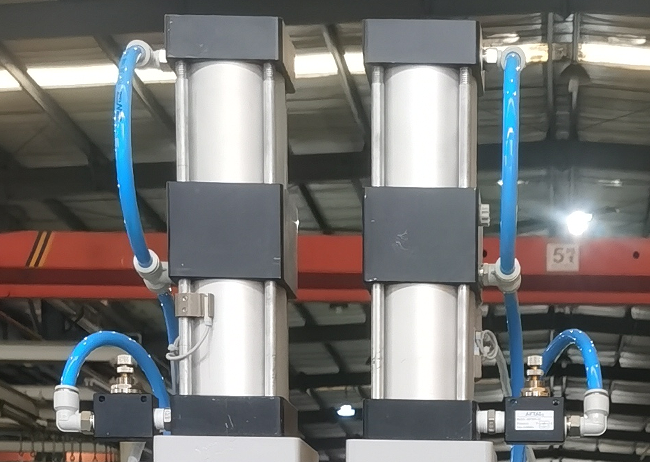

Double-layer Cylinder
Provides graded clamping and forging force. Through a double-layer piston structure, a "light first, heavy later" pressure output is achieved - light pressure is used for rapid feed and positioning, while heavy pressure is used for strong forging at the welding terminal to ensure a dense weld seam and avoid impact damage to thin saw blades.

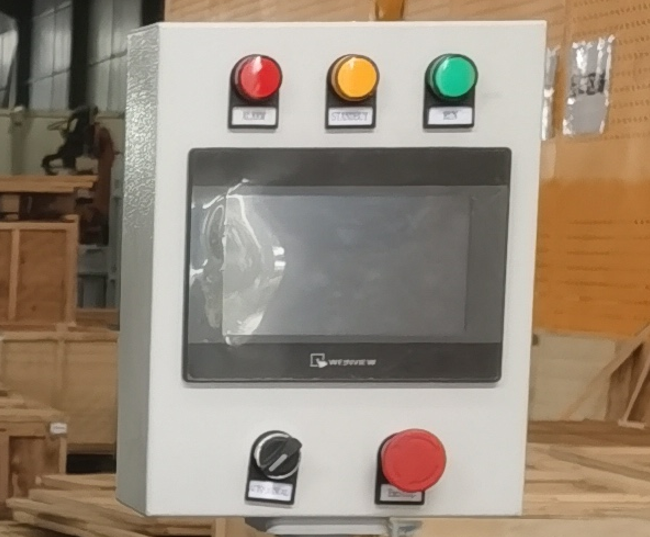

Human Computer Interaction Interface
Implement information exchange between devices and operators. Used for setting and modifying welding parameters, storing and calling multi specification saw blade formulas, real-time monitoring of equipment operation status, and displaying and prompting fault alarm information, making the operation more intuitive and convenient.
Copper Alloy Electrode
Made of high-quality chromium zirconium copper, it offers excellent conductivity and wear resistance. The internal cooling channel ensures efficient heat dissipation, delivering stable and reliable performance for both fixed and moving electrodes.

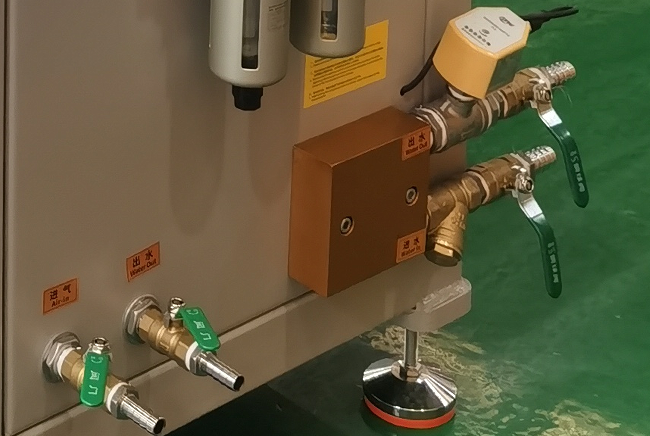

Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

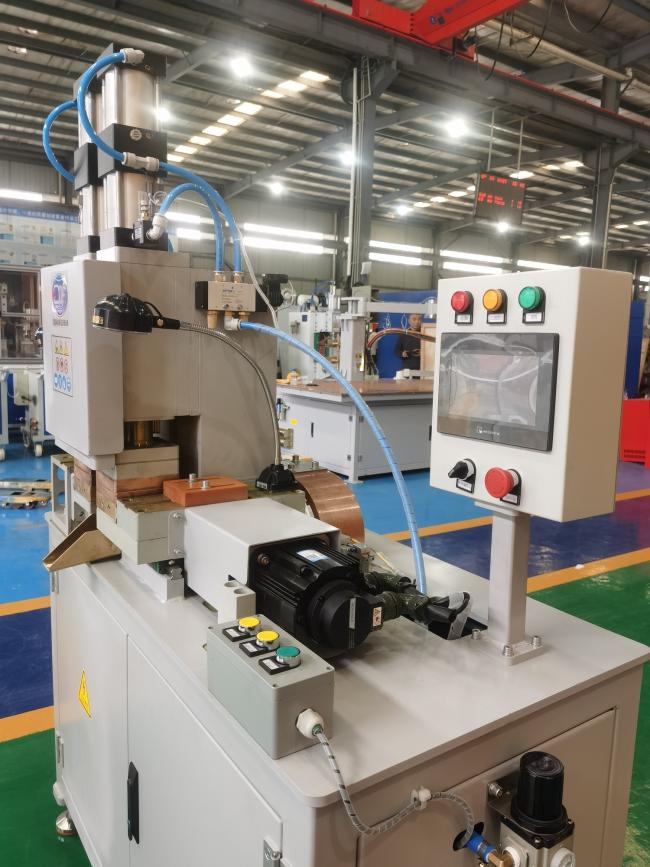

General Strctures
Scene images
Our factory can customize according to your requirments. More details, please contact!
Welding Test
Welding Workpiece
Similar Products

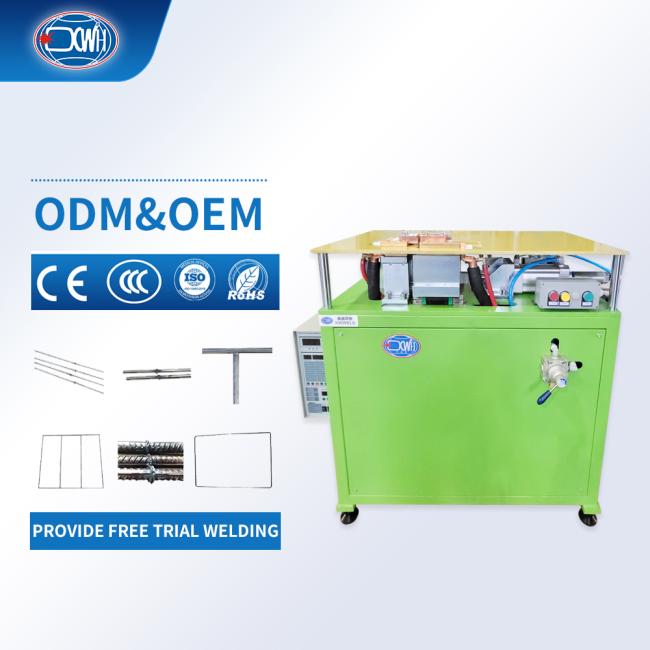

Wire/Rebar Butt Welding Machine
