Manufacturer of QS-D-C 700-800mm Parallel Robot for Industrial Automation without cumulative error

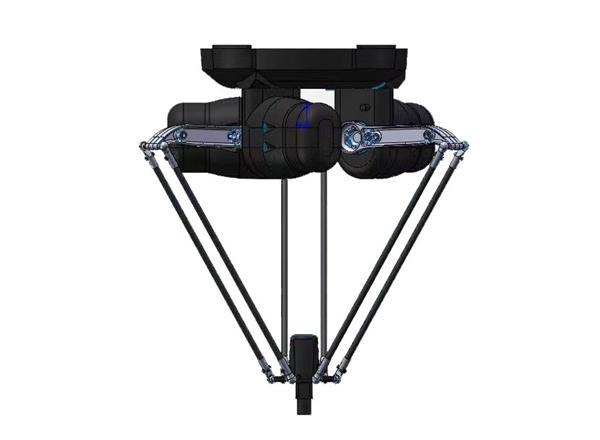

Classic high-speed delta robot configuration featuring translational movement along the XYZ axes in three-dimensional space. This robot is ideal for high-speed production operations in industries such as food and medicines, primarily used for rapid handling and sorting of light,small, scattered material,etc..
| Model | Number of Axes | Rated load | Working stroke range | Repeated position precision |
| OS-D-A-700 | 3/4 | 3KG/5KG | 700 | ±0.1mm |
| OS-D-A-800 | 3/4 | 3KG/5KG | 800 | ±0.1mm |
|

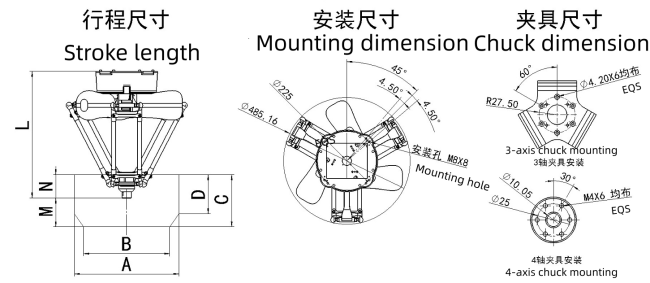

Working |
Model | OY-D-S-700 | OY-D-S-800 |
| L | 986 | 1103 | |
| M | 151 | 163 | |
| N | 123 | 132 | |
| A | 764 | 858 | |
| B | 724 | 813 | |
| C | 274 | 295 | |
| D | 191 | 206 |
| Positional repeatability |
±0.1mm |
±0.1mm |
|||||||
|
Driving motor type |
Absolute value servo motor |
||||||||
|
Different load(KG) Cycle time(25/300/25) |
0.5 |
1 |
2 |
3.5 |
0.5 |
1.5 |
2 |
3 |
|
|
0.35 |
0.42 |
0.57 |
0.62 |
0.3 |
0.45 |
0.56 |
0.65 |
||
|
Total power/Voltage |
2.25KW( 3 axes),2.3KW(4 axes) / 220V Single phase |
||||||||
|
Working weight of Whole machine |
55KG |
||||||||
|
IP grade |
IP54 |
||||||||
- Standard cycle time of 0.6 seconds, meeting demands for high speed and most ecomomical demand
- Easy to fulfil high-strength & high-frequency movement requirement
- Highly suitable for fast assembly, handling and sorting of light,small, scattered material,etc..
- Compact structure, high rigidity and high load capacity. The perfectly symmetric parallel mechanism has good isotropy. Small workspace.
