The antenna is ideally suited for precision agriculture, self-driving vehicle tracking and guidance, and other applications where accuracy is critical. The antenna has excellent multipath signal rejection, linear phase response, and tight phase center variation.
GNSS GPS RTK L1 L2 L5 Suitable for Industrial Mapping, Smart Agricultural, Driverless Car Centimeter-level Positioning Antennas
Price:
$25-33
MOQ:
100
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description
Products Description

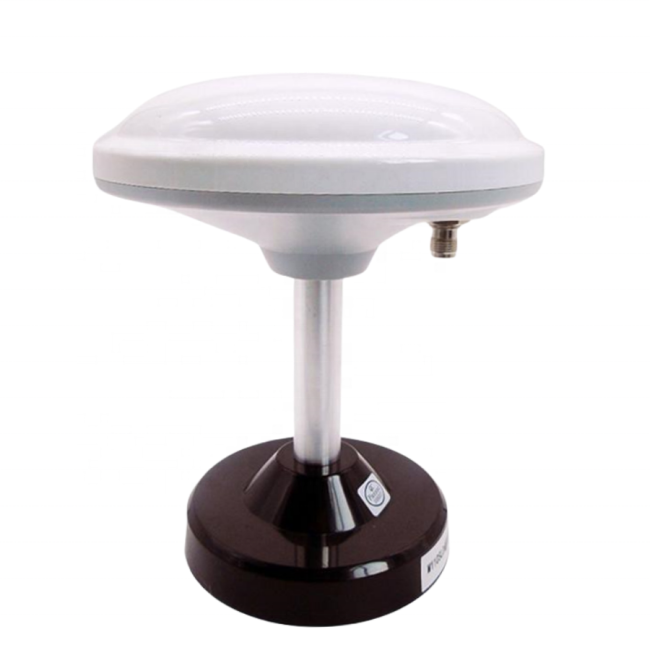

L1 L2 L5 Tri-Band GNSS Antenna + L Band
It covers tri-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo- El/E5a/E5b/E6, BeiDou-B1/B2/B3, as well as L-band correction services. It is designed for precise tri-band positioning.
Applications
- Autonomous Vehicle Tracking and Guidance
- Positive Train Control (PTC)
- Positive Train Location (PTL)
- GNSS Precision Positioning
- Precision agriculture
- Tri-band RTK and PPP receivers
- Law enforcement and public safety
Benefits
- Excellent interference suppression
- Excellent multipath rejection
- Higher system accuracy
- Excellent signal-to-noise ratio
- Fast satellite reception speed

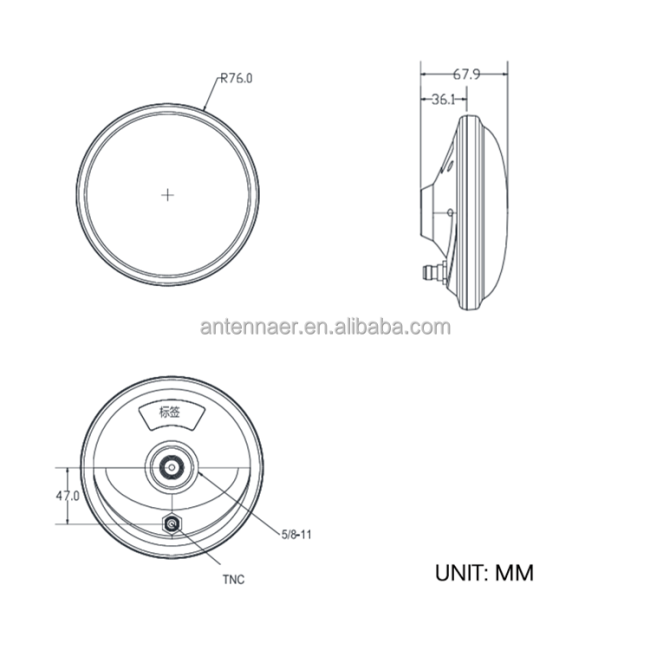

Structural Dimensions & Performance Diagrams
( Accept OEM/ODM)
Product Parameters & Customizable Range
|
ANTENNA
|
|
|
|

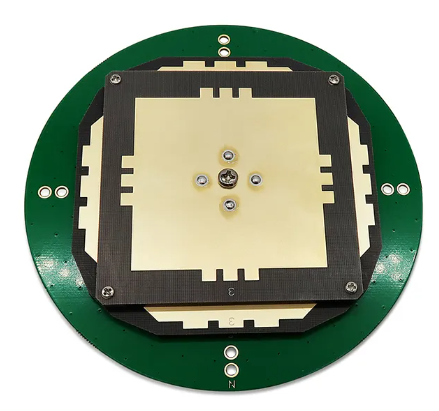

Patch Architecture
|
Dual Four-point-feed
|
|
|
Supported positioning signal bands
|
GPS:L1/L2/L5;
|
|
|
|
BDS:B1/B2/B3;
|
|
|
|
GLONASS:G1/G2/G3;
|
|
|
|
Galileo:El/E5a/E5b/E6
|
|
|
Peak Gain*
|
≥5.0dBi@Fc
|
|
|
Polarization
|
RHCP
|
|
|
Axial Ratio@zenith
|
≤ 1.5dB
|
|
|
Azimuth Coverage
|
360°
|
|
|
Impedance
|
50 ohm
|
|
|
Phase-center accuracy
|
≤2.0mm
|
|
|
Phase-center repeatability
|
≤ 1.0mm
|
|
|
LNA
|
|
|
|
Frequency Range
|
1170MHz~1290MHz
|
|
|
|
1559MHz~1605MHz
|
|
|
LNA Gain*
|
40±2.0dB (Typ. @25°C)
|
|
|
Group Delay variation
|
≤ 15ns
|
|
|
Noise Figure*
|
≤2 0 dB@25°C , Typ (Pre-filtered)
|
|
|
Output VSWR
|
≤ 1.8:1 typ. 2.0:1max
|
|
|
Operation Voltage
|
3.0~ 16V DC
|
|
|
Operation Current
|
≈45mA
|
|
|
MECHANICALS & ENVIRONMENTAL
|
|
|
|
Dimension
|
Φ152mm*67.9mm
|
|
|
Connector
|
TNC ( Female)
|
|
|
Radome
|
PC+PBT
|
|
|
Weight
|
≈350g
|
|
|
Operating Temp
|
－40℃~＋85℃
|
|
|
Storage Temp
|
－45℃~＋85℃
|
|
|
Humidity
|
95% No-condensing
|
|
|
Waterproof
|
IP67
|
|
