AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
MOQ:
3
Delivery Time:
10-15days
Brand:
RIDA Antennaer
Product Description
Competitive price Driverless car Gnss external high precision antenna RTK ranging antenna Customization scope:Antenna Performance, Appearance, Cable length, Connector type
Products Description
Product Parameters & Customizable Range
|
Electrical Specifications
|
|
|
|
Support satellite signal
|
BDS:B1,B2,B3;
GPS:L1,L2,L5; GLONASS:G1,G2,G3; Galileo:El,E2,E5a,E5b,E6 ,L-band |
|
|
|
|
|
|
|
|
|
|
Frequency
|
1154MHz~1300MHz;1551MHz~1615MHz
|
|
|
Impedance matching
|
50 Ω
|
|
|
Polarization mode
|
Right circular polarization
|
|
|
Axial ratio
|
≤3dB
|
|
|
Horizontal coverage angle
|
360°
|
|
|
Phase center error
|
≤2.0mm
|
|
|
Gain
|
40±2dB
|
|
|
Noise Figure
|
≤1.5dB
|
|
|
Output V.S.W.R
|
<2.0:1
|
|
|
In-band flatness
|
±2dB
|
|
|
Front to back Power (dB)
|
±60°≥15
|
|
|
DC Voltage (V)
|
3.3～18
|
|
|
Current (mA)
|
<45
|
|
|

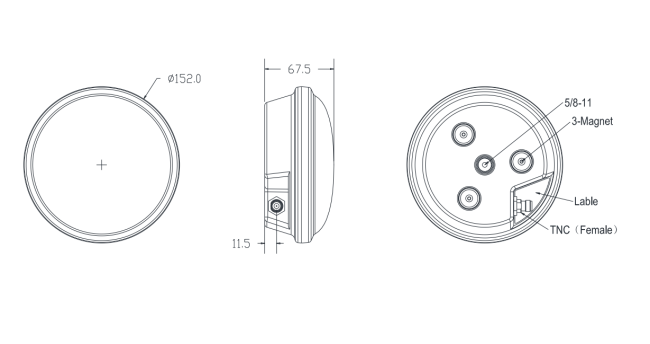

Mechanical Specifications
|
|
|
|
Connector Type
|
TNC-K
|
|
|
Dimensions(mm)
|
Φ147×62 mm Φ160*62mm
|
|
|
Relative Humidity
|
90%
|
|
|
Operating Temperature (℃)
|
-40 ~ +70℃
|
|
|
Weight(kg)
|
＜0.46
|
|
|
Storage Temperature (℃)
|
-55℃～+85℃
|
|
|
Operation Environment
|
Outdoor
|
|
