3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
Price:
€4.29-5.16
MOQ:
2
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description

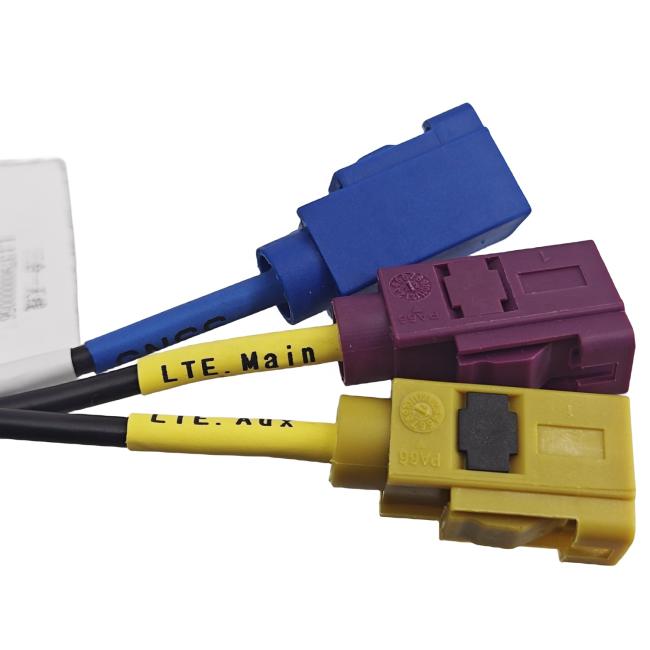

2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Combo Vehicle Antenna Car T-BOX 3in1 Combination Antenna Customization scope:Antenna Performance,Appearance style, Cable length, Connector type
Products Description
|
GPS / LTE / WIFI 3 IN 1 ANTENNA
|
|
|
|
Center Frequency
|
1575.42MHz±3 MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±5 MHz
|
|
|
Attenuation
|
fo±100MHz>30dB
|
|
|
Impendence
|
50 Ω
|
|
|
Peak Gain
|
>3dBic, Based on 7×7cm ground plane
|
|
|
Gain Coverage
|
>-4dBic at –90°<0<+90°(over 75% Volume)
|
|
|
Polarization
|
Right-handed Circular(RHCP)
|
|
|
GPS LNA Specifications
|
|
|
|
LNA Gain(Without cable)
|
28dBi
|
|
|
Noise Figure
|
1.5dB
|
|
|
V.S.W.R
|
<1.65
|
|
|
DC Voltage
|
2.7V-5.0V±0.5V
|
|
|
DC current
|
15mA Max(5V DC)
|
|
|
LTE Specifications
|
|
|
|
Frequency Range
|
698-2700MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±90/280 MHz
|
|
|
Gain
|
3.0dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
|
WIFI specifications
|
|
|
|
Frequency Range
|
2300-2500MHZ
|
|
|
V.S.W.R
|
1.5:1
|
|
|
Band Width
|
±100 MHz
|
|
|
Gain
|
2.15dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
