Omni-Directional Waterproof 3-in-1 MIMO Combo Antenna for Outdoor FAKRA IP67 4G 5G GNSS GPS WIFI BT 2.4G 5.8G 4G 5G GNSS GPS
Price:
$3.70-4.50
MOQ:
50
Delivery Time:
10-15days
Brand:
RIDA Antennaer
Product Description
Products Description
This is an all-in-one GPS, 4G and WIFI combo antenna designed for intelligent telematics automotive-grade devices. The antenna's combination function can be customized based on actual needs, enabling the equipment to provide data acquisition, remote control, security services, and other functionalitie

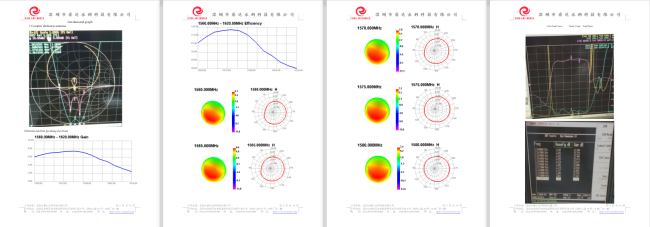

We can provide detailed test reports to ensure antenna performance. S11 reflection parameters, pointing test charts, LNA test curves, LNA gain, noise plots, etc.

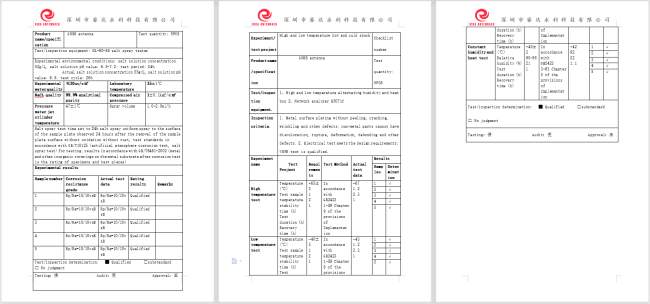

Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)
Product Parameters
|
GPS / LTE / WIFI 3 IN 1 ANTENNA
|
|
|
|
Center Frequency
|
1575.42MHz ± 15 MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±5 MHz
|
|
|
Attenuation
|
fo±100MHz>30dB
|
|
|
Impendence
|
50 Ω
|
|
|
Peak Gain
|
>3dBic, Based on 7×7cm ground plane
|
|
|
Gain Coverage
|
>-4dBic at –90°<0<+90°(over 75% Volume)
|
|
|
Polarization
|
Right-handed Circular(RHCP)
|
|
|
GPS LNA Specifications
|
|
|
|
LNA Gain(Without cable)
|
28dBi ± 2
|
|
|
Noise Figure
|
1.5dB
|
|
|
V.S.W.R
|
<1.65
|
|
|
DC Voltage
|
2.7V-5.0V±0.5V
|
|
|
DC current
|
15mA Max(5V DC)
|
|
|
LTE Specifications
|
|
|
|
Frequency Range
|
698-2700MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±90/280 MHz
|
|
|
Gain
|
3.0dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
|
WIFI specifications
|
|
|
|
Frequency Range
|
2300-2500MHZ/5700-5900MHZ
|
|
|
V.S.W.R
|
1.5:1
|
|
|
Band Width
|
±100 MHz
|
|
|
Gain
|
2-3dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
