GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
Price:
$2.50-3.20
MOQ:
100
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description

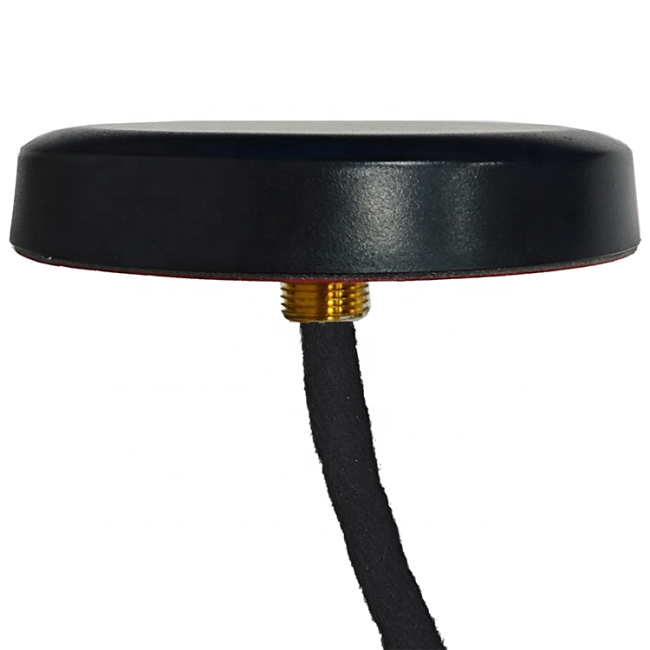

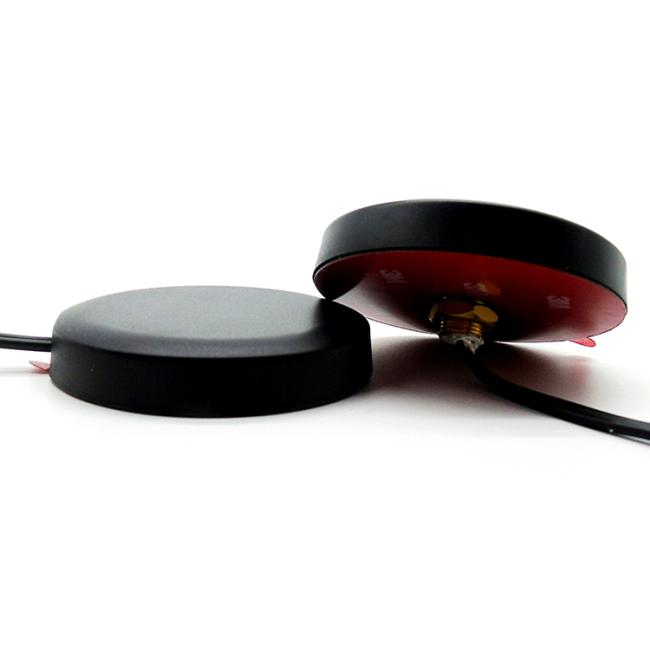

GPS 4G 5G LTE WIFI 2.4G 5.8G 2 In 1 Combination Disk-puck Mimo Antenna Machine To Machine Antenna
Customization scope：Antenna Performance,Appearance style, Appearance color, Cable length, Connector type
Click here tell me your needs ， We customize the antenna for you !
Products Description
Product Parameters
Center Frequency | 1575.42±1MHz / 2.4GHz / 5.8GHz / 698-2700MHz |
Band Width | CF±5MHz |
Polarization | RHCP |
Gain | 3dBic |
V.S.W.R | <1.5 |
Impendance | 50Ω |
Axial Ratio | 3dB |

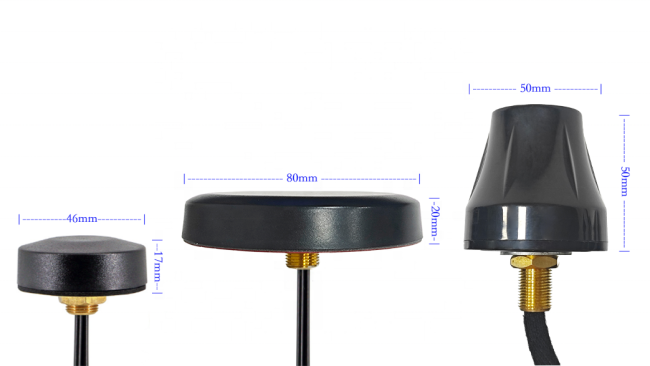

Dimension | 20*80mm / 17*46mm |
LNA Gain | 28±2dB |
Noise Figure | <1.5 |
Filter Insertion Loss | <3dB |
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz |
Supply Voltage | 2.2~5V DC |
Current Consumption | 10~26mA |
V.S.W.R | <2.0 |
Cable | RG174 |
Connector | as requirement |
Radome Material | ABS |
Mounting Method | Magnet |
Operating Temperature | -40°C~+85°C |
Relative Humidity | Up to 95% |
Ingress Protection | IP67 |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Company Profile
Shenzhen Ruida Yongli Technology Co., Ltd.（RIDA Antennaer） has focused on producing high quality antennas for 11 years, won the national high-tech enterprise certificate, and has a number of antenna patents.Our main products are GNSS/GPS/ GLONASS positioning antennas, WIFI/GSM/5G/4G communication antennas, combo antennas, and the connectors used for them.

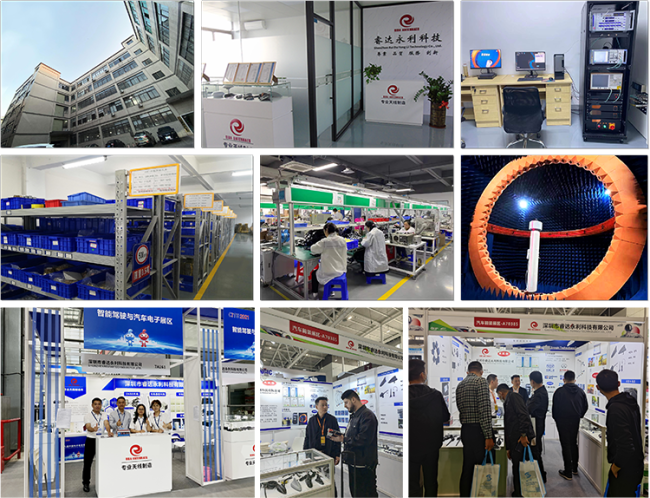

We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
Company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 square meters.
Why Choose Us
So far, we have many patents, and we were awarded as a high-tech enterprise by Shenzhen in 2021.We have passed IATF 16949, ISO9001 certification. And our products meet the requirements of CE, ROHS, RED, REACH, WEEE certification.
We have more than 100 partners and our business covers automotive positioning and navigation, communication towers, drones and industrial robots, industrial mapping, and high precision positioning.
Payment & Shipping & Packaging & Warehouse
More Product
FAQ
Q1: Can I get one sample?
A: Yes, we can provide free samples if they are our finished products, you only need to pay for shipping. However, for custom samples, a sample fee will be charged.
Q2: Are you a manufacturer or a trading company?
A: We have been manufacturing antennas for 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days.
Q5: How long is your after-sales service?
A: We provide one year quality warranty.
A: Yes, we can provide free samples if they are our finished products, you only need to pay for shipping. However, for custom samples, a sample fee will be charged.
Q2: Are you a manufacturer or a trading company?
A: We have been manufacturing antennas for 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days.
Q5: How long is your after-sales service?
A: We provide one year quality warranty.
