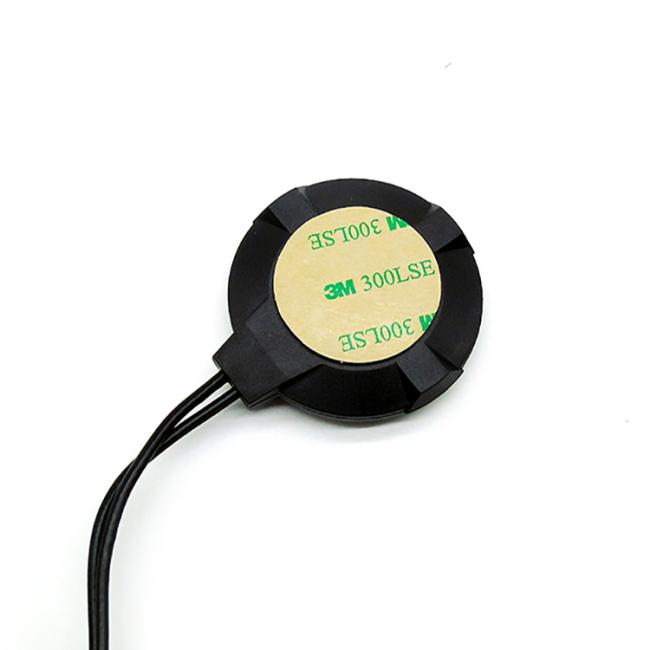

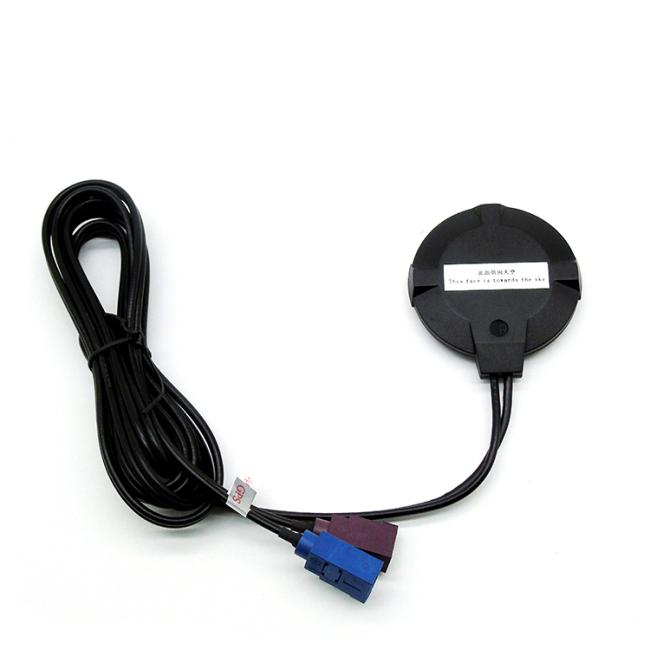

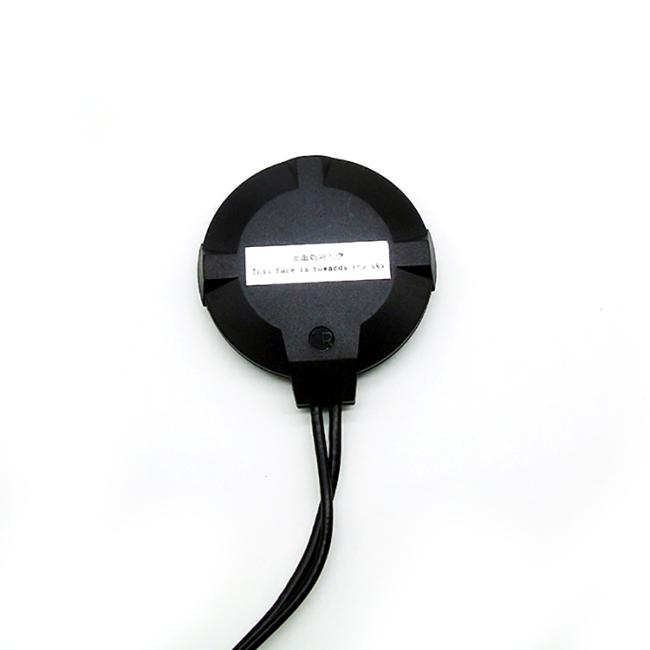

Customized Adhesive Mount Combo 698-2700 MHz Fakra External Mino Mobile/GNSS/4G/5G/WI-FI Roof Antenna 28dBi Gain <1.5 VSWR
MOQ:
500
Delivery Time:
10-15days
Brand:
RIDA Antennaer
Product Description
Products Description
Product Parameters
|
GNSS specifications
|
|
|
|
Center Frequency *
|
1575.42MHz±3 MHz / 1561MHz / 1602MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±5 MHz
|
|
|
Attenuation
|
fo±100MHz>30dB
|
|
|
Impendence
|
50 Ω
|
|
|
Peak Gain
|
>3dBic, Based on 7×7cm ground plane
|
|
|
Gain Coverage
|
>-4dBic at –90°<0<+90°(over 75% Volume)
|
|
|
Polarization
|
Right-handed Circular(RHCP)
|
|
|
LNA Gain(Without cable) *
|
28dBi
|
|
|
Noise Figure
|
1.5dB
|
|
|
V.S.W.R
|
<1.65
|
|
|
DC Voltage
|
2.7V-5.0V±0.5V
|
|
|
DC current
|
15mA Max(5V DC)
|
|
|
2G/3G/4G/5G specifications
|
|
|
|
Frequency Range *
|
600-6000MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±90/280 MHz
|
|
|
Gain *
|
3.0dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
|
2.4/5.8Ghz WIFI specifications
|
|
|
|
Frequency Range *
|
2300-2500/5700-5900MHZ
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±100 MHz
|
|
|
Gain *
|
3.0dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|

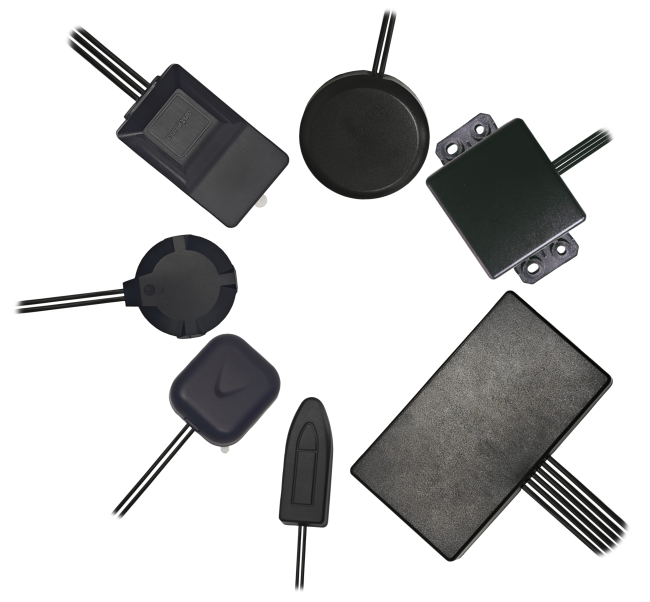

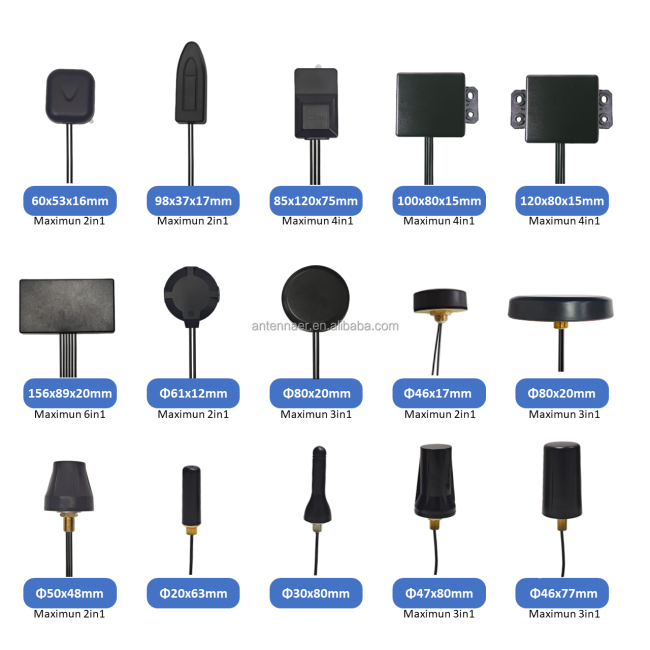

Similar Products
