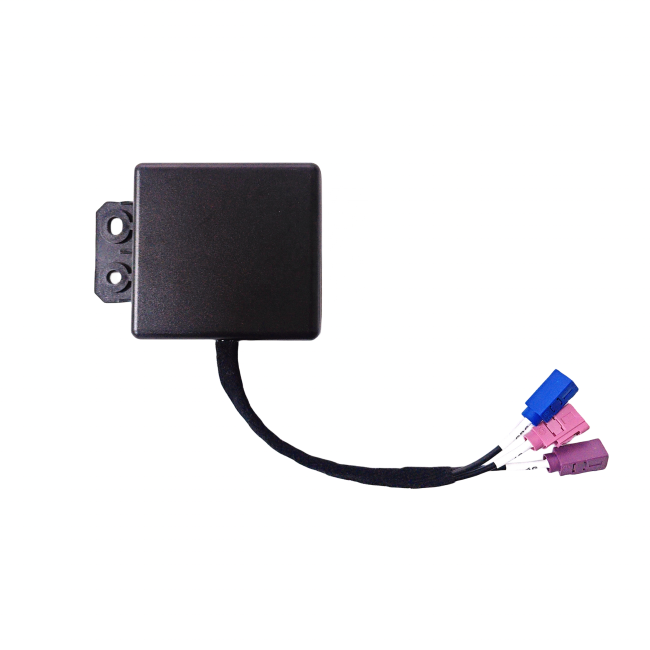

RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50 <1.5 VSWR Screw Hole
MOQ:
2
Delivery Time:
10-15days
Brand:
RIDA Antennaer
Product Description
Customizable Range: Antenna Performance, Appearance, Cable length, Connector type
Products Description
Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)
Product Parameters
|
GPS+GSM+WIFI 3 IN 1 ANTENNA
|
|
|
|
Center Frequency
|
1575.42MHz±3 MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±5 MHz
|
|
|
Attenuation
|
fo±100MHz>30dB
|
|
|
Impendence
|
50 Ω
|
|
|
Peak Gain
|
>3dBic, Based on 7×7cm ground plane
|
|
|
Gain Coverage
|
>-4dBic at –90°<0<+90°(over 75% Volume)
|
|
|
Polarization
|
Right-handed Circular(RHCP)
|
|
|
GPS LNA Specifications
|
|
|
|
LNA Gain(Without cable)
|
28dB Typical
|
|
|
Noise Figure
|
1.5dB
|
|
|
V.S.W.R
|
<1.65
|
|
|
DC Voltage
|
2.7V-5.0V±0.5V
|
|
|
DC current
|
15mA Max(5V DC)
|
|
|
LTE Specifications
|
|
|
|
Frequency Range
|
698-2700MHz
|
|
|
V.S.W.R
|
<1.5
|
|
|
Band Width
|
±90/280 MHz
|
|
|
Gain
|
3.0dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
|
WIFI Specifications
|
|
|
|
Frequency Range
|
2300-2500MHZ
|
|
|
V.S.W.R
|
1.5:1
|
|
|
Band Width
|
±100 MHz
|
|
|
Gain
|
2.15dBi
|
|
|
Polarization
|
Vertical
|
|
|
Radiation
|
Omni directional
|
|
|
Max Input power(W)
|
50 W
|
|
|
Impendence
|
50 Ω
|
|
