GPS 4G LTE MIMO 5G WIFI New Energy Vehicle Smart Center Control Telematics Customized Connector Connected Car Combo Antennas
Price:
$2.80-4
MOQ:
50
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description

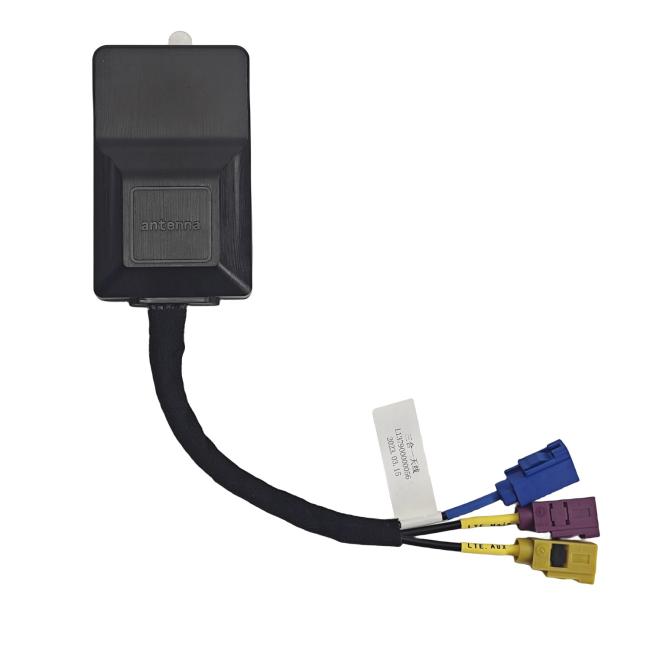

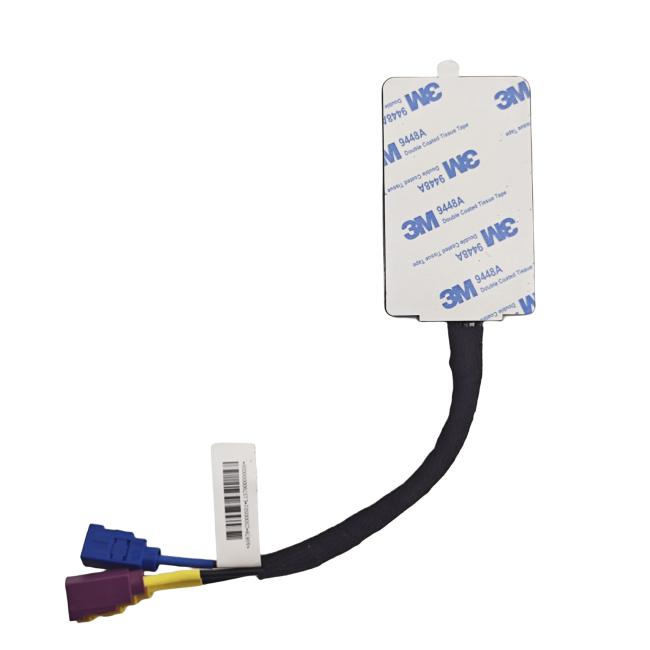

GPS 4G LTE MIMO 5G WIFI New Energy Vehicle Smart Center Control Telematics Connected Car Combo Antennas
Customization scope:Antenna Performance,Appearance style, Cable length, Connector type
Click here tell me your needs , We customize the antenna for you !
Products Description
Antenna Overview
GPS 4G WIFI all-in-one combination antenna for Telematics intelligent vehicle terminal equipment. The antenna combination function can be customized according to the actual demand, assisting the equipment to provide data acquisition, remote control, security services and other functions.
Product Parameters
GPS / LTE / WIFI 3 IN 1 ANTENNA | ||
Center Frequency | 1575.42MHz±3 MHz | |
V.S.W.R | <1.5 | |
Band Width | ±5 MHz | |
Attenuation | fo±100MHz>30dB | |
Impendence | 50 Ω | |
Peak Gain | >3dBic, Based on 7×7cm ground plane | |
Gain Coverage | >-4dBic at –90°<0<+90°(over 75% Volume) | |
Polarization | Right-handed Circular(RHCP) | |
GPS LNA specifications | ||
LNA Gain(Without cable) | 28dBi | |
Noise Figure | 1.5dB | |
V.S.W.R | <1.65 | |
DC Voltage | 2.7V-5.0V±0.5V | |
DC current | 15mA Max(5V DC) | |
LTE specifications | ||
Frequency Range | 698-2700MHz | |
V.S.W.R | <1.5 | |
Band Width | ±90/280 MHz | |
Gain | 3.0 - 5.0dBi | |
Polarization | Vertical | |
Radiation | Omni directional | |
Max Input power(W) | 50 W | |
Impendence | 50 Ω | |
WIFI specifications | ||
Frequency Range | 2300-2500MHZ | |
V.S.W.R | 1.5:1 | |
Band Width | ±100 MHz | |
Gain | 3.0 - 5.0dBi | |
Polarization | Vertical | |
Radiation | Omni directional | |
Max Input power(W) | 50 W | |
Impendence | 50 Ω | |
Company Profile
Shenzhen Ruida Yongli Technology Co., Ltd.(RIDA Antennaer) has focused on producing high quality antennas for 11 years, won the national high-tech enterprise certificate, and has a number of antenna patents.Our main products are GNSS/GPS/ GLONASS positioning antennas, WIFI/GSM/5G/4G communication antennas, combo antennas, and the connectors used for them.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
Company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 ㎡.
Why Choose Us
From consultation to after-sales, we have professional antenna engineers to solve your problems throughout the whole process. And we have a one year warranty and can repair for the whole life.
So far, we have many patents, and we were awarded as a high-tech enterprise by Shenzhen in 2021.
We have passed IATF 16949, ISO9001 certification. And our products meet the requirements of CE, ROHS, RED, REACH, WEEE certification.
We have more than 100 partners and our business covers automotive positioning and navigation, communication towers, drones and industrial robots, industrial mapping, and high precision positioning.
Payment & Shipping & Packaging & Warehouse
More Product
FAQ
Q1: Can I get one sample?
A: Yes, sample is for free.
Q2: Are you a manufacturer or a trading company?
A: We have our own factory, not a trading company or cooperative factory, and we have been manufacturing antennas for over 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days
A: Yes, sample is for free.
Q2: Are you a manufacturer or a trading company?
A: We have our own factory, not a trading company or cooperative factory, and we have been manufacturing antennas for over 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days
Q5: Are all your antennas in stock?
A: No, our antennas are custom made to order.
Q6: How long is your after-sales service?
A: We provide one year quality warranty.
Q6: How long is your after-sales service?
A: We provide one year quality warranty.
