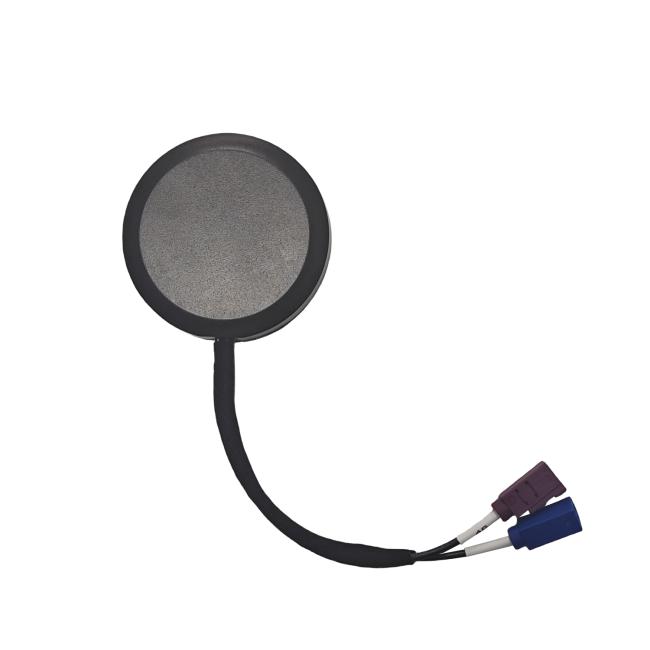

Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Price:
$3.50-5
MOQ:
10
Delivery Time:
Negotiable
Brand:
RIDA Antennaer
Product Description
Products Description
· FEATURES
- Active GPS with integrated LNA
- 2G/3G/4G band support
- Circular polarization
- Adhesive or Magnetic mounting
· APPLICATIONS
- Telematics
- Smart meter
- Transportation
- Remote monitoring
- IoT
- M2M
- Smart meter
- Transportation
- Remote monitoring
- IoT
- M2M
· OPTIONS
- Combined function type
- Cable Length

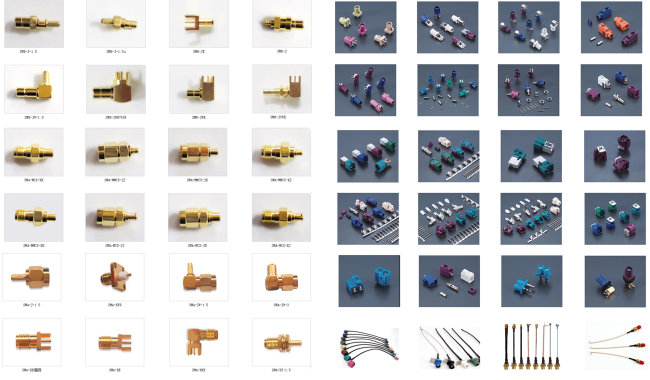

- Connectors
- Connectors
Product Parameters
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz | |
Band Width | CF±5MHz | |||
Polarization | RHCP | |||
Gain | 2dBic | |||
V.S.W.R | <1.5 | |||
Impendance | 50Ω | |||
Axial Ratio | 3dB | |||
LNA | Gain | 28±2dB | ||
Noise Figure | <1.5 | |||
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |||
V.S.W.R | <2 | |||
Supply Voltage | 2.2~5V DC | |||
Current Consumption | 5~15mA | |||
LTE Antenna | Frequency Range | 698 ~ 960 / 1710 ~ 2700MHz | ||
V.S.W.R | <2 | |||
Polarization | Linear | |||
Gain | 3 dBi | |||
Impendance | 50Ω | |||

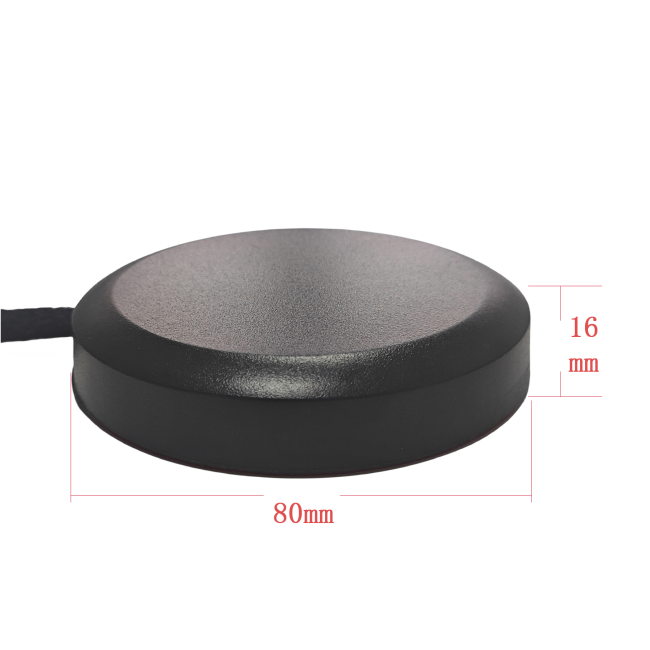

Mechanical | Cable | RG174 | ||
Connector | FAKRA/SMA/MCX/ or others | |||
Material | ABS | |||
Mounting Method | Magnetic/Adhesive | |||
Environmental | Operating Temperature | -40℃~+85℃ | ||
Relative Humidity | Up to 95% | |||
Ingress Protection | IP65~IP67 (exclude cable outlet) | |||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |||
Environmentally Friendly | ROHS Compliant | |||
Company Profile

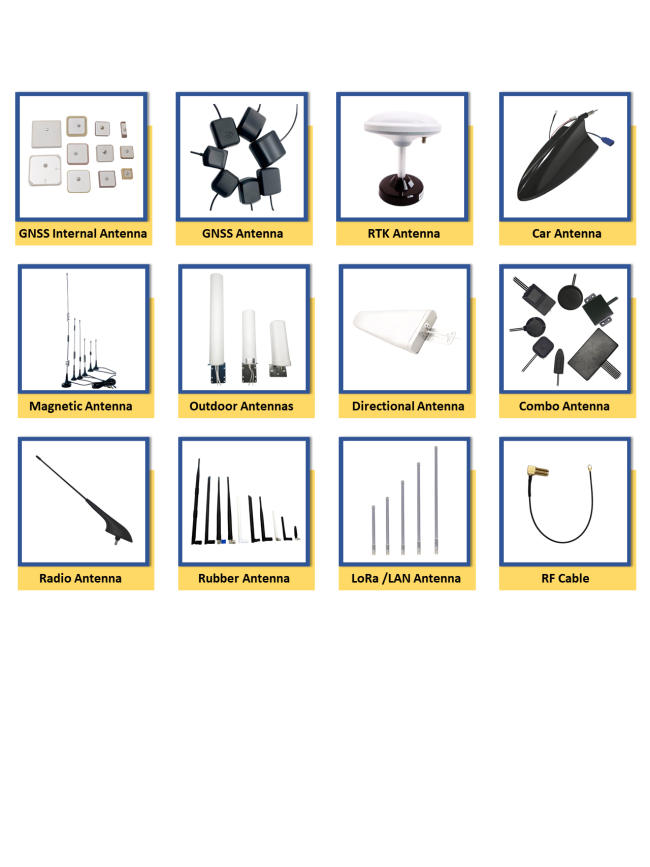

More Product
