Automatic Top and Side Labeling Machine Dual Position Label Applicator for Packaging Automation

Flexible Dual Surface Labeling System for Multiple Product Types

The TOVOT Automatic Top and Side Labeling Machine is designed for products requiring labels on two different surfaces. The system combines top and side labeling functions in one compact structure, providing accurate application for cartons, boxes, flat packages, and various industrial products.

With independent adjustment of labeling heads and synchronized conveyor control, the machine can handle different product dimensions while maintaining stable labeling quality. It is suitable for production environments where product appearance, identification, and labeling consistency are important.

The flexible configuration allows installation on new production lines or upgrading of existing conveyor systems.

Dual Surface Labeling for Efficient Production

Many products require labels on multiple positions to improve visibility and identification. Traditional manual application requires repeated positioning and increases operation time.

The automatic top and side labeling machine completes two labeling processes in one pass. Products enter the labeling area once and receive labels on different surfaces automatically.

This design reduces manual handling, improves production flow, and creates a cleaner automated production process.

Machine Design Highlights

Independent Labeling Adjustment

The top and side labeling units can be adjusted separately according to product size and label position.

Operators can quickly set labeling parameters for different products without major mechanical changes.

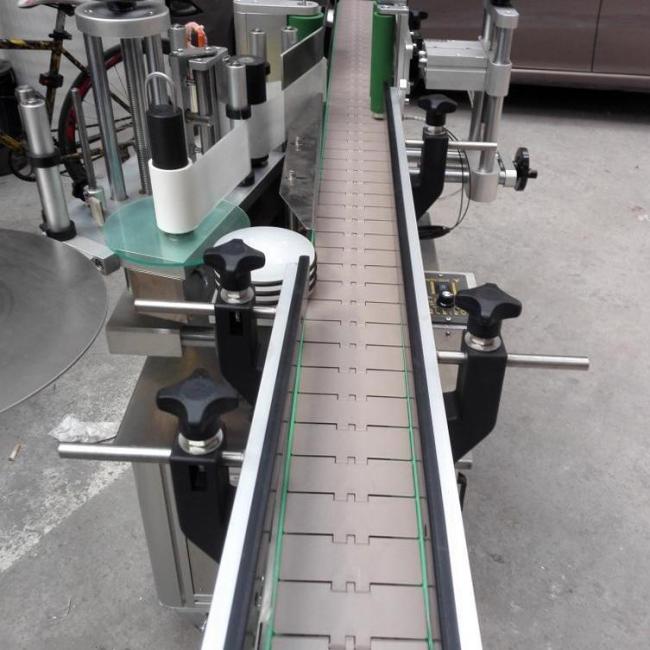

Synchronized Product Transfer

The conveyor system maintains stable product spacing during movement.

The labeling heads work together with product detection sensors to ensure accurate timing and smooth label application.

Flexible Production Integration

The machine can be installed before or after packaging equipment according to production requirements.

Its modular design allows connection with conveyors, inspection systems, printing modules, and other automation equipment.

Operating Process

Products enter the conveyor area and move toward the labeling station.

The detection system identifies product position and activates the labeling sequence.

The first labeling unit applies the top label, while the second unit completes side labeling during the same conveying process.

After completion, products continue automatically to the next working station.

The entire process runs continuously with stable product spacing and controlled labeling accuracy.

Main Features

Dual surface automatic labeling

Top and side label application

Independent labeling head adjustment

Stable conveyor positioning

Automatic product detection

Suitable for different product heights

Quick product changeover

Support customized labeling positions

Compact machine structure

Integration with automatic production lines

Technical Specifications

Optional Configurations

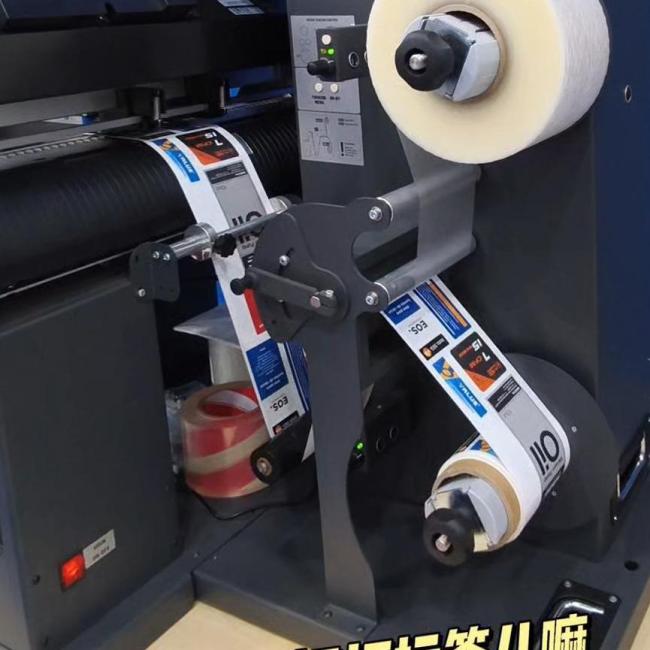

Automatic label rewinding system

Printing module integration

Barcode and QR code application

Product positioning device

Multiple label stations

Automatic counting function

Reject mechanism

Customized conveyor section

Applications

Cartons

Boxes

Flat Packages

Panels

Boards

Building Material Products

Paper Packages

Plastic Products

Wood Products

Warehouse Packages

Logistics Packages

Automatic Production Lines

FAQ

Q: What is the advantage of dual surface labeling?

A: The machine completes two labeling actions during one product transfer, reducing handling steps and improving production efficiency.

Q: Can the top and side labeling units work independently?

A: Yes. Each labeling head can be adjusted separately according to product size and labeling requirements.

Q: Does the machine support different product specifications?

A: Yes. The conveyor width, labeling height, and operating parameters can be customized for different products.

Q: Can this machine connect with other automation equipment?

A: Yes. It can be integrated with conveyors, printing modules, inspection systems, and packaging equipment.

Q: How long does product changeover take?

A: Changeover time depends on product differences, but the machine is designed with adjustable structures to simplify setup.
