Multi Layer Plywood Arc Bending Machine For High Strength Curved Components UL Certified

Introducing our Fully Automatic Multi-Layer Plywood Arc Bending Machine, a specialized system engineered for the precise arc bending of multi-layer plywood boards in cabinetry, furniture, and structural applications. Multi-layer plywood, composed of multiple cross-laminated veneer layers, offers exceptional strength, dimensional stability, and screw-holding capacity. This advanced equipment executes a complete automated workflow including protective film application, pre-milling grooving, rough and finish arc milling, automatic glue dispensing, controlled heating and bending, and pressure roller-assisted setting. Designed to process multi-layer plywood with various surface finishes including melamine paper, PET, and decorative papers, the system delivers consistent, high-quality arc profiles for R3 corners, R18, R36, R45, and custom configurations. With integrated servo control, automatic tool setting, and automatic tool changing capabilities, this machine offers manufacturers the precision and efficiency needed for premium multi-layer plywood component production, with the important note that direct-laminated multi-layer boards have lower success rates in the bending process.

Multi-layer plywood presents unique challenges in arc bending due to its cross-laminated structure and surface characteristics. The combination of material properties and aesthetic requirements creates several critical issues:

Multi-layer boards with direct lamination have low success rates in arc bending. The laminated surface layer is particularly susceptible to cracking and delamination during the bending process.

The alternating grain direction in multi-layer boards creates complex stress patterns during bending. Without precise processing, internal stress leads to layer separation or surface damage.

Different surface finishes applied to multi-layer boards have varying tolerance to bending stress. Melamine paper, PET, and decorative papers each require specific processing parameters.

Variations in grooving depth, heating temperature, and pressure distribution lead to inconsistent arc radii and surface quality. Achieving uniform results requires precise control of all process parameters.

Our Fully Automatic Multi-Layer Plywood Arc Bending Machine is designed as a comprehensive solution that resolves these challenges through intelligent automation and precision engineering. The process is built on a robust platform, featuring:

• Protective Film Application Station: Automated protective film application prevents surface scratches and damage during processing.
• Precision Grooving System: A dedicated grooving unit creates the bending channel with depth and width parameters optimized for multi-layer plywood construction. Grooving precision is critical for achieving successful bends without delamination.
• Two-Stage Arc Milling: The system executes rough milling followed by finish milling to achieve the precise arc profile while minimizing stress on the laminated surface.
• Automatic High-Temperature Glue Dispensing: A precision adhesive system applies specialized high-temperature reactive glue into the milled groove. This adhesive ensures strong bonding between the bent layers.
• Controlled Heating and Bending: The heating mechanism, guided by CNC parameters, applies precise temperature control based on multi-layer plywood specifications. Temperature settings are optimized to soften the adhesive layers without degrading the surface finish.

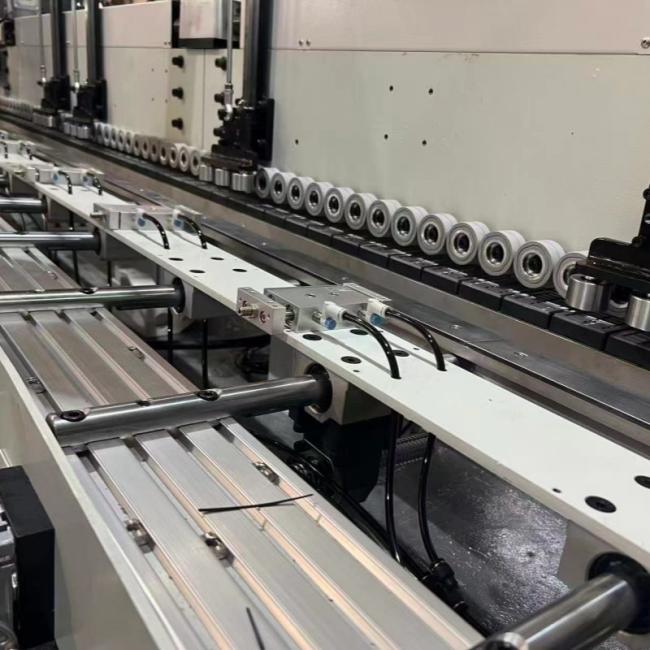

• Pressure Roller-Assisted Setting: An integrated pressure roller system provides continuous support during cooling and setting, preventing spring-back and maintaining the precise arc profile.

This specialized multi-layer plywood arc bending system is ideal for producing high-quality curved components:

The machine operates through a synchronized, automated seven-stage process:

1. Protective Film Application: High-quality protective film is applied to the panel surface.
2. Pre-Milling Grooving: Precision grooving creates the bending channel with multi-layer optimized parameters.
3. Rough Arc Milling: The first milling stage removes bulk material to create the initial arc profile.
4. Finish Arc Milling: The second milling stage achieves precise arc dimensions with optimal surface quality.
5. Automatic Glue Dispensing: Specialized high-temperature reactive glue is precisely applied into the groove.
6. Controlled Heating and Bending: The panel is heated and formed with multi-layer-specific temperature settings.
7. Pressure Roller Setting: The formed arc is held under pressure through a conveyor system while cooling.
