2000KG Intelligent Fully Automatic Pallet Wrapping Machine For Conveyor Packaging Lines

The Intelligent Online Fully Automatic Pallet Wrapping Machine is a high-performance stretch wrapping solution specifically designed for fully automated conveyor packaging lines. Featuring a heavy-duty slewing ring turntable, automatic heat-type film cut & clamp system, 200% powered pre-stretch film carriage, and Siemen intelligent control system, it delivers stable, efficient, and labor-saving pallet wrapping for modern manufacturing environments.

With a wrapping speed of 25–30 pallets per hour, a maximum wrapping height of 2350mm, and a maximum load capacity of 2000kg, this machine is ideal for industries requiring continuous, unmanned packaging operations. The integrated conveyor system ensures smooth product transfer while the automatic rope grip function securely locks the load to the pallet, significantly improving transportation stability and reducing film consumption by up to 30%.

Designed for Industry 4.0 production lines, the machine also supports intelligent alarms, remote diagnostics, LED status indication, and IoT monitoring, making it an excellent choice for factories seeking higher productivity, lower packaging costs, and reliable long-term operation.

Many manufacturers still rely on semi-automatic wrapping equipment or conventional turntable machines that cannot keep pace with today's automated production lines. These systems often require manual intervention, consume excessive stretch film, and create bottlenecks in warehouse logistics.

Traditional chain-driven turntables are also prone to vibration, higher maintenance costs, and shorter service life. In addition, manual film cutting, unstable pallet loads, and conveyor transition issues increase labor costs while reducing packaging consistency.

For businesses producing hundreds or thousands of pallets every day, these problems directly affect shipping efficiency, product safety, and operating costs.

The Intelligent Online Fully Automatic Pallet Wrapping Machine provides a fully automated solution that seamlessly integrates into conveyor systems and smart factories.

Its slewing ring turntable delivers smooth, quiet operation with superior load capacity while eliminating the maintenance issues associated with traditional chain-driven systems.

The 200% powered pre-stretch carriage maximizes film utilization, reducing film consumption by approximately 30% without compromising load stability.

The innovative Automatic Rope Grip System tightens the stretch film at the pallet base, firmly connecting products to the pallet and preventing load movement during transportation. Even if a forklift damages the lower film layer, the wrapped load remains secure.

After wrapping is completed, the automatic heat-type cut & clamp system seals the film neatly without manual operation, ensuring a clean finish for every pallet.

Combined with the Siemen PLC, SICK sensors, SEW motor, OMRON relays, remote monitoring, intelligent alarms, and IoT connectivity, the machine provides reliable 24-hour automatic operation suitable for modern logistics and manufacturing facilities.

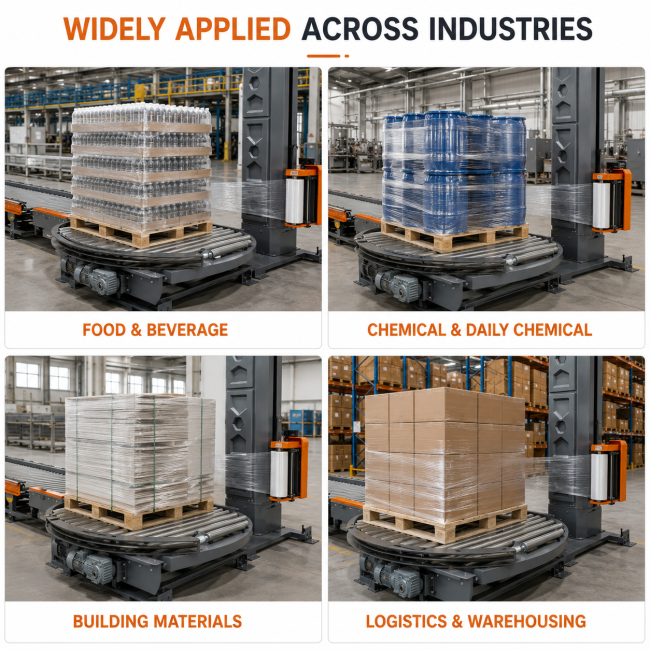

The Intelligent Online Fully Automatic Pallet Wrapping Machine is widely used in automated packaging lines where high efficiency, consistent wrapping quality, and reduced labor are required.

Suitable industries include:

The conveyor automatically transports the loaded pallet into the wrapping station. SICK photoelectric sensors detect the pallet position and initiate the wrapping program.

The automatic film clamp secures the stretch film while the powered pre-stretch carriage stretches the film by 200%. The slewing ring turntable rotates smoothly as the film carriage moves vertically, ensuring even wrapping tension.

The machine automatically narrows the film into a strong rope at the pallet base. This innovative technology locks the products firmly to the pallet, improving transport stability and preventing load shifting.

Once wrapping is completed, the automatic heat-type cut & clamp system cuts and seals the film neatly. The wrapped pallet is then automatically conveyed to the next production stage while the machine prepares for the following pallet.

Selecting the right online pallet wrapping machine depends on your production requirements. Consider the following factors before purchasing:

If your factory wraps more than 20 pallets per hour or operates continuously, an online automatic pallet wrapper provides significantly higher efficiency than semi-automatic models.

Verify the maximum pallet size, load weight, and wrapping height. This model supports loads up to 2000kg and wrapping heights up to 2350mm, making it suitable for most industrial applications.

Factories equipped with palletizers, conveyors, AGVs, warehouse management systems, or robotic packaging lines should choose an online automatic model for seamless integration.

Machines equipped with powered pre-stretch technology can reduce stretch film usage by around 30%, lowering packaging costs over the long term.

Choose equipment using internationally recognized electrical components such as Siemen, SICK, SEW, OMRON, and Schneider to ensure reliability, easy maintenance, and worldwide spare parts availability.

Yes. The machine is specifically designed for online automatic production lines and can be integrated with conveyors, palletizers, labeling machines, AGVs, warehouse automation systems, and ERP/MES production management systems.

The standard 200% powered pre-stretch system allows one meter of film to stretch to three meters, reducing film consumption by approximately 30% compared with conventional pallet wrappers.

The machine supports pallets with a maximum diagonal dimension of 1680mm, a wrapping height of 2350mm, and a maximum load capacity of 2000kg. Custom configurations are available for larger pallet sizes.

No. It features a fully automatic heat-type cut & clamp film system that automatically clamps, cuts, and seals the film after each wrapping cycle, eliminating manual intervention.

Yes. We provide OEM and ODM services, including customized wrapping height, conveyor dimensions, turntable size, electrical configuration, remote monitoring functions, branding, and complete automated packaging line integration.

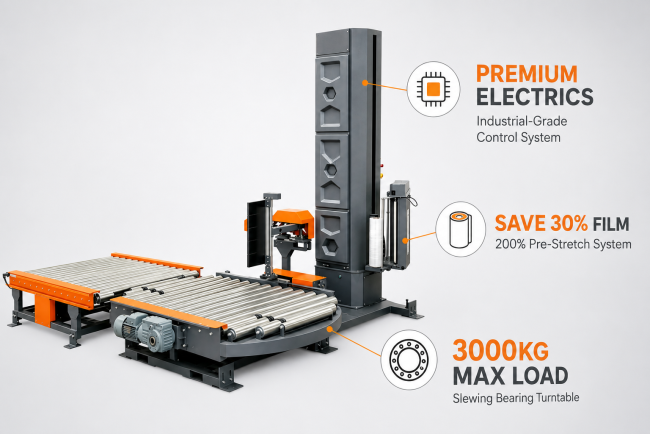

Fully automatic online operation for continuous production

Heavy-duty slewing ring turntable for stable, low-vibration performance

200% powered pre-stretch saves up to 30% stretch film

Automatic heat-type film cut & clamp system

Intelligent rope grip technology for superior load stability

Premium Siemen, SICK, SEW, OMRON, and Schneider electrical components

Remote monitoring, intelligent alarms, and IoT-ready architecture

Easy integration with conveyors, palletizers, AGVs, and smart factory systems

OEM/ODM customization available

Professional global installation, commissioning, and after-sales support
