1650mm Intelligent Fully Automatic Top Pressure Pallet Wrapping Machine 1500kg Capacity Automatic Film Clamp Cut For Lightweight Pallets

The Intelligent Fully Automatic Top Pressure Pallet Wrapping Machine is engineered to provide stable, efficient, and fully automated pallet packaging for lightweight, tall, and unstable products. Featuring an advanced electric top pressure device, automatic film cutting and clamping system, 200% powered pre-stretch carriage, and Siemen intelligent control, the machine ensures every pallet is securely wrapped with minimal operator involvement.

Designed for modern manufacturing and logistics operations, this model combines high packaging efficiency with reduced film consumption and consistent wrapping quality. Its intelligent control system, remote operation, and IoT-ready architecture make it an ideal solution for companies seeking automated end-of-line packaging equipment.

As production volumes continue to increase, many factories encounter packaging problems that affect transportation safety and operational efficiency.

Typical issues include:

Lightweight products shifting during pallet rotation

High pallet loads collapsing during transportation

Operators spending excessive time cutting stretch film manually

Inconsistent wrapping quality between workers

High labor costs in repetitive packaging operations

Excessive stretch film usage

Frequent downtime caused by manual intervention

Difficult integration with automated production lines

Without adequate top pressure support, unstable pallet loads are more likely to tilt or collapse, increasing transportation risks and customer complaints.

The Intelligent Top Pressure Pallet Wrapper is designed to automate the entire wrapping process while improving pallet stability.

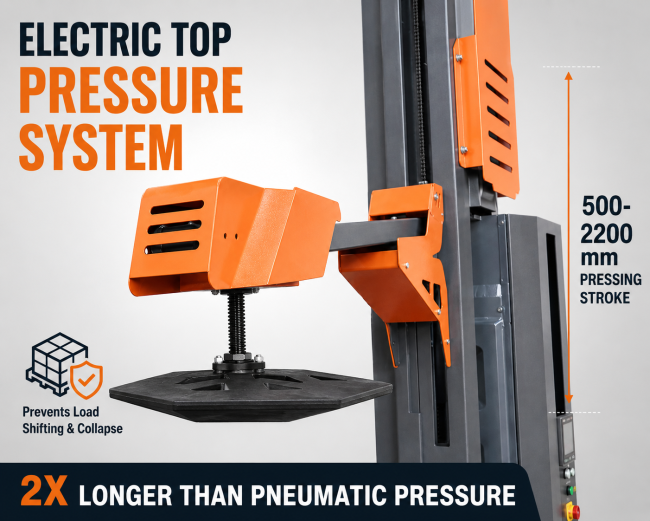

The electric top pressure mechanism securely presses the top of the pallet throughout the wrapping cycle, minimizing product movement. Compared with traditional pneumatic systems, the electric design provides a larger adjustment range and more precise positioning.

At the end of each wrapping cycle, the machine automatically cuts the stretch film and clamps the film tail for the next pallet. This eliminates manual cutting and significantly shortens cycle times.

The powered pre-stretch carriage delivers a 200% pre-stretch ratio, allowing one meter of film to stretch up to three meters. This reduces film consumption while maintaining excellent wrapping strength.

The machine features a user-friendly LCD touch interface with programmable wrapping parameters. Operators can easily adjust wrapping speed, top and bottom wraps, turntable rotation speed, and film overlap according to different products.

Driven by a Siemen PLC control system, the machine provides reliable long-term operation with automatic diagnostics, LED status indicators, and intelligent alarm functions.

Wireless remote operation enables users to start, pause, or stop the machine without approaching the control panel, improving workplace efficiency and operator safety.

Fully automatic wrapping cycle

Electric top pressure system for unstable pallet loads

Automatic film cutting and clamping

Intelligent LCD touch screen

Siemen PLC control system

1650mm heavy-duty turntable

Maximum load capacity of 1500kg

Adjustable wrapping programs

Remote control operation

X-Line IoT intelligent management

Film carriage safety protection

LED intelligent alarm system

Low maintenance design

CE certified

OEM & ODM manufacturing supported

This automatic pallet wrapping machine is suitable for a wide range of industries requiring stable pallet packaging.

Typical applications include:

The top pressure function is particularly effective for wrapping lightweight cartons, bottled products, empty containers, bags, and stacked goods that may shift during transportation.

The operator places the pallet on the turntable. The electric top pressure plate automatically lowers and secures the load before wrapping begins.

The turntable rotates while the powered film carriage moves upward and downward. Stretch film is evenly applied around the entire pallet according to the preset wrapping program.

During the complete wrapping cycle, the top pressure plate maintains constant pressure on the load, preventing movement or product collapse.

When wrapping is complete, the machine automatically cuts and clamps the film. The pressure plate lifts automatically, allowing immediate pallet removal and preparation for the next cycle.

When selecting a pallet wrapping machine, consider the following factors:

If your pallet loads contain lightweight cartons, bottles, bags, or stacked products, a top pressure model offers significantly improved packaging stability.

For medium to high production capacities, a fully automatic machine reduces labor requirements while maintaining consistent wrapping quality.

If your packaging line already includes conveyors or robotic palletizers, this model can be integrated into a fully automated end-of-line system.

A powered pre-stretch carriage helps reduce stretch film consumption, lowering long-term operating costs.

The machine supports optional conveyor systems, weighing modules, ramps, remote diagnostics, and IoT monitoring for future production upgrades.

Top pressure machines are ideal for lightweight, tall, or unstable products such as tissue paper, bottled beverages, empty plastic containers, carton boxes, and bagged goods that may shift during wrapping.

Yes. The integrated Automatic Film Cutting & Clamping System automatically cuts and secures the film after each wrapping cycle, eliminating manual film handling.

Yes. The electric top pressure system is adjustable from 500mm to 2200mm, allowing the machine to accommodate a wide range of pallet heights.

The machine uses a Siemen PLC with an LCD touch screen, programmable wrapping modes, intelligent fault diagnostics, LED status indicators, and optional remote control for easy operation.

Absolutely. We offer OEM and ODM customization, including different turntable diameters, wrapping heights, conveyor integration, weighing systems, voltage configurations, film carriage options, and complete automatic pallet packaging solutions tailored to your production line.
