Automatic Drum Debagging Machine 380V For Food Ingredients / Plastic Pellets
The TOVOT Automatic Drum Debagging Machine is developed for manufacturers looking for a clean and efficient way to empty bags automatically. The machine combines robotic bag feeding, drum conveying, automatic bag cutting, material discharge, and empty bag collection into one compact system.
It is suitable for food ingredients, plastic pellets, chemical powders, and other bulk materials. With intelligent automation, the machine reduces manual handling while improving production stability.
Solutions
Cleaner Bag Emptying for Modern Production
Automatic drum debagging helps reduce dust, improve workplace safety, and provide a stable material supply for downstream production equipment.
Comparison
Automatic Drum Debagging VS Manual Bag Opening
- Production Capacity: 300-500 bags/hour
- Workers Required: 1 operator
- Material Emptying Rate: Up to 99.8%
- Dust Emission: Significantly lower than manual operation
- Production Stability: Continuous automatic feeding

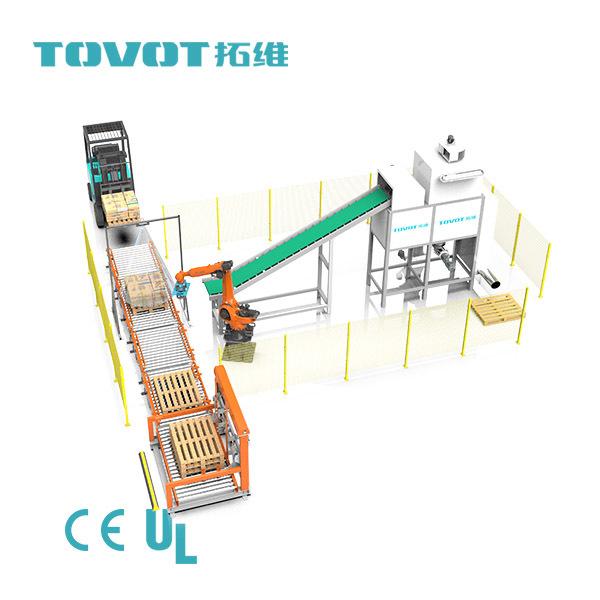

How It Works
- Robot loads bags automatically.
- Drum conveys the bag to the cutting station.
- Automatic blades open the bag.
- Material enters the hopper.
- Empty bags leave the drum automatically.
- Conveying equipment transports materials to the next process.
Specifications
| Item | Specification |
|---|---|
| Capacity | 300-500 Bags/Hour |
| Bag Weight | 10-50 kg |
| Voltage | 380V |
| Installed Power | 20 KW |
| PLC | Siemen |
| HMI | Siemen Touch Screen |
| Dust Collector | Pulse Filter |
| Drum Material | SUS304 |
| Robot | ABB, FANUC, Yaskawa Optional |
Advantages
Intelligent Robotic Feeding
Automatic pallet handling improves production efficiency.
Hygienic Drum Structure
The stainless steel drum is suitable for food and pharmaceutical applications.
Easy Maintenance
Modular design allows quick cleaning and simple maintenance.
Flexible Integration
Compatible with screw conveyors, vacuum conveying, pneumatic conveying, silos, and mixers.
Applications
- Food Industry
- Chemical Industry
- Plastic Industry
- Feed Industry
- Pharmaceutical Raw Materials
FAQ
Q: Which robot brands are available?
A: ABB, FANUC, Yaskawa, and other brands can be selected according to customer preference.
Q: Can the drum be made of stainless steel?
A: Yes. SUS304 and SUS316 are available for different industries.
Q: Can TOVOT design the complete production line?
A: Yes. We provide complete material handling solutions from bag emptying to conveying, mixing, storage, and packaging.
