Automatic Top Pressure Pallet Wrapping Machine

Product Overview

The Automatic Top Pressure Pallet Wrapping Machine is an intelligent packaging solution designed for businesses that need reliable pallet stabilization during the wrapping process. It is especially suitable for lightweight, high-stacked, or unstable pallet loads that are likely to shift or deform during transportation. By combining an electric top pressure device with automatic film handling technology, the machine delivers secure and consistent wrapping while reducing manual labor and packaging costs.

Built with a 1650 mm heavy-duty turntable and a maximum wrapping height of 2350 mm, this machine accommodates a wide variety of pallet sizes used in manufacturing, warehousing, and logistics. Its powered pre-stretch film carriage optimizes stretch film usage, while the Siemen control system ensures stable operation and precise wrapping performance. Whether operating independently or as part of an automated packaging line, this equipment helps manufacturers improve productivity and protect products throughout the shipping process.

Packaging Challenges in Modern Manufacturing

As production volumes continue to increase, companies expect their packaging equipment to do much more than simply wrap pallets. Products must remain stable during storage, transportation, and international shipping, while packaging costs and labor requirements need to be kept under control. For manufacturers handling lightweight cartons, plastic containers, paper products, or stacked consumer goods, maintaining load stability can become one of the biggest challenges in end-of-line packaging.

Without sufficient support, pallets may lean or collapse while the turntable rotates, resulting in uneven wrapping and damaged products. Some companies compensate by using more stretch film or relying on operators to manually stabilize the load, but these methods increase operating costs and reduce overall efficiency. In today's competitive manufacturing environment, automated packaging equipment must provide both stability and productivity without adding unnecessary complexity.

A Smarter Wrapping Solution

The Automatic Top Pressure Pallet Wrapping Machine addresses these challenges by introducing intelligent load stabilization throughout the entire wrapping cycle. Before wrapping begins, the electric top pressure plate automatically lowers onto the pallet and applies adjustable pressure to keep products firmly in place. This minimizes movement while protecting delicate or lightweight goods from excessive compression.

During operation, the powered pre-stretch carriage maintains consistent film tension as it travels vertically around the load. The film is stretched before application, allowing maximum coverage with less material. This not only lowers film consumption but also creates a tighter and more secure package that withstands transportation and warehouse handling.

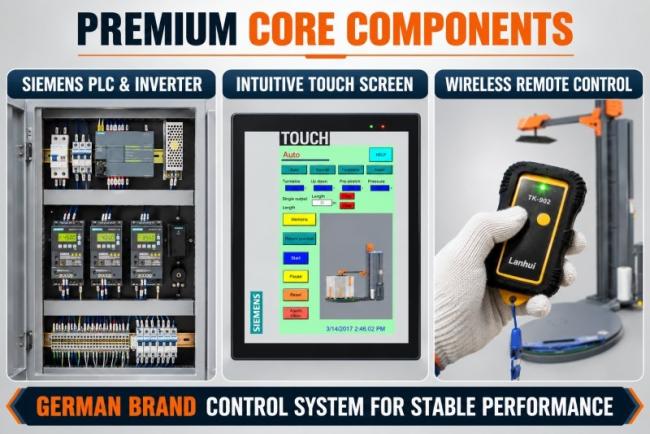

After the wrapping cycle is completed, the machine automatically cuts and clamps the film, eliminating manual intervention between pallets. Together with the LCD touch screen, remote-control function, intelligent alarm system, and Siemen PLC, the machine provides reliable automation that helps businesses increase throughput while maintaining consistent packaging quality.

Specifications

Applications

This machine is widely used in industries that require reliable pallet stabilization and efficient end-of-line packaging. It performs exceptionally well when wrapping products that are lightweight, stacked at significant heights, or easily displaced during movement. Food manufacturers use it to secure cartons and bottled beverages, while tissue and paper producers benefit from the additional support provided by the top pressure system. It is also commonly found in chemical plants, pharmaceutical facilities, building material factories, furniture manufacturers, plastic product companies, and logistics distribution centers.

Because of its flexible design, the machine can be integrated with pallet conveyors, robotic palletizers, automatic labeling equipment, and warehouse management systems, making it suitable for both standalone packaging stations and fully automated production lines.

How It Works

The wrapping cycle starts once the pallet is placed onto the turntable. The machine automatically measures the load height, after which the electric top pressure device moves downward to stabilize the pallet before rotation begins. This intelligent positioning ensures that lightweight products remain secure throughout the packaging process.

The turntable then rotates while the powered pre-stretch carriage moves smoothly from the bottom to the top of the load, applying stretch film with consistent tension. Because the film is pre-stretched before being wrapped around the pallet, less material is required while still achieving excellent load containment and transportation stability.

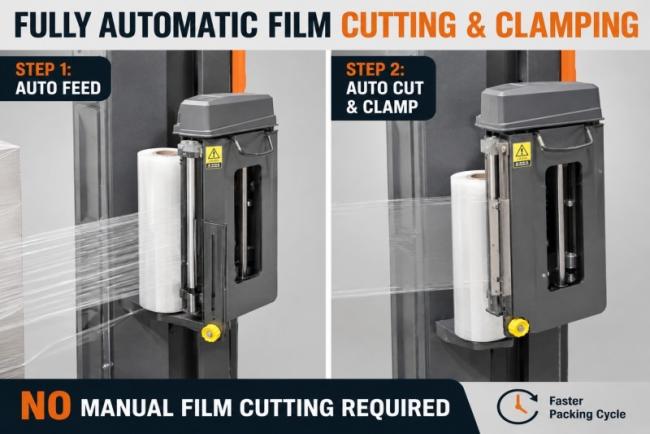

When the wrapping program reaches completion, the machine automatically cuts the film and clamps the film tail in preparation for the next pallet. The pressure plate returns to its original position, allowing the finished load to be removed immediately. The fully automated process minimizes operator involvement and ensures every pallet receives the same high-quality packaging standard.

How to Select the Right Machine

Selecting the right pallet wrapping machine depends on the characteristics of your products and your production environment. If your pallets contain lightweight goods, stacked cartons, or products that tend to move during wrapping, choosing a machine equipped with a top pressure system will significantly improve packaging stability. Businesses that package heavier or more compact products may not require additional top support, but for unstable loads it becomes an essential feature.

Production capacity should also influence your decision. Companies with continuous production lines benefit from fully automatic machines equipped with automatic film cutting and clamping, reducing downtime between pallets. It is equally important to consider film-saving technology, as powered pre-stretch systems provide long-term cost reductions by minimizing stretch film usage.

Finally, selecting equipment with internationally recognized components such as Siemen PLC controls ensures easier maintenance, reliable operation, and greater compatibility with future factory automation projects. Investing in intelligent packaging equipment today helps prepare your production line for tomorrow's manufacturing demands.

FAQ

Is the top pressure device suitable for fragile products?

Yes. The pressure applied by the electric top plate is adjustable, allowing the machine to stabilize lightweight products without causing damage.

What is the advantage of the powered pre-stretch system?

The powered pre-stretch carriage stretches the film before application, reducing film consumption while maintaining excellent wrapping strength and load stability.

Can this machine operate continuously in a production line?

Yes. It is designed for continuous industrial operation and can be integrated with conveyors and other automated packaging equipment.

Does the machine require manual film handling?

No. The Automatic Cutting and Clamping Film System completes the wrapping cycle automatically, eliminating the need for operators to cut or secure the film manually.

Which industries benefit most from this machine?

It is widely used in food and beverage manufacturing, chemicals, paper products, building materials, consumer goods, logistics, and warehouse distribution where secure pallet packaging is essential.

Build a More Efficient Packaging Process

Reliable pallet packaging is about more than simply applying stretch film—it is about protecting products, reducing waste, and improving operational efficiency. The Automatic Top Pressure Pallet Wrapping Machine combines intelligent control, automatic film handling, and advanced load stabilization to create a dependable packaging solution for modern manufacturing. By delivering consistent wrapping quality, lowering material consumption, and minimizing manual labor, it helps businesses improve productivity while ensuring every pallet is ready for safe storage and transportation.
