Automatic Cantilever Pallet Wrapping Machine For Heavy Loads

As industries continue to improve production efficiency and warehouse automation, pallet packaging has become an increasingly important part of the logistics process. A reliable wrapping system not only protects products during transportation but also reduces packaging costs and improves overall operational efficiency. The Intelligent Cantilever Fully Automatic Pallet Wrapping Machine is designed to meet these demands by combining intelligent control, premium industrial components, and advanced stretch wrapping technology into one efficient packaging solution.

Unlike conventional wrapping equipment, this machine adopts a cantilever rotary arm structure that keeps the pallet stationary while the wrapping arm rotates around the load. This design is particularly suitable for heavy, tall, lightweight, or unstable palletized products that require maximum packaging stability.

Today's manufacturing facilities require packaging equipment that can operate continuously while integrating seamlessly with automatic conveyors, robotic palletizers, and warehouse management systems. The Intelligent Cantilever Fully Automatic Pallet Wrapping Machine is specifically engineered for these applications.

The machine automatically completes pallet detection, stretch wrapping, film clamping, film cutting, and pallet release without manual intervention. With a wrapping capacity of 30–35 pallets per hour, it helps manufacturers significantly increase packaging efficiency while reducing labor requirements.

Its modular structure also makes it easy to integrate into existing end-of-line packaging systems, providing a complete automated packaging solution for modern factories.

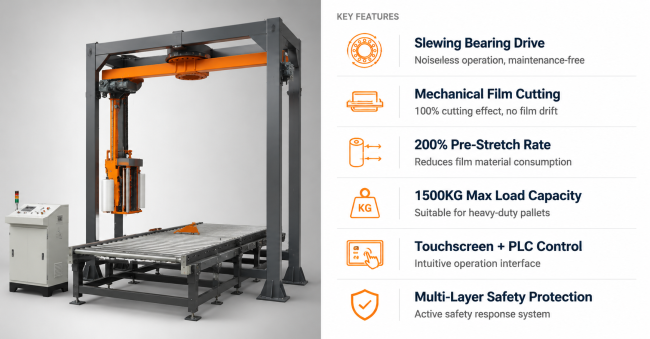

One of the biggest advantages of this machine is its cantilever rotary arm design.

Instead of rotating the pallet, the wrapping arm moves smoothly around the stationary load. This greatly reduces the possibility of products shifting, collapsing, or becoming unstable during the wrapping process.

For industries that package bottled beverages, bagged materials, stacked cartons, building materials, paper products, or other heavy pallet loads, maintaining load stability is essential for safe transportation. The stationary wrapping method provides consistent film tension around the entire pallet while protecting delicate products from unnecessary movement.

This design also makes the machine suitable for oversized or high-weight pallets that may be difficult to wrap using traditional turntable machines.

The machine is equipped with a Siemen PLC control system and an intuitive touch-screen interface, allowing operators to easily configure different wrapping programs according to product size and packaging requirements.

During operation, the intelligent control system coordinates the movement of the rotary arm and film carriage to ensure every pallet receives uniform wrapping.

Remote operation capabilities simplify daily management, while the intelligent LED alarm system provides immediate fault notifications to reduce downtime and speed up maintenance.

Because every wrapping parameter can be adjusted digitally, the machine can quickly adapt to different pallet sizes without complicated mechanical adjustments.

Packaging material costs represent a significant portion of warehouse operating expenses. To improve packaging efficiency while lowering material consumption, the machine is equipped with a 250% powered pre-stretch film carriage.

The powered pre-stretch mechanism extends one meter of stretch film to approximately 3.5 meters before application. This allows each roll of film to wrap more pallets while maintaining excellent holding force and load stability.

The result is reduced stretch film consumption, lower packaging costs, and improved environmental sustainability without sacrificing packaging quality.

Uniform film tension also creates a cleaner package appearance while preventing loose or uneven wrapping during transportation.

Industrial packaging equipment must operate reliably under continuous production conditions. To ensure consistent performance, the Intelligent Cantilever Fully Automatic Pallet Wrapping Machine is manufactured using internationally recognized components.

The machine features SICK proximity switches and photoelectric sensors for precise pallet detection, Weidmuller terminal blocks for reliable electrical connections, Siemen PLC and inverters for intelligent motion control, and a heavy-duty slewing bearing transmission system.

Unlike traditional transmission structures, the slewing bearing drive operates with extremely low noise, requires no additional counterweights, and is virtually maintenance-free. This robust design extends the service life of the equipment while reducing maintenance costs and minimizing unexpected downtime.

Safety is a critical consideration in any automated production environment. This pallet wrapping machine incorporates multiple intelligent protection systems designed to safeguard both operators and equipment.

When the emergency stop button is activated, the rotary arm stops quickly, reducing rotational movement by approximately 75%, while the lifting mechanism reduces its travel by approximately 90%, helping minimize potential hazards.

The machine also monitors pallet height automatically. If the pallet exceeds the allowable wrapping height, the conveyor prevents it from entering the wrapping area, protecting both the equipment and the product.

During stretch film replacement, the system automatically enters protection mode, preventing accidental machine startup until maintenance has been safely completed. These intelligent safety functions provide a safer working environment while ensuring stable and reliable production.

The Intelligent Cantilever Fully Automatic Pallet Wrapping Machine is widely used in industries that require efficient and secure pallet packaging.

Typical applications include food and beverage manufacturing, chemical production, building materials, paper products, furniture, plastic processing, home appliances, logistics distribution centers, and export packaging facilities.

Whether wrapping lightweight cartons or heavy industrial products, the machine provides consistent load containment and improves transportation safety throughout the supply chain.

Manufacturers today need packaging equipment that not only improves productivity but also delivers long-term value. The Intelligent Cantilever Fully Automatic Pallet Wrapping Machine combines automated operation, intelligent controls, premium industrial components, and energy-saving pre-stretch technology to create a dependable end-of-line packaging solution.

Its ability to operate continuously with minimal maintenance, reduce stretch film consumption, and integrate into fully automated production lines makes it an ideal investment for companies pursuing higher production efficiency and lower packaging costs.

Whether you are upgrading an existing packaging line or planning a new smart factory, this machine provides the reliability, flexibility, and performance needed to support modern industrial packaging operations.
