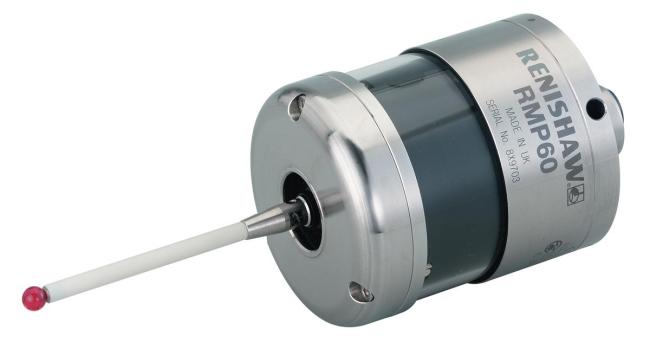

Renishaw RMP60 Radio Transmission Probing System for Machining Centers

RMP60 is a radio transmission part probing system ideal for use on all machine tools. RMP60 features an integrated probe module delivering exceptional robustness and generous overtravel. RMP60 complies with FCC regulations and operates in the 2.4 GHz range. RMP60 delivers interference-free transmission through the use of FHSS (frequency hopping spread spectrum).

RMP60 supports three methods of probe activation:

• Radio-on The probe is turned on via an RF signal produced by the RMI and initiated by an M code. The probe is turned off via an RF signal or the internal timer.
• Spin-on The probe is turned on via an internal centrifugal switch. The probe is turned off via the centrifugal switch or the internal timer.
• Switch-on The probe is turned on and off via a switch incorporated into the shank, activated when the probe is loaded into the spindle.

• Sense directions ±X, ±Y, +Z
• Stylus overtravel
• X and Y: ±18°
• Z: 11 mm (0.43 in)
• Stylus trigger force
• X and Y: 75 gf – 140 gf
• Z: 530 gf
• Unidirectional repeatability 1.0 μm (0.00004 in)

RMP60 Retrofit Kit
Includes:

• RMP60 probe and transmission system
• RMI radio machine interface
• RMI mounting bracket
• 50 mm and 100 mm ceramic styli
• Sealtite kit

Renishaw Inspection Plus Software
Installation and applications support
Part number: RMP60-NS-S

RMP60 Hardware Only Kit
Includes:

• RMP60 probe and transmission system
• RMI radio machine interface
• RMI Mounting Bracket
• 50 mm and 100 mm ceramic styli
• Sealtite kit

Part number: RMP60-NS-KIT

RMP60 probe kit
Includes:

• RMP60 probe
• AA battery (2)
• Tool kit

Part number: A-4113-0001

RMI Radio Machine Interface
Part number: A-4113-0050

RMI 30 m Replacement Cable
Part number: A-4113-0303

RMI 50 m Replacement Cable
Part number: A-4113-0304

RMI Mounting Bracket
Part number: A-2033-0830

RMI Antenna Cover
Part number: A-4113-0305

Sealtite Conduit
5/16 in conduit, 1 m long. Includes one fitting.
Part number: A-4113-0306

RMP60 Upgrade Kit
Current users of MP14, MP16 or MP18 radio probes may upgrade to RMP60. A complete working system
(MP3 probe, transmission system, MI14 or MI16 interface and RMM antennas) must be exchanged.
Includes:

• RMP60 probe
• RMI radio machine interface
• RMI mounting bracket
• Sealtite kit

Part number: RI-4113-0001

*Request for Quote the parts you would like and Quantity*
