MY20-20-2 High Precision Tungsten Steel Automatic Tool Setter Z-axis Sensor CNC Tool Detection Pre-setter for Milling Machine
Price:
$29-32 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Makinopc
Product Description
Products Description

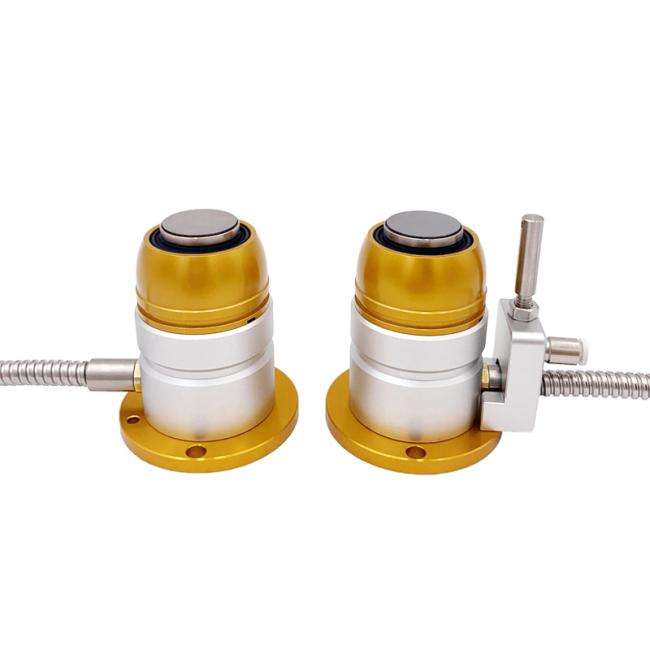

Makinopc Factory Direct MY20-20-2 Z Axis Zero Pre-setter Tool Setter Popular for Woodworking Machines CNC Machining Centers
This woodworking Z Axis Zero Pre-setter Tool Setter MY20-20-2 is mainly used for woodworking machinery tool measurement, wear and tear, fracture detection; beyond the stroke will occur when the alarm signal, can prevent breakage accidents. Applicable to China, Japan, Taiwan, South Korea, Germany and other woodworking engraving machine and a variety of woodworking control machinery, cutting machine and so on.
Product Paramenters
Product Name | Woodworking Engraving Machine Tool Setter |
Product Model | MY20-20-2 |
Signal output | NC (normally closed) |
Counterbore Diameter | 20mm |
Material | Tungsten steel super hard alloy |
Surface treatment | Grinding 4S mirror |
Repeatability | 0.001(Condition:Operating speed 50-200mm/min) |
Contact life | 3 million times |
Contact strength | 1.3-2.4N (depending on induction direction) |
Pre-travel | 0 |
Travel | 8mn |
Contact Nominal Value | DC5-24V/20mA(MAX) Recommended value 10mA Resistance load |
Cable Specification | Standard 2m (Diameter R4.35mm, 4 core shielded cable 0.7*0.2mm in each core) |
Protective Structure | IP67 |
Net Weight | 363g |
Gross Weight | 417g |
Overtravel Alarm Signal | Output Mode:NC/Normally Closed(Emergency stop when signal is disconnected/Normally Open can be ordered) |
Contact Voltage:DC24V/20mA resistive load | |
(Load and current limitation are required in special cases) |
Details Images
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it.
Package : carton or wooden box
Lead time : 1-2 days
All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, is a service-oriented enterprise specializing in the R&D, design, and sales of CNC machine tool accessories. Our current product portfolio primarily includes: CNC machine tool probes, automatic tool setters, electronic handwheels, manual pulse generators, measuring styli, spindle encoders, band switches, sensors, and installation/commissioning solutions for automatic tool changers.

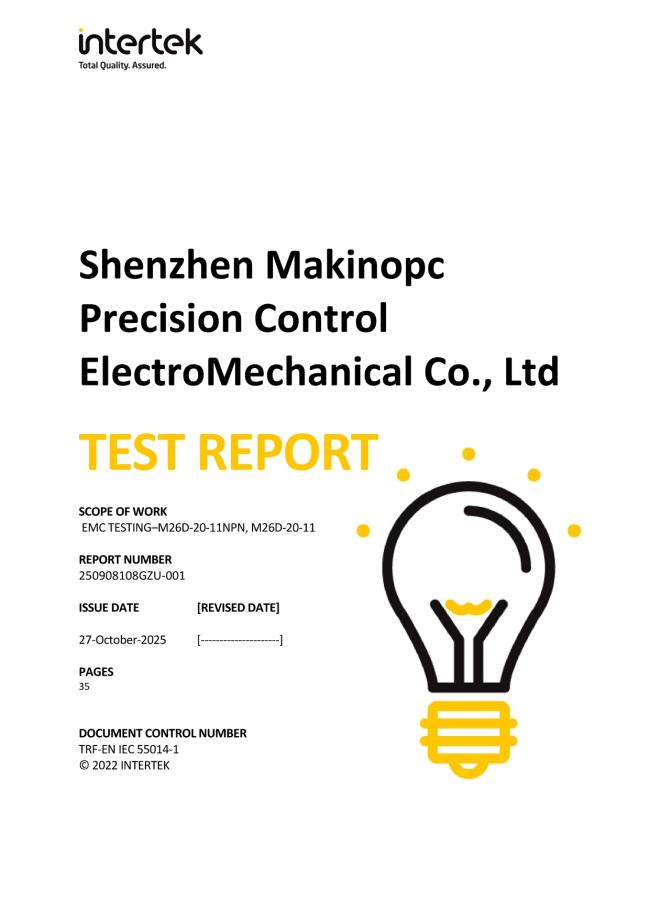

Our factory is located in Songgang Town, Bao'an District, Shenzhen, covering an area exceeding 3,000 square meters. We employ 20 professional technicians, operate 15 testing instruments, and maintain two production lines, achieving a monthly production capacity of 100,000 units. Our products feature exclusive patented designs and proprietary brands, and have obtained multiple international quality certifications including CE, FCC, and RoHS.
Our products are widely compatible with PLC control systems including Fanuc, , Mitsubishi, Fagor, Heidenhain, Baoyuan, New Generation, Hanac, GSK CNC (Guangzhou), Open Source CNC, KND, Norson, Delta, and more. They serve CNC machining centers, engraving machines, engraving/milling machines, drilling/reaming machines, EDM machines, milling machines, lathes, and other equipment.
Guided by the business philosophy of “Customer First, Integrity-Based,” the company has established long-term partnerships with numerous enterprises. We warmly welcome professionals worldwide to visit and discuss business opportunities.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience.
2. We have our own brand called Makinopc and exclusive patent design and quality certification.
3. We provide you with friendly English user manual or operation video for free.
4. We have 24 hours technical support by email or phone.
5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support.
6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample orders for testing and quality inspection.
Q2: How to choose the appropriate model or specifications?
A: Based on your requirements and application scenarios, our professional engineers will provide detailed recommendations regarding model selection and specifications.
Q3:Can I become your dealer?
A: Of course, we need partners to create value together.
Q4: Do you accept customized service?
A: Yes, we not only offer standard products but also provide customized services and solutions.
Q5: Do you have any MOQ (minimum order quality)limit?
A: Standard products are typically supplied individually. OEM orders require discussion of product solutions.
Q6.How long is the product shelf life?
A: Our products come with a one-year warranty.
Q7: How to proceed an order?
A: Once the buyer confirms the product and price are correct and is ready to purchase, please provide us with your shipping address, contact phone number, and occasionally an email address. We will then draft the order and attach an payment link. Online transactions are secure and convenient.
