M26D-20 Stainless Steel Automatic Tool Setter 20mm Diameter 0.001mm 1.5N 6-Wire Z Axis Zero Sensor CNC Milling Machine
Price:
$73-75 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Makinopc
Product Description
Products Description
M26D-20 Stainless Steel Automatic Tool Setter 20mm High Precision 0.001mm Z Axis Zero Pre-setter for CNC Machining Centers
Makinopc's CNC machine tool setter M26D-20 is used widely on cnc machining centers, lathe cnc machines, milling machines, grinding machines and many or specialist machining application. They are generally used to reduce the down time the machine has due to adjusting tool length and diameter settings as well as broken tool detection. Uniaxial tool length setters typically are only used for measuring tool length, but some optical tool height setters are able to measure tool length and diameter. Machining centers all over the world take advantage of these systems and they are almost consider a fundamental part of an automated system.
Product Paramenters
Product Name | Automatic Tool Setter for CNC Machining Centers |
Model | M26D-20 (Steel) |
Diameter of cutter face | 20mm |
The main body | stainless steel |
Contact site material | Tungsten carbide |
Surface treatment | Grinding 4S mirror |

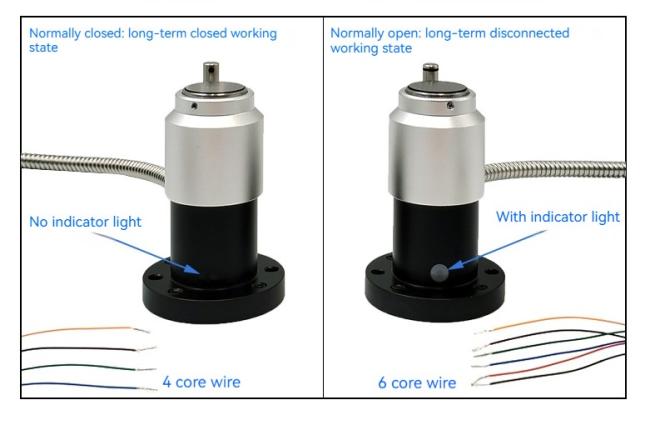

Output mode | Normally open/normally closed |
Pre-trip | / |
Stroke | 5mm |
Repeatability | 0.001mm (condition: operating speed 50-200mm/min) |
Contact life | 3,000,000 times |
Protecting the structure | IP67*100% waterproof and oil-proof sealing performance |
Contact force | 1.5N (installation must be vertical) |
Contact rating | DC24V-20mA(MAX) (recommended value 10mA) resistive load Standard 5m oil resistant, 4.8 in 6 cores, tensile strength 30N, bend radius R7 |
Cable material | PU |
Protection tube | 8mm 304 stainless steel 1.5m long |
Indicator lights | Normally closed LED lights are on when working |

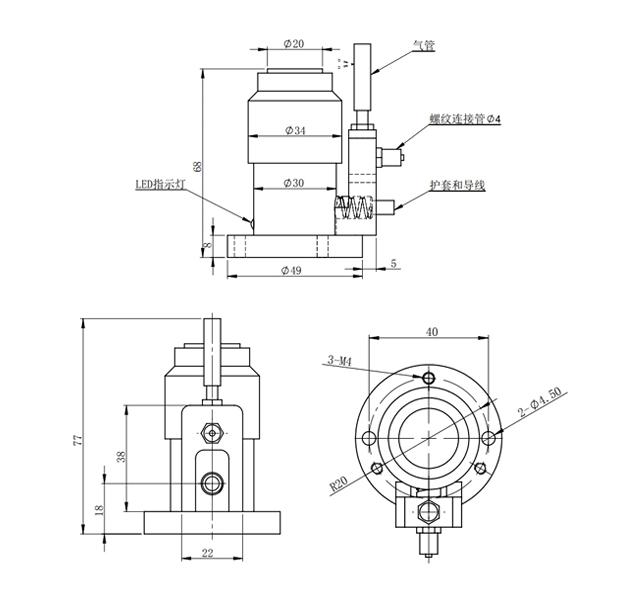

Installation hole spacing | 40mm |
Net weight | 515g |
Gross weight | 585g |
Overtravel alarm signal | Output mode: NC normally closed (about 2.5mm from the detection signal) Contact voltage: DC24V-20mA(MAX) (recommended value 10mA) resistance load |
Details Images
M26D-20 Steel and Aluminum Model Comparison
Aluminum tool setter M26D-20
1. to the knife surface for the alloy material, hardness of 65 degrees or so, after a long time of use will pit.
2. to the knife instrument body is aluminum, corrosion resistance acid and alkali resistance is weaker than steel, subject to thermal expansion and contraction, screws are easy to loosen, affecting stability.
3.Wire insulation skin is made of PVC.
4. the movement contacts for the ordinary with the material.
5. the internal chip for the national brand.
6. the axis for the ordinary axis.
Steel tool setter M26D-20
1. the knife surface is made of tungsten steel, grinding 4S mirror processing, hardness up to 92 degrees or more will not pit.
2.to the knife instrument body for stainless steel to do black treatment, corrosion resistance, acid and alkali resistance, material rigidity and stability.
3.wire insulation skin for the PU material, corrosion resistance, oil resistance, acid and alkali resistance, etc., long time soak in oil will not crack the skin will not be stiff and other problems short circuit.
4. the movement contacts for the copper material to do polished gold-plated treatment.
5.the internal chip is imported from Japan, signal conversion response is very fast, sensitive and stable precision.
6.axis for tungsten steel grinding shaft, stable wear-resistant high precision.
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it.
Package : carton or wooden box
Lead time : 1-2 days
All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Founded in 2014, Shenzhen Makinopc Precision Control Electromechanical Co., Ltd. is a high-tech enterprises are mainly engaged in the research and development, design, sales of CNC machine tool accessories, the main products include CNC machine touch probe, wired and wireless probe system, CNC tool setter, electronic handwheel, handheld pulse generator (MPG）, digital spindle encoder, band switch, system panels, sensors, CNC machine tool accessories, etc.
Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. Our advantage is factory direct sales, patent design, reliable quality, good price and fast delivery.
Our products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on.
The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term
cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience.
2. We have our own brand called Makinopc and exclusive patent design and quality certification.
3. We provide you with friendly English user manual or operation video for free.
4. We have 24 hours technical support by email or phone.
5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support.
6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How to choose the appropriate model or specifications?
A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding
models and specifications.
Q3:Can I become your dealer?
A:Of course, we need partners to create value together.
Q4: Do you accept customized service?
A:Yes, we can provide not only standard products, but also customized service and solutions.
Q5: Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions.
Q6.How long is the product shelf life?
A: Our product watranty period is one year.
Q7: How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
