High Accuracy 0.001MM Z-Axis Zero Height Setter 30mm Contact Diameter CNC Machining Tool Presetter Measurement Sensor M26D-30
Price:
$107-109 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Makinopc
Product Description
Products Description
M26D-30 Tool Setter for CNC Machining Centers

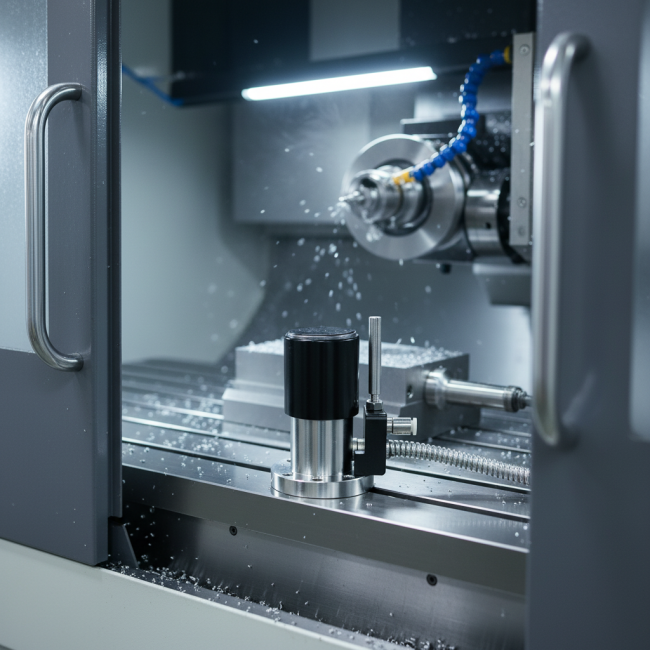

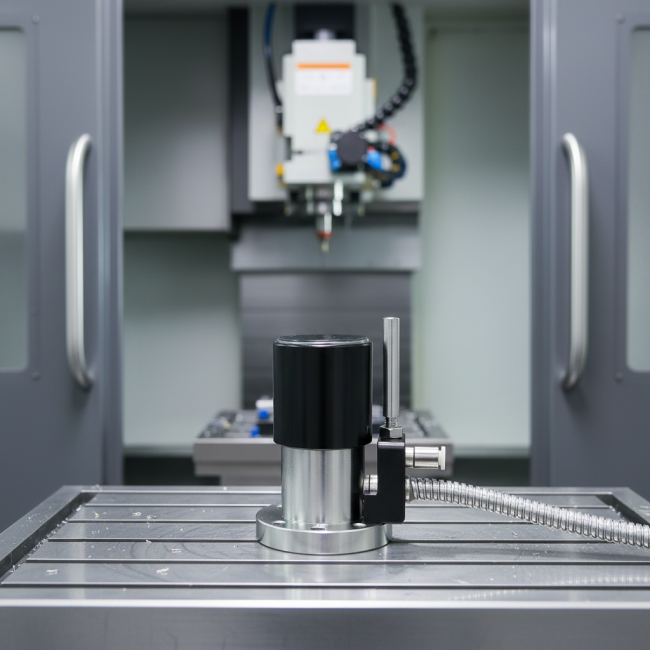

The MAKINOPC's tool setter M26D-30 is mainly used for CNC machining centers, engraving and milling machines, high-gloss machines, glass and jade machines and other equipment, tool measurement, wear and tear fracture detection, broken knife detection; beyond the stroke will occur when the alarm signal can prevent breakage accidents.
Product Paramenters
Product Name | High Precision Automatic Tool Setter |
Product Model | M26D-30 |
Signal output | NO normally open/NC normally closed |
Contact Diameter | 30mm |
Material | Tungsten steel super hard alloy |
Surface treatment | Grinding 4S mirror |
Repeatability | 0.001mm(Condition:Operating speed 50-200mm/min) |
Contact life | 3 million times |
Contact strength | 1N (mounting condition must be vertical) |
Pre-travel | 0mm |
Travel | 8mm |
Contact Nominal Value | DC5-24V/20mA(MAX) Recommended value 10mA Resistance load |
Cable Specification | Standard 5m oil resistance (length can be customized) |
Waterproof rating | 8mm/304 stainless steel/1.5m length, tensile length 30N bending radius R7 |
Net Weight | 536g |
Gross Weight | 612g |
Overtravel Alarm Signal | Output Mode:NC/Normally Closed(Emergency stop when signal is disconnected/Normally Open can be ordered) |
Contact Voltage:DC24V/20mA Resistance Load | |
(Special case must add load, limit current) |

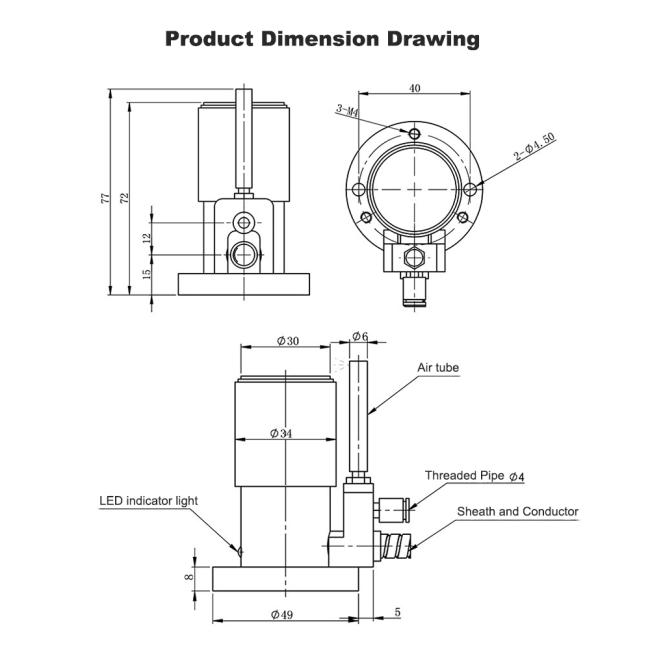

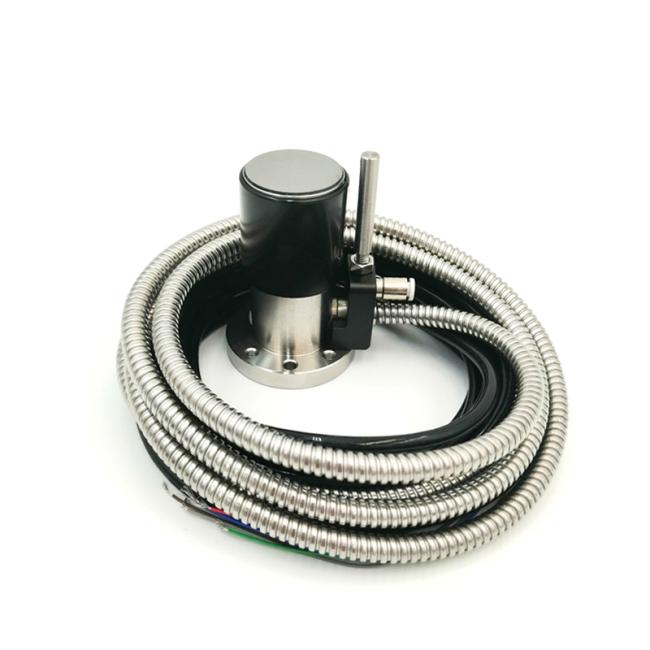

Details Images
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it.
Package : carton or wooden box
Lead time : 1-2 days
All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc.
Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates.
The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on.
The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience.
2. We have our own brand called Makinopc and exclusive patent design and quality certification.
3. We provide you with friendly English user manual or operation video for free.
4. We have 24 hours technical support by email or phone.
5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support.
6. We have no MOQ limit and accept OEM/ODM bulk orders.
