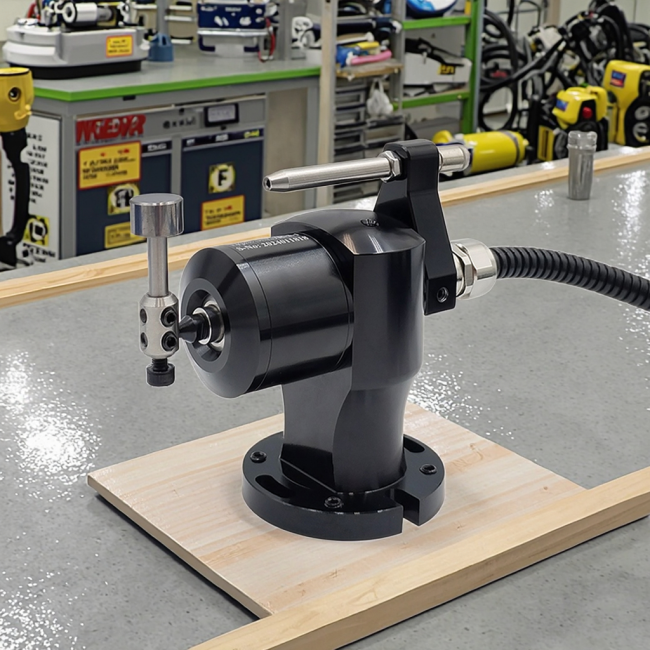

MS27R-3-1 Five Way Direction Tool Setter 0.001MM Air Intake CNC Milling Machine Center Tool Measurement Broken Tool Detection
Price:
$405-419 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Makinopc
Product Description
Products Description
Makinopc 5-Way Directional Tool Setter MS27R-3-1 for CNC Machining Centers tool Measurement and Broken Tool Detection
Reduce scrap and increase productivity by accurately setting the length and diameter of cutting tools on CNC machining centres prior to machining. Explore our range of contact tool setters for tool measurement and broken tool detection.
Product Paramenters
Product Name | Multi-Directional Tool Setter |
Product Model | MS27R-3-1 |
Control Output | PNP/NPN(Normally Open/Normally Closed) |
Contact Diameter | 14-20mm |
Measuring direction | ±X,±Y,+Z |
Material | Alloy |
Surface treatment | Ground 4S mirror |
Repeatability | 0.001mm |
Contact life | 3 million cycles |
Contact strength | 0.7N |
Stroke | 3mm |
Supply Voltage | 12-24VDC |
Contact rating | 15mA(MAX) Recommended Value 10mA Resistance Load |

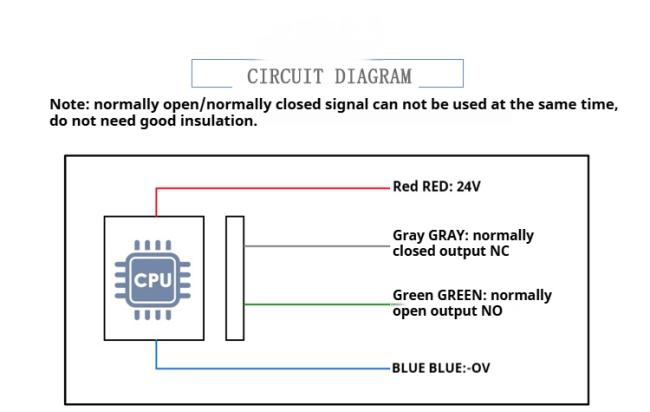

Number of signals | 4 wires 2 sets of signal output |
Cable specification | 5m highly flexible oil resistant drag chain cable |
Protection structure | IP67 |
Ambient Temperature | -20°C to +40°C |
Relative Humidity | 25% to 95% non-condensing |
Net weight | 605g |
Gross Weight | 620g |
Side head size (optional) | 8 round head, 8*8 square head, others |
Attention | Be sure to use it within the rated power range. (12-24VDC), and the mounting base needs to be ground protected or shielded. |

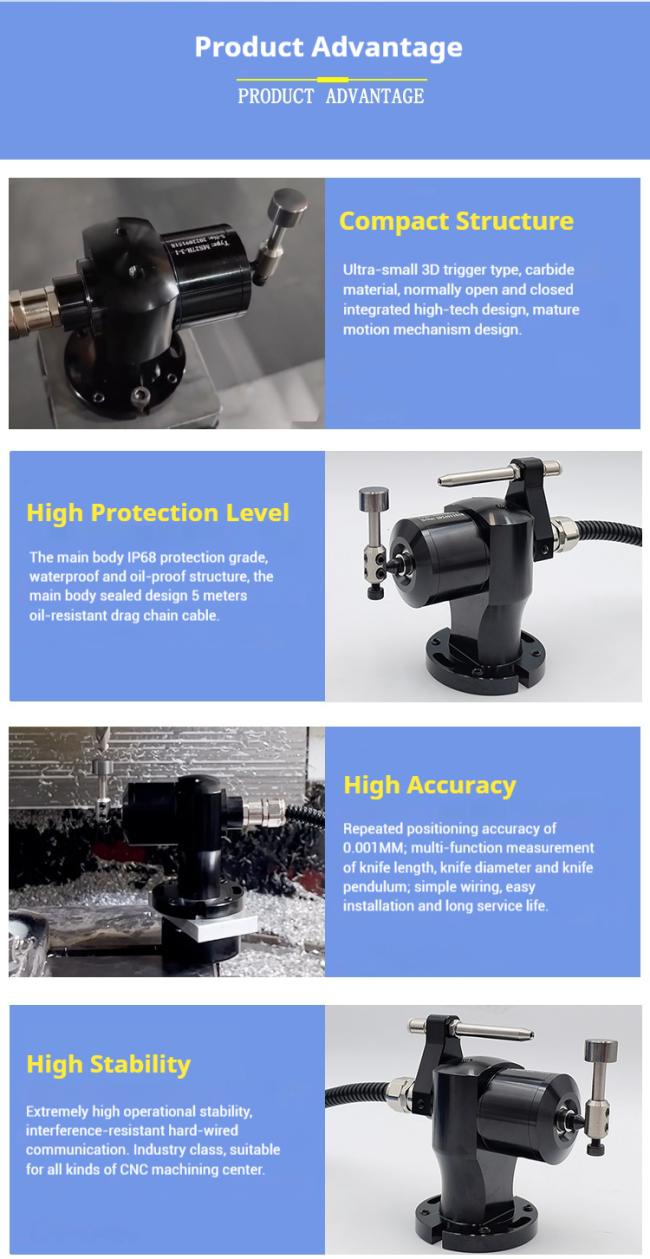

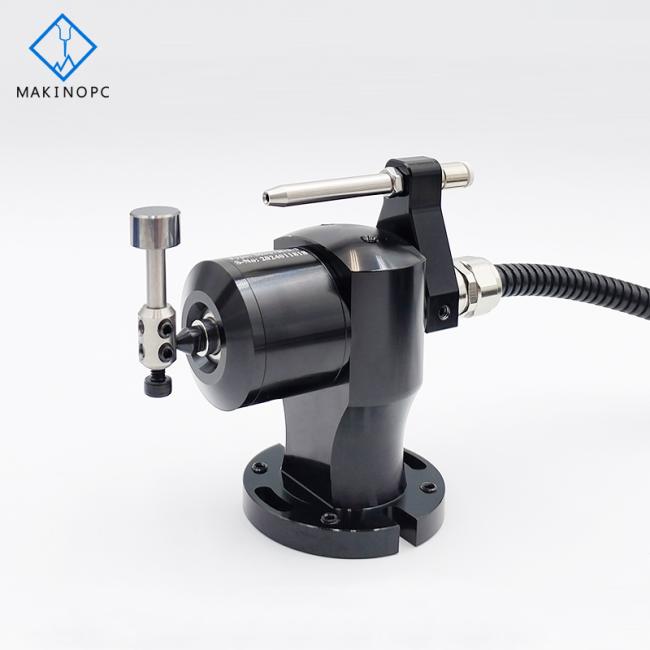

Details Images
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it.
Package : carton or wooden box
Lead time : 1-2 days
All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc.
Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates.
The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on.
The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience.
2. We have our own brand called Makinopc and exclusive patent design and quality certification.
3. We provide you with friendly English user manual or operation video for free.
4. We have 24 hours technical support by email or phone.
5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support.
6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How to choose the appropriate model or specifications?
A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding
models and specifications.
Q3:Can I become your dealer?
A:Of course, we need partners to create value together.
Q4: Do you accept customized service?
A:Yes, we can provide not only standard products, but also customized service and solutions.
Q5: Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions.
Q6.How long is the product shelf life?
A: Our product watranty period is one year.
Q7: How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
