Renishaw TS27R 5-Way Multi-Direction Tool Setting Probe 20mm Diameter IP68 Protection 0.001mm Repeatability for Milling Machine
Price:
$1,085-1,095 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Renishaw
Product Description
Products Description

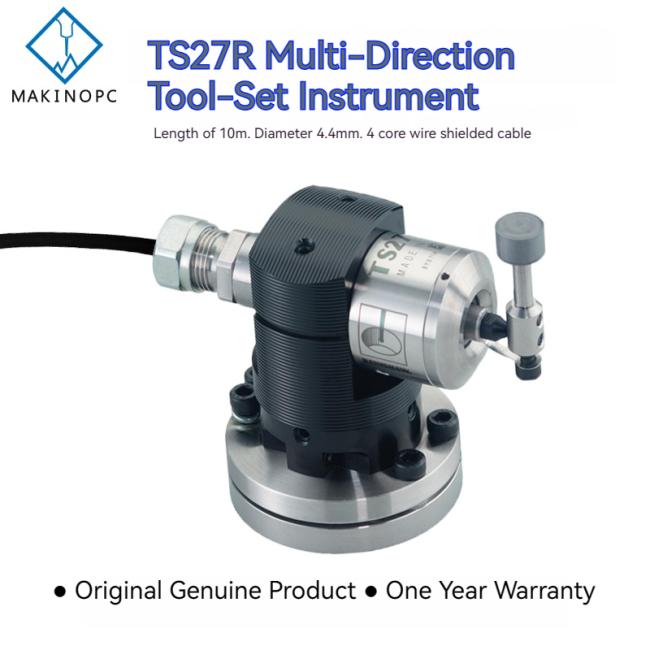

Renishaw TS27R Contact Tool Setting Probe
Renishaw's original five-direction tool setter is mainly used for CNC machine tools, CNC machining centers, cutting tools, tool length, tool diameter, offset measurement, tool breakage detection, tool positioning, wear and fracture detection. Is a variety of models of vertical, horizontal and gantry machining centers tool-specific measurement system, using a cable connection with the CNC machine tool to continue real-time communication, the probe's measurement signals through the cable real-time output to the CNC system, with a dedicated macro program. Alarm signals are generated when travel is exceeded, preventing breakage accidents!
Product Paramenters
Product Name | Renishaw 5-way tool setting probe |
Product Model | TS27R |
Brand name | Renishaw |
Output Mode | Hardwired transmission |
Contact Diameter | 14-20mm |
Receiver/Interface | M18-4 or HSI |
Recommended styli | Disk styli or square styli |
Pre-travel | 0 |
Measuring direction | ±X, ±Y,+Z |
Repeatability | 0.001mm (condition: operating speed 50-200mm/min) |
Contact life | 3 million cycles |
Protection structure | IP68 |
Contact force | 1.3-2.4N (depending on sensing direction) |
Material of contact part | Tungsten steel/ceramic |
Surface treatment | Ground 4S mirror |
Cable | Standard 10m(4.35mm diameter, 4 core shielded cable) |
Installation | M12T-bolt |
with disk stylus | 1055g |
Operating Temperature | +5°C to 60°C |
Storage temperature | -10℃ to +70 |
Details Images
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it.
Package : carton or wooden box
Lead time : 1-2 days
All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc.
Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates.
The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on.
The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience.
2. We have our own brand called Makinopc and exclusive patent design and quality certification.
3. We provide you with friendly English user manual or operation video for free.
4. We have 24 hours technical support by email or phone.
5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support.
6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How to choose the appropriate model or specifications?
A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding
models and specifications.
Q3:Can I become your dealer?
A:Of course, we need partners to create value together.
Q4: Do you accept customized service?
A:Yes, we can provide not only standard products, but also customized service and solutions.
Q5: Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions.
Q6.How long is the product shelf life?
A: Our product watranty period is one year.
Q7: How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
