Panel Type Stainless Steel Solid Manual Pulse Generator MPG Pendant Handwheel 80mm 25/100PPR for Fanuc Mitsubishi CNC Systems
CNC Pulser Handwheel 5V 12V 24V 80mm 4Pins 6Pins 100PPR Manual Pulse Generator Handwheel MK800 for Machining Center CNC Systems

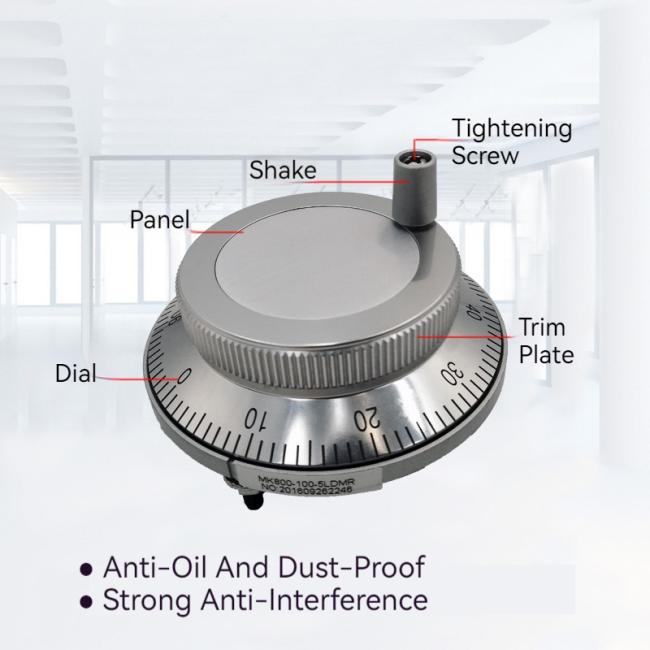

This is a large handwheel with a diameter of 80mm, internal ASIC devices, high reliability, long life, strong anti-interference performance. Stainless steel structure has higher stability and protection ability, metal shell is more solid and impact resistance. Metal gears, rotation feel clear. Mainly used in CNC machine tools, printing machinery zero correction or signal division.
Product Parameters
| Product Name | Panel Mounted Manual Pulse Generator |
| Product Model | MK800 Series |
| Product Specification | MK800-5V-100PPR(5V, 100PPR, A, B, A-, B-phase output) |
| MK800-12V-25PPR(12V, 25PPR, A, B phase output) | |
| MK800-24V-100PPR(24V, 100PPR, A, B phase output) PLC | |
| Voltage | 5-26vcc |
| Number of pulses | 25PPR,100PPR |
| Dimension | 80MM |
| Weight | 115g |
| Maximum mechanical speed | 600r/min |
| Mechanical life | 3*100000rpm(below 200r/min) |
| Operating temperature | -25℃ to 70℃ |
| Storage temperature | -25℃to 85℃ |
| Protection class | IP50 |
| Net weight | 236.1g |
| Gross weight | 263.8g |
| Available Systems | Fanuc, Italy, Heinak, Guangdian, Open, Kaindi, Mitsubishi, Fagor, France, Heidenhain, Baoyuan, Xindai, Kaindi, Shikai Huaxing, Huazhong, Dasen, Aerospace, Guangtai and other well-known CNC systems. |
Packing Details: Standard box, fumigation wooden box choosing according to the different size of the products. Delivery Details : 3-30 days after payment .
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4. OEM/ODM accept . But the MOQ of OEM/ODM is at least 100 sets.
Shenzhen Muye Precision Control ElectroMechanical Co., Ltd is a research and design of CNC numerical control machine tool accessories sales service enterprise, currently on the market of the main products are CNC numerical control machine with tool setting gauge, electronic hand wheel, hand pulse generator, Band switch, Spindle Encoder, system panels, electronic hand wheel accessories matching scheme and realize the automatic installation solution tool setting gauge, etc. We provide reliable and high-quality service for our customer who comes from different country and different population all over the world. Warmly welcome you to vist our company and negotiation with us.
1.What products do we have?
We have many CNC Machine Accessories including tool setting gauge, electronic hand wheel, hand pulse generator, Band switch, Spindle Encoder, system panels, electronic hand wheel accessories, etc.
2.How we guarantee the quality of the products?
Each batch of products will pass the test before leaving our factory.
Before delivery, we will check the list one by one.
3.Why you should choose us?
As original manufacturer in Shenzhen, China, we are specialized in producing CNC Machine Accessories more than 10 years. We can provide you with the overall solution. We can offer you many type CNC accessories products. Just tell us which you need, we will provide you as the best price and the best quality and service.
4.What's the payment term?
We normally accept T/T, Western Union, L/C, and PayPal.
5.What about the shipping?
We support multiple modes of transportation, such as by express, by air, by sea, by rail and so on.
Also can shipping by DHL\FedEx\TNT\UPS\EMS and so on.
We can offer different type transactions: FOB\EXW\FCA\DAP\CIF.
We can also help you to keep other suppliers goods at our warehouse and shipping together.
6.How to place an order?
Just tell us what you need , then we can quote you the price and make an Invoice for you. If all is OK, then place an order and we ship you the goods ASAP. In order to ensure that all products are what you need, we will show you the pictures, drawings, videos and so on before shipping.
7.What about the delivery time?
We have a large warehouse and most of our goods are in stock. When you have order, we can ship the goods fast. Generally speaking, the time from our warehouse to the forwarder is about two days, and then the goods can be sent by DHL FedEx UPS TNT to you.
