Big Capacity Energy Saving Hollow Paddle Dryer For Sludge / Chemical Processing

Big capacity Energy-saving Hollow Paddle Dryer for Life's sludge

The hollow blade dryer is a highly efficient, energy-saving continuous conductive heating drying equipment widely used in industries such as chemical processing, food, environmental protection, and new energy. It is particularly suitable for drying, cooling, or sterilizing paste-like, filter cake-like, granular, and heat-sensitive materials.

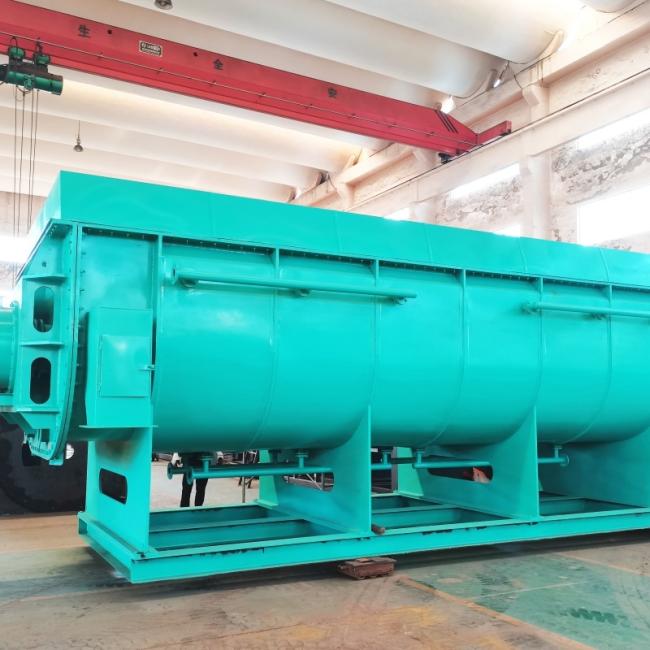

Its working principle is based on the combination of conductive heating and mechanical stirring. The main unit consists of a horizontal W-shaped shell with a jacket, inside which two hollow paddle shafts rotate either intermeshing or in parallel. Steam, hot water, or thermal oil can be circulated through both the paddles and the shell jacket as heat transfer media. After entering at the feed end, the material is continuously agitated, sheared, and propelled by the rotating paddles, while simultaneously coming into full contact with the heated surfaces of the paddles and shell. Heat is conducted through the walls into the interior of the material, causing moisture to vaporize upon heating. The secondary steam generated during evaporation is discharged through the exhaust port, and a dust removal and condensation recovery system can be installed to achieve solvent recovery.

The core advantages of this device include:

High thermal efficiency: Conduction heating eliminates sensible heat loss due to hot air carryaway, achieving a thermal efficiency of 80%–90%, significantly more energy-efficient than traditional hot-air drying.

High drying intensity: The stirring action of the blades continuously renews the heating surface, enhancing heat transfer and achieving a high evaporation rate per unit volume.

Flexible and controllable operation: The residence time of materials inside the machine can be adjusted by varying the rotational speed and outlet settings, allowing adaptation to different process requirements for moisture content and final moisture levels.

Excellent sealing environment: The equipment operates in a closed system with no dust leakage, making it suitable for toxic, flammable, or easily oxidized materials, and capable of achieving low-temperature drying.

In addition, the equipment features a compact structure and small footprint, with strong self-cleaning capabilities of the blades that effectively prevent material adhesion to the walls. The hollow blade dryer is particularly suitable for drying difficult-to-handle materials such as sludge, food additives, dyes, and pesticide intermediates, making it an ideal drying solution in modern environmental protection and fine chemical industries.
