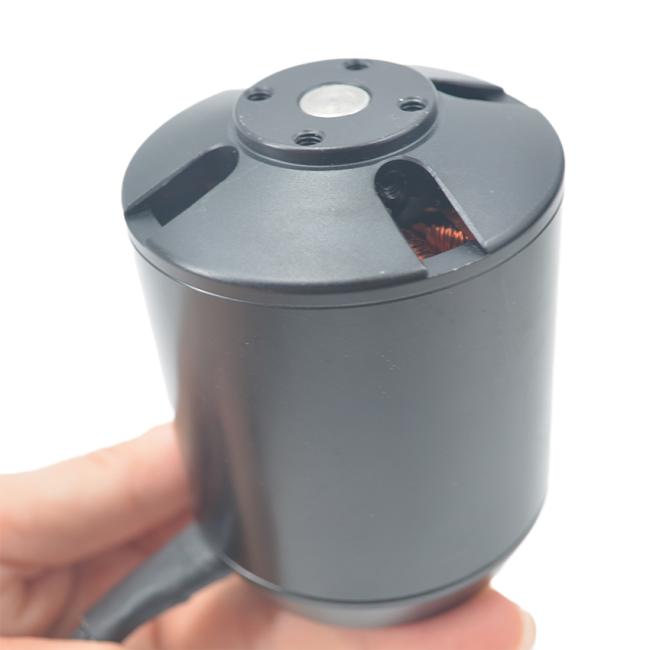

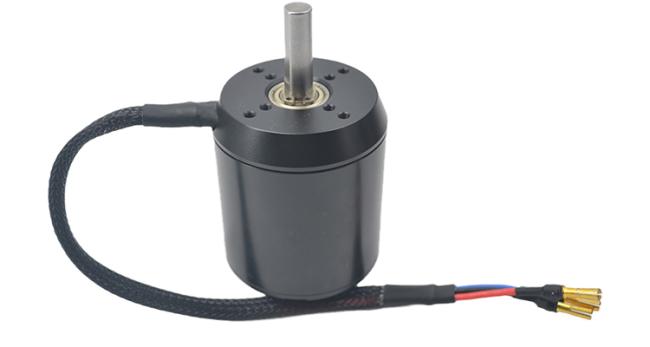

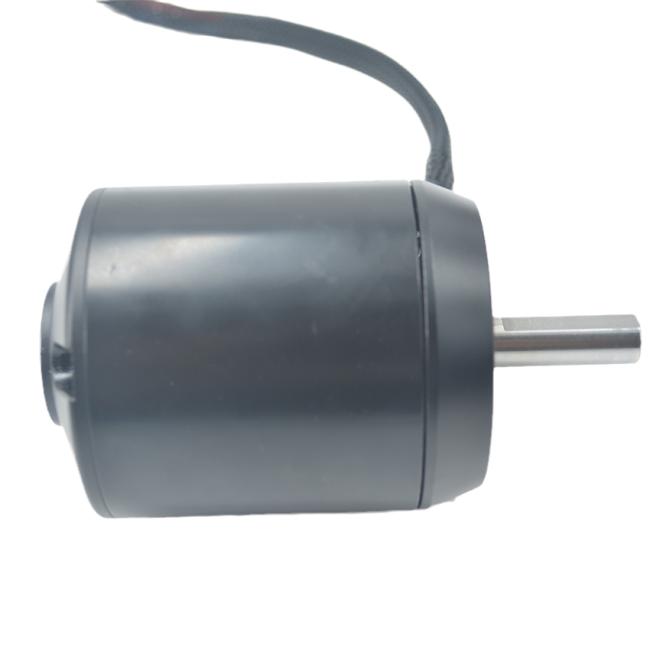

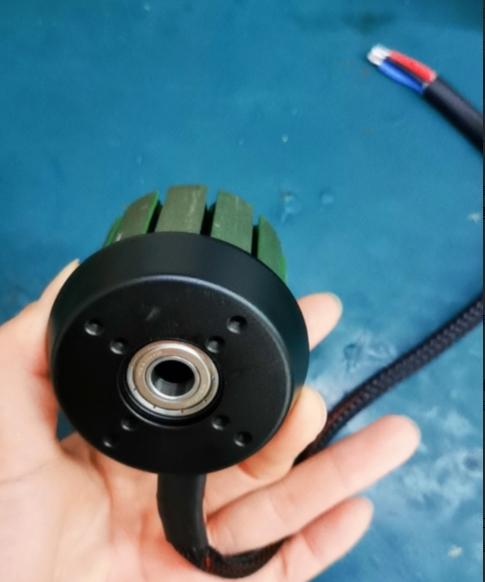

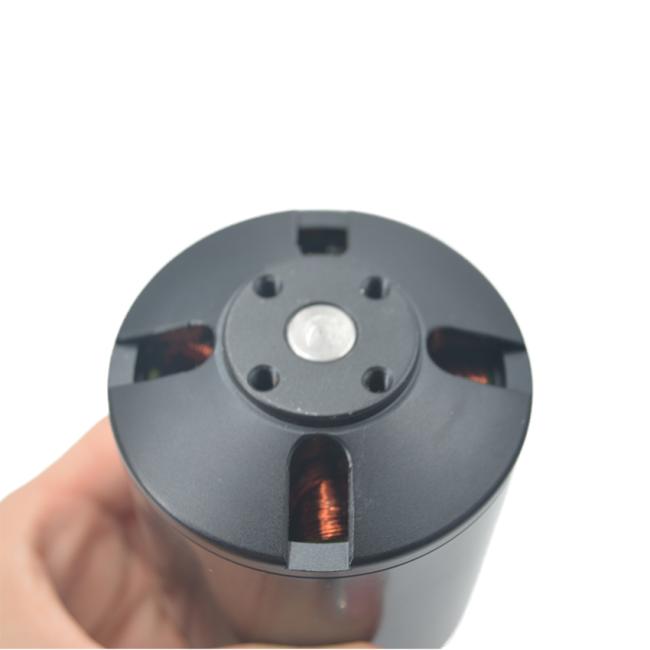

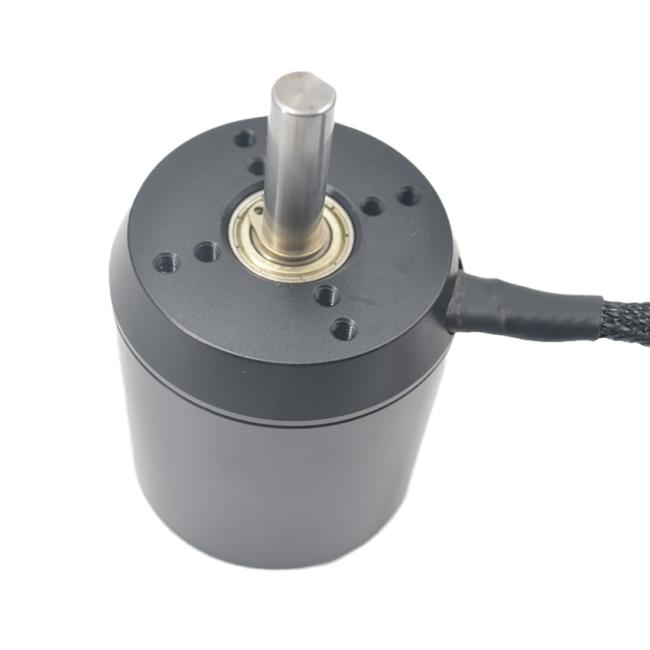

Brushless DC 6384 Motor with Hall Sensor for Electric Skateboard,scooter, Surfboard, Underwater Propeller Ebike
Price:
$37.99-39.99 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
HOBBYSKY
Product Description

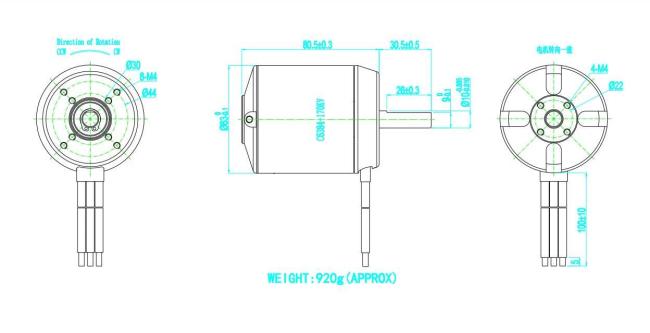

Outline drawing
Products Description
Motor Hall description

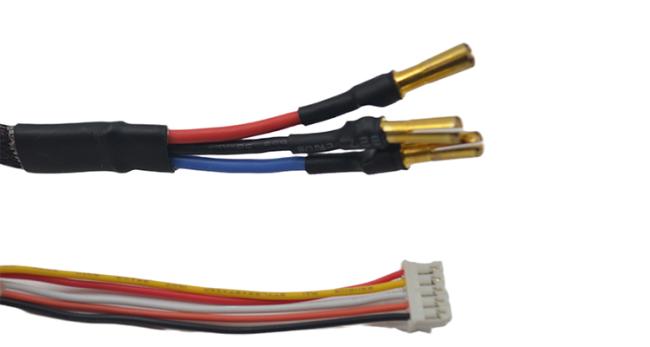

Motor phase wire:
C-blue thick wire
B-black thick wire
A-red thick wire
Hall phase wire:
5V red thin wire
Negative-black thin wire
C-orange thin wire
B-white thin wire
A-yellow thin wire
MODEL | 6384 |
Body diameter | 63mm |
Body height | 80mm |
Shaft diameter | 10mm |
Flat thickness | 9mm |
Output shaft length | 30mm |
Flat length | 28mm |
Top mounting hole distance | 44/30mm |
Bottom mounting hole distance | 22mm |
Mounting hole size | M4*4 |
Banana head | 4.0 |
Weight | 945G |
Maximum power | 3280W |
Hall angle | 60 degrees |
No-load current | 0.8-2.2A |
Maximum current | 120A |
Recommended voltage | 22.2-51.8V |
KV value | 120-200KV |
No-load speed | 8000-9600rpm |
Torque | 5-7N/M |
Product Description.
6384 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6384 brushless motor can also be used for DIY modification of underwater thrusters and bicycles.
Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The 6384 motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification!
Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples.
Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof.
Mass production: shaft diameter: 10mm
Name:Hobbysky 6374 170KV 190KV 230KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft)
Specifications:
Brand : Hobbysky
Body diameter 63mm
Body height 80mm
Shaft diameter 10mm
Flat thickness 9mm
Output shaft length 30mm
Flat length 28mm
Top mounting hole distance 44/30mm
Bottom mounting hole distance 22mm
Mounting hole size M4*4
Banana head 4
Weight 945G
Maximum power 3280W
Hall angle 60 degrees
No-load current 0.8-2.2A
Maximum current 120A
Recommended voltage 22.2-51.8V
KV value 120-200KV
No-load speed 8000-9600rpm
Torque 5-7N/M
Package Includes:
1pc x 6384 Brushless Motor
ATTENTION:
1. Please make sure your motor has enough cooling while running.
2. Keep motors away from moisture, dust, scrap and small items to avoid damages.
TIPS:
★ We welcome OEM orders, KV value, motor color, logo all can be customized.
Product packaging
Company Profile
FAQ
1.Are you a manufacturer?
Yes, as the original factory supplier in mainland China, we are mainly engaged in the research and development and production of brushless motors, covering aeromodelling brushless motors, electric remote control scooter brushless motors, surfboard brushless motors, and logistics sorting equipment brushless motors. A company specializing in the production and processing of outer-rotating brushless motors, inner-rotating brushless motors, and peripheral accessories and hardware accessories.
2.How to order？
Step 1.please tell us product items and quantity you need.
Step 2.we will make a PI with shipping cost for your reference.
Step 3.payment can be arranged after we confirm everything in details.
Step 4.we will deliver the goods within stipulated time.
3.What are the payment methods?
PayPal, T/T, Western Union, Moneygram, Escrow, etc. Beside, we accept Trade Assurance, which can protect your payment if you will not get the goods, so you can just place order in without any wories.
4.Do you provide OEM/ODM services?
Yes! Welcome to send us inquiries about OEM&ODM custom design.
