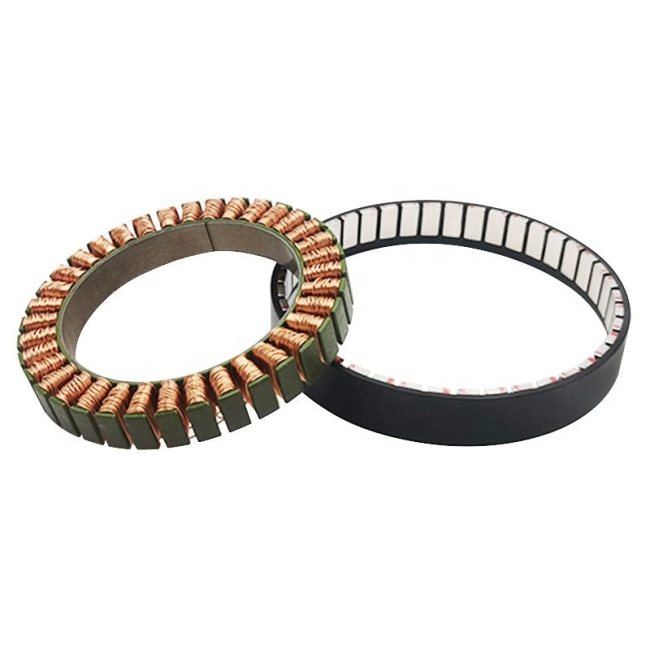

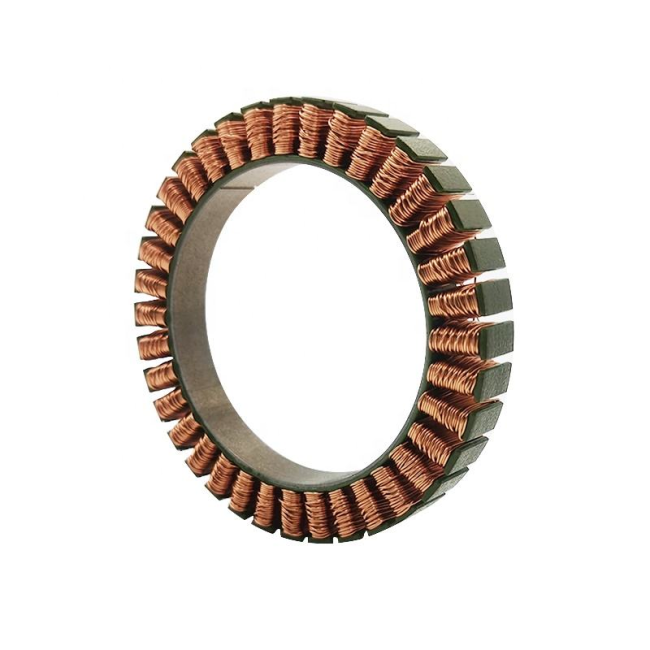

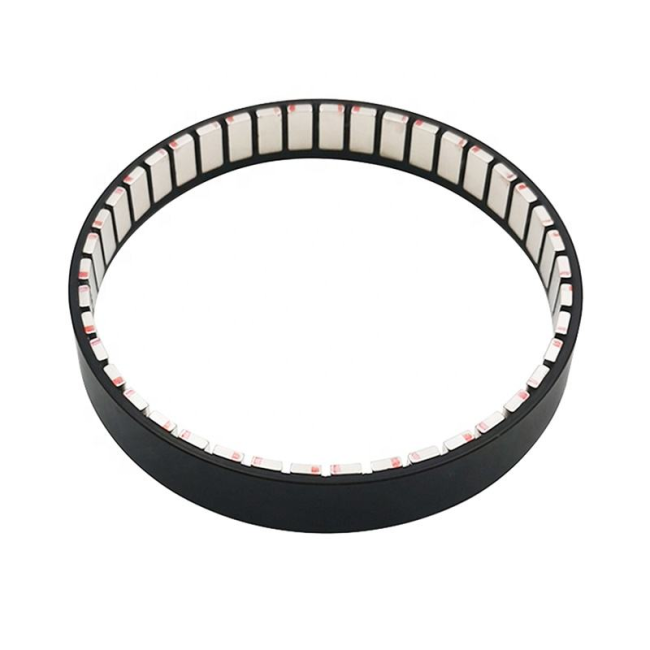

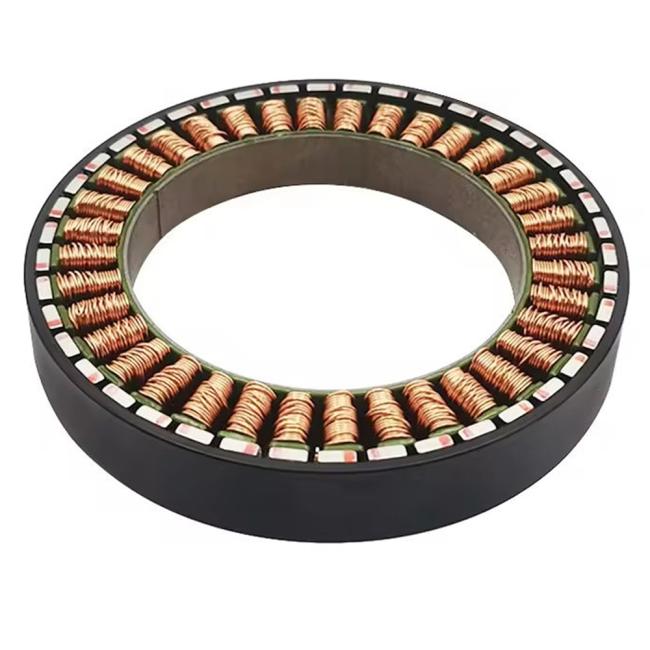

Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Price:
Contact us,get the best price
MOQ:
Low MOQ
Delivery Time:
1-2weeks after payment done
Brand:
HOBBYSKY
Product Description

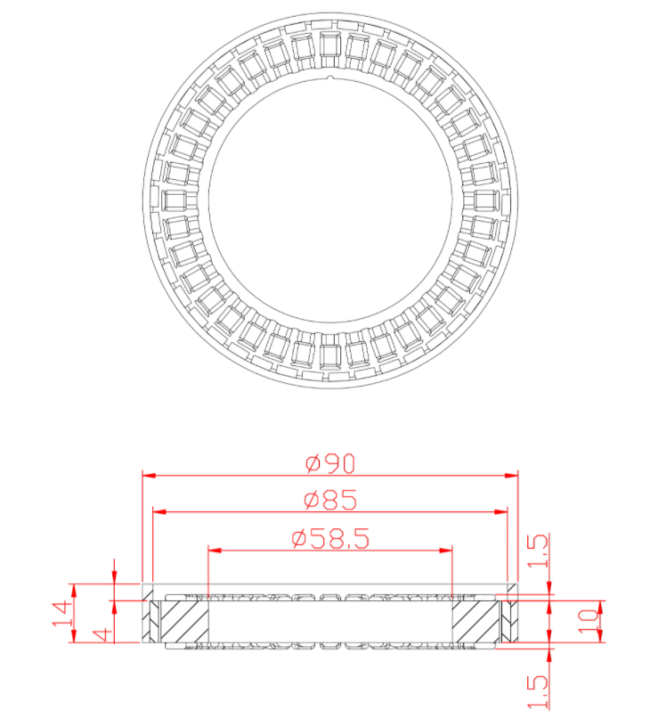

Outline drawing
Products Description

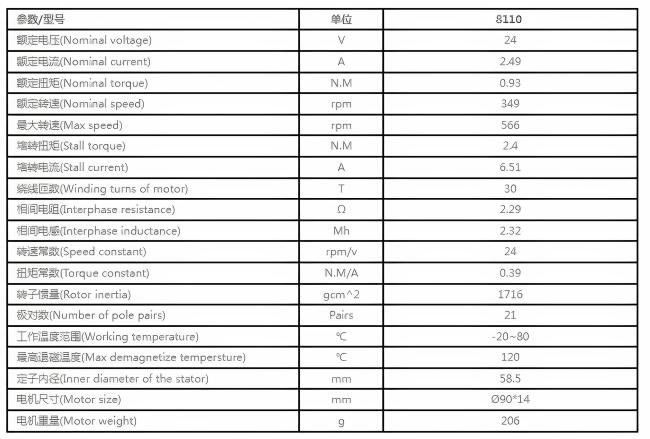

(Nominal voltage) V 24 (Nominal current) A 2.49 (Nominal torque) N.M 0.93 (Nominal speed) rpm 349 (Max speed) rpm 566 (Stall torque) N.M 24 (Stall current) A 6.51 (Winding turs of motor) T 30 (Interphase resistance) 2.29 (Interphase inductance) Mh 2.32 (Speed constant) rpm/v 24 (Torque constant) N.M/A 0.39 (Rotor inertia) gcm^2 1716 (Number of pole pairs) Pairs 21 (Working temperature) ℃ -20~80 (Max demagnetize tempersture) ℃ 120 Inner diameter of the stator) mm 58.5 (Motor size) mm 090*14 (Motor weight) 206
