HS-65162 120KV IP68 Waterproof Underwater Thruster Brushless Motor
D65L161-120KV
|

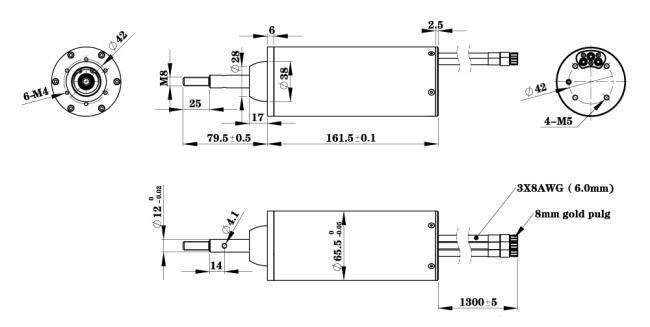

Shell Dimension)(mm) |
D65.5XL161.5 |
|
Construction |
18N/6P |
|
chip dimension |
D61xd34xL100/0.2 |
|
magnets dimension& spec |
R16XL101(45SH) Magnet stagger10° |
|
shaft Extension length(mm) |
62.5 |
|
shaft diameter(mm) |
Φ12*M8*grooves |
|
Plug |
8.0mm |
|
Extension wire length(mm) |
1300 |
|
Appearance color |
Full black |
|
wires |
0.38X28条X5.1m |
|
winding |
3Y |
|
resistance(mΩ) |
52.8/53.1/52.8 |
|
Inductance(uH) |
176.6/176.8/176.1 |
|
KV(RPM/V) |
120KV |
|
Current without sensor@8.4V |
2.7A(actual measurement120KV) |
|
Current with sensor@8.4V |
NA |
|
Timing |
NA |
|
Operation Voltage |
9.5-12S(40-50.4V) |
|
Speed/8.4V(RPM/8.4V) |
1033 |
|
Max current(A) |
120A |
|
Max Power(W) |
7.2KW |
|
Insulation voltage/Leak current |
AC500V/1MA/3S |
|
efficiency |
84% |
|
working temp. limit |
120℃ |
|
weight |
2.8KG |
Weight:
Net Weight: 2.8KG
Gross weight: 2.96KG
Packed weight (including the weight of the outer carton shipped): 3.2KG
Size:
Package Size: 30cm*15cm*12cm;
Packing box size (including the size of the outer carton shipped):
33cm*17cm*15cm;
