300rpm Peristaltic Reagent Dosing Pump For Mineral Processing Liquid Transfer
300rpm Peristaltic Reagent Dosing Pump for Mineral Processing
Product Introduction
The G300-1F peristaltic dosing pump is designed for controlled liquid transfer and reagent dosing applications. With a speed range of 0.01–300 rpm and 0.01 rpm speed resolution, it provides flexible adjustment for different dosing requirements.
The pump features a 4.3-inch industrial color LCD, flow calibration, multiple operating modes, external control and RS485 communication. It can be integrated into mineral processing reagent dosing systems as a liquid metering and delivery component.
Key Features
- 0.01–300 rpm Speed Range – Fine adjustment with 0.01 rpm speed resolution.
- Flow Calibration – Allows flow parameters to be calibrated according to actual operating conditions.

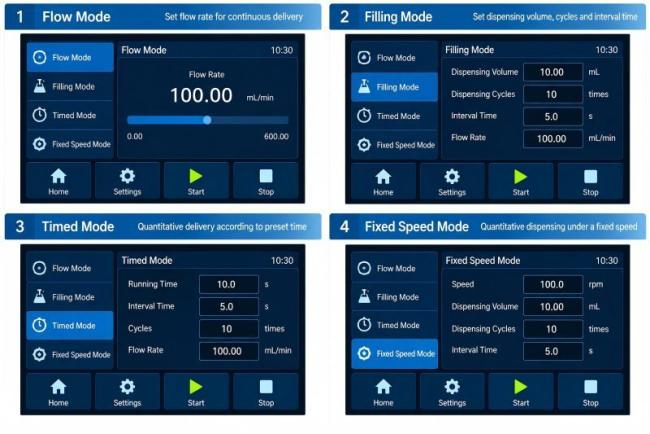

- Multiple Operating Modes – Flow, Filling, Timed Quantitative and Fixed-Speed Quantitative modes.
- External Control – Supports 0–5V, 0–10V, 4–20mA and 0–10kHz signals.
- RS485 / Modbus – Suitable for integration with compatible process control systems.
- Multiple Pump Heads – Compatible with YZ1515, YZ2515, DG Series, DMD15, YT15 and YT25.
- IP65 Protection – Designed for industrial operating environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | G300-1F |
| Speed Range | 0.01–300 rpm |
| Speed Resolution | 0.01 rpm |
| Display | 4.3-inch Industrial Color LCD |
| Dispensing Volume | 0.001–9999.999 mL |
| External Control | 0–5V / 0–10V / 4–20mA / 0–10kHz |
| Communication | RS485 / Modbus |
| Power Supply | AC100–240V, 50/60Hz |
| Power Consumption | <50W |
| Protection Rating | IP65 |
| Dimensions | 272.7 × 160 × 185.5 mm |
Mineral Processing Reagent Dosing
The G300-1F can be integrated into mineral processing reagent dosing systems for controlled liquid delivery.
Reagent Tank → Peristaltic Dosing Pump → Dosing Pipeline → Process Dosing Point
Pump head and tubing should be selected according to the required flow range and chemical compatibility of the liquid.
FAQ
Q: Can the pump be integrated into an automatic dosing system?
Yes. It supports external control and RS485 communication for integration with compatible control systems.
Q: Can it be used for flotation reagent dosing?
It can be used as a liquid metering and delivery component for suitable reagents. Tubing and pump-head compatibility should be confirmed according to the specific liquid.
About Us
Y&X Beijing Technology Co., Ltd. provides flotation equipment, flotation machine components and reagent dosing equipment for mineral processing applications. Equipment selection and configuration support are available according to different process requirements
