IP65 High Protection Chemical Dosing Peristaltic Pump 6000mL/Min For Mining
Price:
Negotiate
MOQ:
1 Set
Delivery Time:
15-30 working days
Brand:
Y&X
Product Description

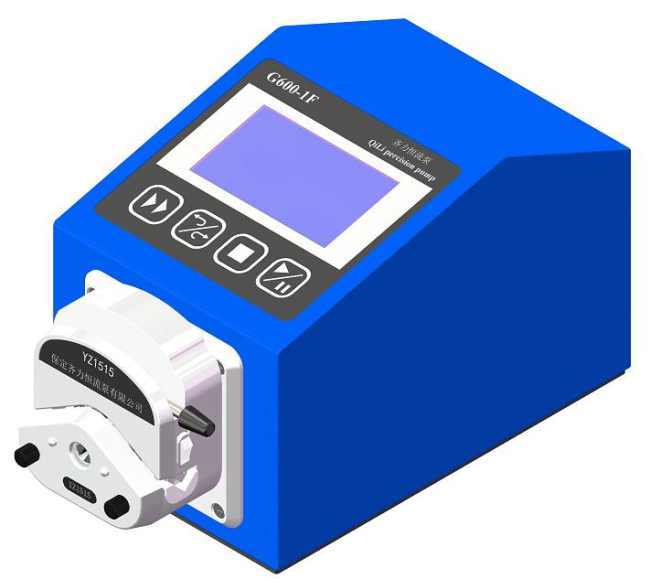

IP65 Chemical Dosing Peristaltic Pump 6000mL/min for Mining
Product Overview
The high-protection peristaltic pump is engineered for precise liquid transfer and chemical dosing in industrial and mineral processing applications. Featuring a comprehensive flow range and multi-channel support, this pump delivers reliable performance in demanding environments.
Key Features
- Wide Flow Range - 0.007-6000 mL/min for diverse dosing and transfer requirements
- Multi-Channel Operation - Supports up to 4 channels for simultaneous liquid delivery
- Industrial Touchscreen - 5-inch full-color LCD with intuitive touch operation
- IP65 Protection - High-strength aluminum alloy housing for harsh industrial environments
- Dual Operating Modes - Supports continuous flow and quantitative dispensing
- Flow Calibration - Calibration function enhances dosing accuracy
- External Control - Supports external control interfaces for system integration
- Communication Protocols - RS485 / Modbus for automated control system connectivity
- Rapid Operation - Independent full-speed function for quick tubing filling and emptying
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Range | 0.007-6000 mL/min |
| Speed Range | 0.1-600 rpm |
| Speed Resolution | 0.1 rpm |
| Maximum Channels | 4 |
| Display | 5-inch Industrial Full-Color LCD Touchscreen |
| Operating Modes | Flow Mode / Dispensing Mode |
| Dispensing Volume | 0.01 μL-999.99 L |
| Dispensing Time | 0.1 s-999.9 h |
| Dispensing Cycles | 0-9999 (0 = Infinite Cycle) |
| Communication | RS485 / Modbus |
| External Input | 0-5 V, 0-10 V, 4-20 mA, 0-10 kHz (Optional) |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | <200 W |
| Protection Grade | IP65 |
| Compatible Pump Heads | YZ1515, YZ2515, KZ25, DMD25 |
Applications
Ideal for controlled liquid dosing and transfer in:
Flotation Reagent Dosing • Mineral Processing • Chemical Dosing • Laboratory Testing • Industrial Liquid Transfer
Pump head and tubing should be selected according to required flow rate, liquid properties, and chemical compatibility requirements.
Frequently Asked Questions
Can this pump be used for flotation reagent dosing?
Yes. It can be used for controlled dosing and transfer of suitable flotation reagents and process liquids. Tubing compatibility should be confirmed according to the specific chemical used.
Does the pump support multi-channel dosing?
Yes. Depending on the pump head configuration, the drive supports up to 4 channels for simultaneous operation.
Can it be integrated into an automatic dosing system?
Yes. RS485 communication with Modbus protocol and external control options are available for seamless integration with compatible control systems.
