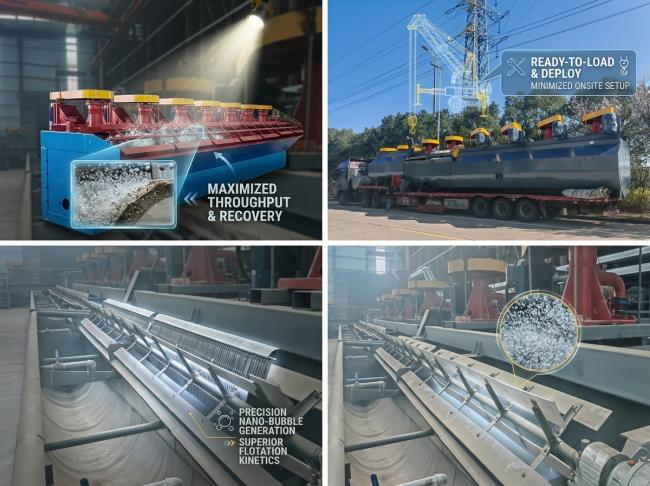

XCF II Self Aspirating Flotation Machine for Lead Zinc Ore Processing Plant
The XCF II self-aspirating flotation machine is built for lead zinc ore beneficiation. Covering 4 to 24 m³ cell volume, it draws slurry from the previous cell without an intermediate pump, keeping aeration stable and recovery high across roughing, scavenging and cleaning stages.
- Self-aspirating design draws slurry from the previous cell automatically
- Eliminates intermediate pumps and simplifies the flowsheet
- Stable, uniform pulp circulation inside the tank
- High recovery for lead zinc polymetallic ores
- Durable wear-resistant rubber lined rotor and stator
| Model | Effective Volume | Capacity (m³/min) | Motor Power (kW) | Weight (kg) | Dimensions L×W×H (m) |
|---|---|---|---|---|---|
| XCF II -4 | 4 m³ | 1-2 | 11 | 2375 | 1.80 x 1.80 x 1.50 |
| XCF II -6 | 6 m³ | 1-3 | 18.5 | 3545 | 2.05 x 2.05 x 1.75 |
| XCF II -8 | 8 m³ | 2-4 | 22 | 4142 | 2.20 x 2.20 x 1.95 |
| XCF II -10 | 10 m³ | 3-5 | 30 | 4894 | 2.40 x 2.40 x 2.10 |
| XCF II -16 | 16 m³ | 4-8 | 37 | 6928 | 2.80 x 2.80 x 2.40 |
| XCF II -20 | 20 m³ | 5-10 | 45 | 9200 | 3.00 x 3.00 x 2.70 |
| XCF II -24 | 24 m³ | 6-12 | 55 | 10819 | 3.10 x 3.10 x 2.90 |
All sizes are self-aspirating XCF II cells; larger sizes from 30 to 160 m³ are available on request.
ApplicationsSuitable for lead zinc ore and lead zinc polymetallic beneficiation plants, and ready to combine with other XCF II or KYF II cells to form a complete flotation circuit.
The impeller creates a low-pressure zone that draws slurry from the previous cell through the feed box, while air is self-aspirated along the shaft. The resulting pulp circulation keeps coarse lead zinc particles in suspension and produces a stable froth for high-efficiency separation.
FAQQ: How many cells do I need for a lead zinc circuit?
A: It depends on your throughput and residence time; we usually propose 4-8 XCF II cells per stage and size the bank after reviewing your flowsheet.
Q: Do you provide installation and commissioning?
A: Yes, remote guidance and on-site supervision are available.
Each flotation cell is fixed on a steel skid, wrapped in moisture barrier film and packed in a fumigated plywood case, sized for 20 and 40 ft containers bound for Africa, South America, CIS and Southeast Asia ports.
Send your lead zinc head grade and target throughput to receive a tailored XCF II cell arrangement and quotation.
