Nickel Sulfide Flotation Cell 1-16 M3 Volume Custom Flow Design For Processing Plant

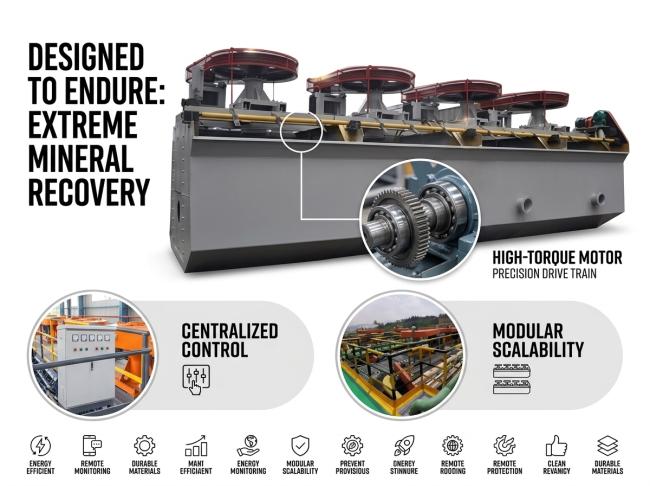

The Nickel Sulfide XCF II KYF II Flotation Cell for Processing Plant 1-16 m³ is engineered for nickel sulfide ore beneficiation. With 1-16 m³ effective cell volume and a Combined XCF II + KYF II layout it delivers stable aeration, strong pulp circulation and high recovery across roughing, scavenging and cleaning stages.
- Combined XCF II and KYF II circuit for roughing to cleaning
- Optimized pulp circulation for high grade and recovery
- Rugged cast and welded tank construction
- Suitable for nickel sulfide and polymetallic ores
- Custom flow design by drawing or sample
| Parameter | Specification |
|---|---|
| Machine Type | XCF II / KYF II combined flotation cell |
| Effective Cell Volume | 1-16 m³ |
| Configuration | Combined self-aspirating + external air supply |
| Application | Nickel sulfide and polymetallic ore flotation |
| Wear Parts | Rubber lined rotor and stator |
Suitable for nickel sulfide ore beneficiation plants, and can be combined with other XCF II and KYF II cells to form a complete mineral processing circuit.
Working PrincipleNickel sulphide circuits usually place XCF II and KYF II cells in one bank, so the self-aspirating unit feeds the externally aerated one. This pairing improves nickel flotation of fine pentlandite and limits short circuiting in the cleaning stages.
FAQQ: Is it suitable for low grade nickel ore?
A: Yes, the combined bank is often specified for lean nickel sulphide ores.
Q: Do you offer tank linings?
A: Rubber and polyurethane lining options are available for tanks and wear parts.
Packaging & Delivery
Nickel flotation cells are palletised in smaller sizes and shipped as loose components when large, all in export packing with rust proofing.
Provide your nickel assay and grind size so we can plan a combined XCF II and KYF II bank.
