Single Module Reagent Dosing Pump 220V AC Wall Mounted for Chemical Dosing
Price:
Negotiate
MOQ:
1 Set
Delivery Time:
15-30 working days
Brand:
Y&X
Product Description

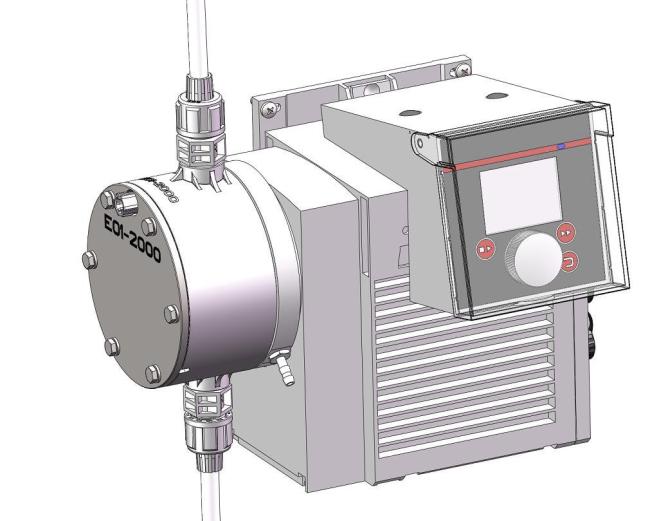

Single Module Reagent Dosing Pump 220V AC Wall Mounted for Chemical Dosing
This single module reagent dosing pump is a compact, wall mounted unit built for quick installation and dependable chemical dosing.
Key Features
- Single dosing module, quick to clip into the wall mounted rack fixing seat.
- 220V AC power supply with waterproof cover and one-button run start.
- Quick start key lets reagent fill the empty suction pipe fast on first run.
- Outlet connects to the main chemical delivery pipe.

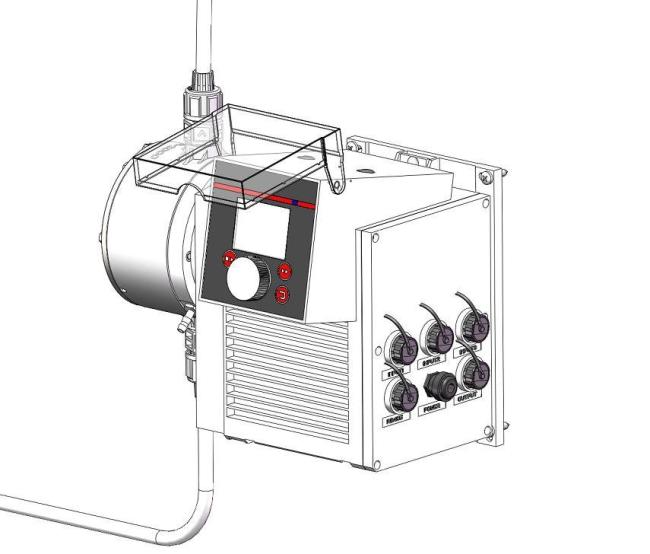

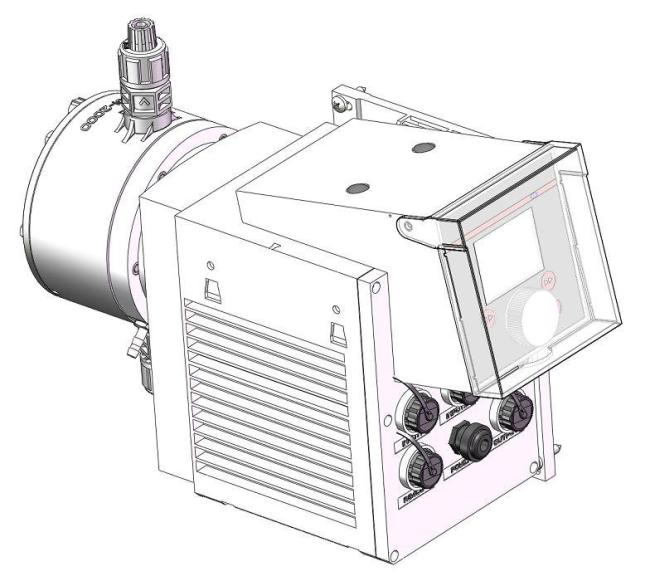

- Control module can be lifted, turned 90 degrees and re-fastened for easy operation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | Single module reagent dosing pump |
| Power Supply | 220V AC |
| Installation | Wall mounted on rack |

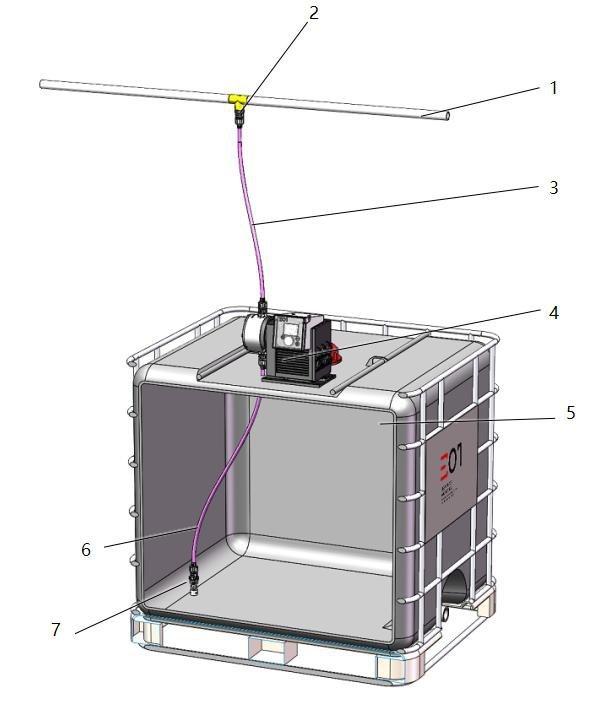

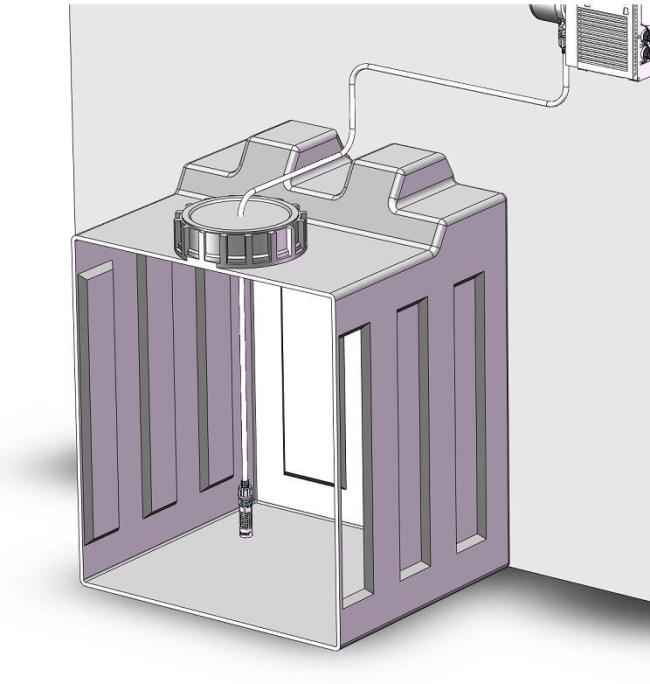

| Distance from Storage Box | 1-2 m, same level |
| Suction Pipe | With filter bottom valve at tank bottom |
| Outlet | Connects to main chemical delivery pipe |
| Operation | Run start button with quick start key |
Applications
Reagent and chemical dosing in mineral processing, water treatment and process plants.
