Two Component Chemical Dosing System for Water Treatment
Price:
Negotiate
MOQ:
1 Set
Delivery Time:
15-30 working days
Brand:
Y&X
Product Description
Two-Component Chemical Dosing System for Water Treatment
Some water treatment duties need two reagents dosed in step. This two-component chemical dosing system pairs two independent metering pumps — each at ±0.2 % accuracy — under one control scheme, so both chemicals are added in the right ratio, at the right point, without cross-contamination.
Two Independent Channels

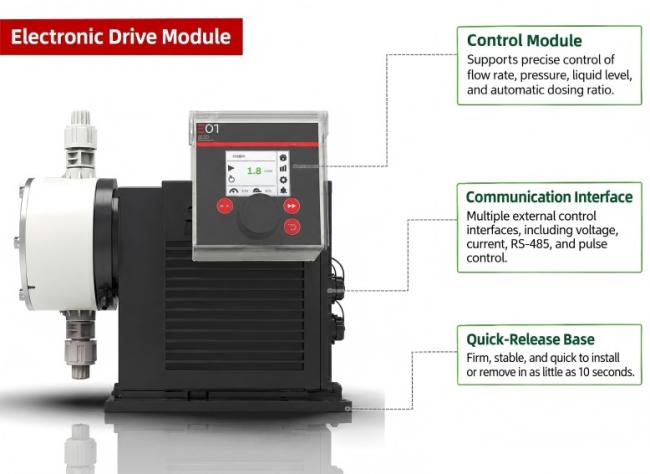

- Two separate metering pumps with dedicated lines
- Independent or coordinated dosing ratios
- IP65 components for damp process areas
- 4-20 mA / 0-10 V signals from flow or analyser input
Applications
- Coagulant and flocculant addition
- Disinfection with pH correction
- Antiscalant and corrosion inhibitor dosing
Specifications
| Data | Item | Unit | 36-8 | 120-2 | 180-4 | 300-5 | 480-5 |
|---|---|---|---|---|---|---|---|
| Mechanical Parameters | Turndown Ratio (Setting Range) | 1:X | 1:800 | ||||
| Maximum Flow Rate – Standard Mode | L/h | 36 | 120 | 180 | 300 | 480 | |
| Maximum Flow Rate – 50% Speed Mode | L/h | 18 | 60 | 90 | 150 | 240 | |
| Maximum Flow Rate – 25% Speed Mode | L/h | 9 | 30 | 45 | 75 | 120 | |
| Minimum Flow Rate | L/h | 0.06 | 0.3 | 0.6 | 0.6 | 0.6 | |
| Maximum Output Pressure | bar | 8 | 2 | 4 | 5 | 5 | |
| Repeatability | % | ±0.2 | |||||
| Standard Installation Suction Lift | m | 1.5 | |||||
| Maximum Viscosity at 25% Speed | MPa·s | 3000 | |||||
| Maximum Viscosity at 50% Speed | MPa·s | 2000 |
FAQ
Can the two channels be different sizes? Yes — each pump is sized to its own chemical and dose.
Is a combined skid available? Yes, both pumps can be supplied on one frame.
Send your duty details for a fast, tailored quotation.
