Roll Former Making Machinery Corrugated Sheet Panel Roll Forming Machine
Roll Former Making Machinery Corrugated Sheet Panel Roll Forming Machine

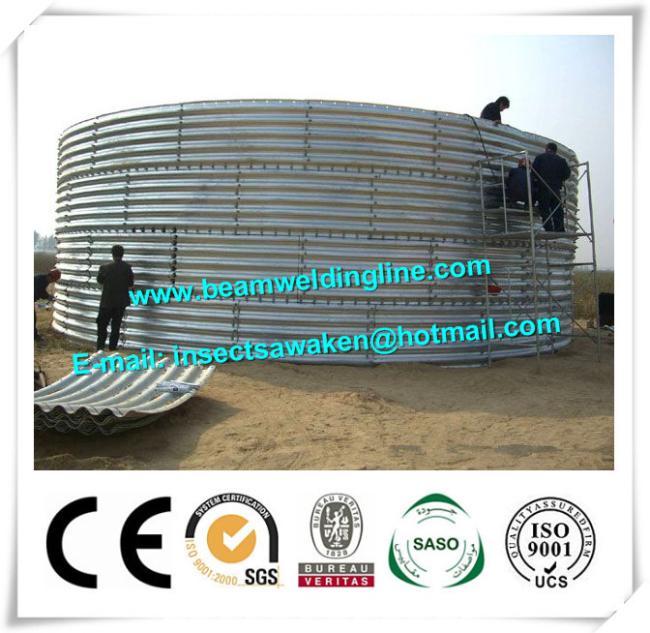

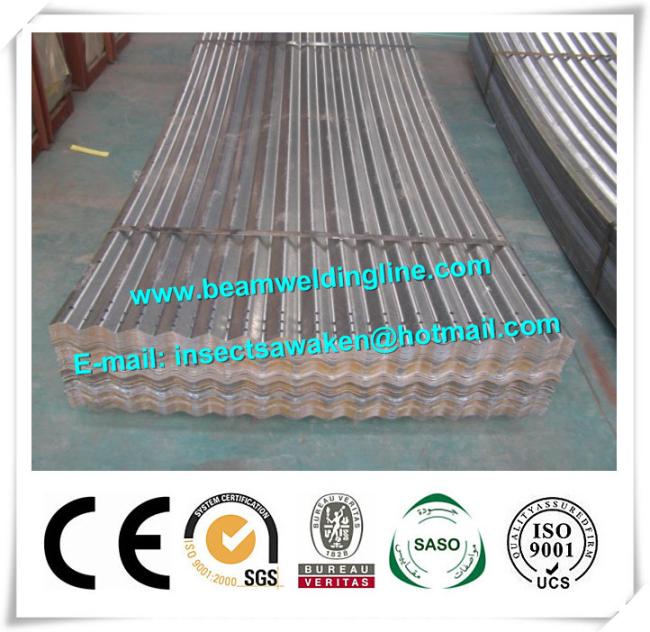

1. Why Steel Silo Corrugated Sheet/ Panel Roll Forming/ Rollformer Making Machinery used
● Material shape (storage): granular material, powder material, liquid material.
● Industry: grain, feedstuff, Brewing, medicine, food, cement, etc.
● Varieties in detail (storage): wheat, soybean, maize, sorghum wheat flour, bulk cement, fly ash, sewage, water, chemical syrup, etc.
● Ordinary black steel sheets, galvanized steel sheets,high strength steel sheets, stainless steel sheets, aluminum alloy sheets.
2. Configuration
● 10 Tons decoiler(manual or hydraulic) -- 1 unit

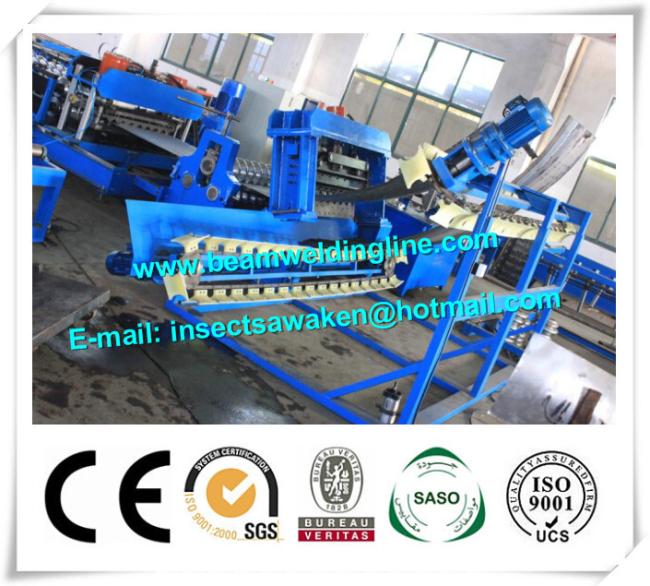

● Roll forming machine -- 1 unit
● Punching system -- 2 units
● Cutting system -- 1 unit
● PLC control -- 1 unit
● Hydraulic station -- 1 unit
● Runout table or 6M auto stacker -- 1 unit
● Spare tools -- one box
3. Main Parameters
|
Suitable Raw Material |
Galvanized sheet, Zinc aluminum sheet |
|
Material’s Thickness |
1.2-4.5mm |
|
Forming Stations |
18 |
|
Maximum Feeding Width |
1250mm |
|
Diameter of Roller’s Shaft |
120mm |
|
Producing Speed |
4-8m/min |
|
Material of Roller |
GCr15 quenching HRC 58-62° |
|
Drive Mode |
Gear Box |
|
Main Power |
about 180KW |
|
Electrical Control System |
PLC Frequency Control |
|
Dimension(L*W*H) |
35m*4.5m*4.5m |
|
Total Weight |
approx 70T |
 |
 |
