Roller Shutter Steel Silo Forming Machine for Roof and Wall Sheet
Roller Shutter Steel Silo Forming Machine for Roof and Wall Sheet
1. Specifications
|
Product name |
Corrugated steel sheet making machine |
|
Components |

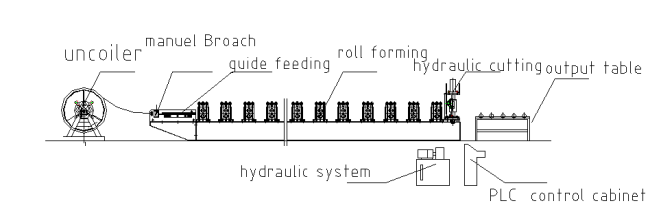

Manual Uncoiler, Guiding Platform, Main Machine Of Roll Forming, Electro-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
|
Applicance |
Roof and wall sheet |
|
Control system |
PLC colored touch screen |
|
Load-bearing capacity of manual decoiler |
4 Tons |
|
Main machine frame material |
250 H steel |
|
Forming speed |
8 meters / minute |
|
Roller station |
9 rows |
|
Diameter of principal axis |
70mm |
|
Roller material |
45# chrome coating |
|
Hydraulic motor power |
3 kw |
|
Hydraulic oil pump |
Gear pump |
|
Cutter blade |
Cr 12 H |
|
Cutter blade heat treatment |
HRC58°-60° |
|
Feeding width |
1000 mm |
|
Forming thickness |
0.3mm-0.7mm |
|
Overall size |
8000×1650×1500mm |
|
Total weight |
5 T |
2. Production description
● Door shutter roll forming machine
● Door system- Rolling shutter roll forming machine
● There's a lot of sizes or shapes, please kindly send me your profile drawing, so that we can provide the best offer to you
