LTD100 Compact Electric Hoist Light Weight With Unrestricted Wire Rope

LTD100 Compact Electric Hoist Light Weight With Unrestricted Wire Rope

        The rope is not connected so it’s compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability of the LTD hoist makes it possible to utilize unlimited lifting heights and traction lengths.

1. Safety

        In the event of a power failure, the electric-mechanical brake can be manually released in order to ensure safe and controlled lowering of the load. Safe lowering mechanism is guaranteed by the integrated centrifugal force brake.

2. Features and Benefit

- The robust and strong die-cast aluminum casing with low dead weight
- Gearing and drive sheave are fabricated from hardened steel.
- Motor and connection box protection class IP55.
- Hoist motor is fitted with a thermal overload protection device.
- Standardized components ensures easy access to all wearing parts.
- The parameters of LTD series hoist


3. Rated Lifting Force: 10kN

- Lifting Speed: 8.7m/min
- Voltage: 380V (415V/ 220V)
- Frequency: 50Hz/60Hz
- Power: 1.8kw

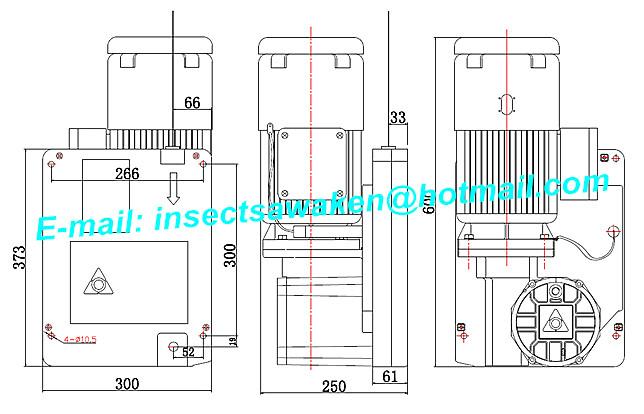

- Dimension: 310×250×600mm
- Weight: 53kg
- Braking Torque: 15N.m
- Rotate Speed: 1420r/min
- Diameter of Wire Rope: 4×31SW+FC-10.2mm
- Voltage and frequency is available upon request
