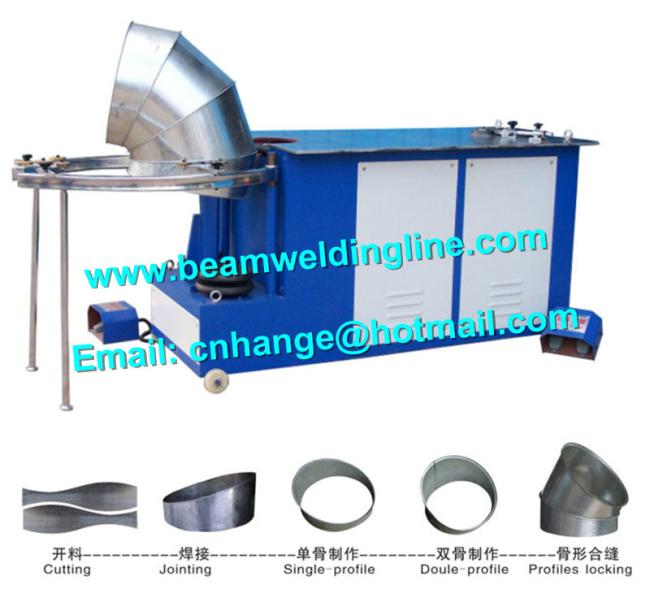

HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
Price:
Negotiable
MOQ:
1
Delivery Time:
10 working days
Brand:
FRIENDSHIP MACHINERY
Product Description
Features
1. Dual working station
2. Maximum flexibility – eliminates equipment,s changing over and reduces tool,s changing.
3. Higher production speed
4. Up to 120 m per minute flanging speed
5.Higher capacity
6. Material thickness up to 1.5 mm Galvanised steel and 1.0 mm Stainless steel.
7. Improved seam,s quality
8. Optimised roller,s profile.
9. Virtually no maintenance
10. No lubrication necessary and all rotating parts are made of hardened, high grade steel.
Technical data
| Electrical connection | 380V 50 Hz,other connections on request | ||
| Total power | 7.5 kw | ||
| forming speed | 120m / per min. | ||
| Production time | less than 90 seconds for a bend of 200 mm dia./900/4 segments by 1 Person | ||
| Diameter range | 125-1250mm | ||
| Min.radius | 1 times diameter,in relation to the centre line of the bend | ||
| Net weight | 750 kg and 2550×870×930mm | ||
| Material | Thickness in mm | ||
| from | to | ||
| Black steel | 0.4 | 1.5 | |
| Galvaniazed steel | 0.4 | 1.5 | |
| Stainless steel | 0.4 | 1.0 | |
| Aluminium | 0.4 | 1.5 | |
