Megtron6 (M6) R-5775 6-Layer PCB with 1.4mm Thickness and ENEPIG Finish by Bicheng Technologies Limited

Megtron6 (M6) R-5775 6-Layer PCB with 1.4mm Thickness: A High-Speed, Low-Loss Solution by Bicheng Technologies Limited

(All PCBs are custom-manufactured. Reference images and parameters may vary based on your design requirements.)

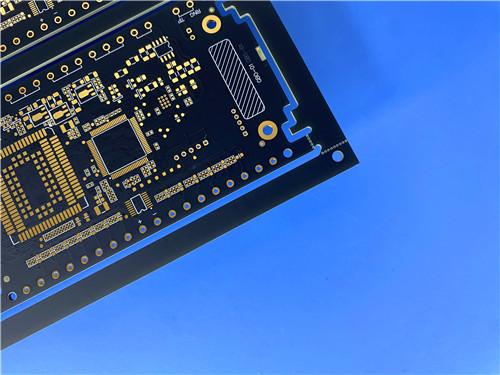

At Bicheng Technologies Limited, we are proud to offer the Megtron6 (M6) R-5775 6-Layer PCB, a cutting-edge solution designed to meet the demands of high-frequency, high-speed, and high-reliability electronic applications. This PCB is built with ’s Megtron6 (M6) R-5775G laminate, renowned for its low dielectric loss, stable dielectric constant, and exceptional thermal reliability.

This 1.4mm PCB, featuring Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG) surface finish and resin-filled capped vias, is optimized for applications such as 5G communication, millimeter-wave radar, high-speed servers, and aerospace systems. Let me guide you through its construction, features, and applications to show why it is the ideal choice for your next project.

1. Overview of the Megtron6 (M6) R-5775 6-Layer PCB

The Megtron6 (M6) R-5775 6-Layer PCB is engineered for ultra-high-speed communication systems and high-frequency signal transmission. Built with ’s R-5775 HVLP laminate, this PCB combines low dissipation factor (Df) and stable dielectric constant (Dk) to ensure minimal signal loss, high signal integrity, and thermal reliability for multilayer designs.

This PCB is compatible with traditional FR-4 processing, enabling cost-effective manufacturing without the need for specialized equipment. At Bicheng Technologies Limited, we adhere to IPC-Class-2 standards, and every PCB undergoes 100% electrical testing to ensure consistent quality and performance.

PCB Construction Details

Here’s a detailed breakdown of the construction of this 6-layer PCB:

This 6-layer stackup, with resin-filled capped vias and ENEPIG surface finish, ensures low signal loss, thermal reliability, and mechanical stability for high-frequency designs.

2. Features and Benefits of Megtron6 (M6) R-5775G Laminate

The performance of this PCB is driven by the unique properties of ’s Megtron6 (M6) R-5775 laminate, which is specifically designed for high-speed and high-frequency applications.

Key Features of Megtron6 (M6):

• Dielectric Constant (Dk): 3.4 at 1GHz/23°C, and 3.34 at 13GHz, ensuring stable and consistent signal propagation.
• Dissipation Factor (Df): 0.002 at 1GHz, and 0.0037 at 13GHz, minimizing signal loss and ensuring high efficiency.
• Thermal Properties: High Tg Value: >185°C (DSC), and 210°C (DMA), making it suitable for high-temperature environments.
• Thermal Decomposition Temperature (Td): 410°C, ensuring structural integrity under extreme conditions.
• CTE (Coefficient of Thermal Expansion):
  • X-axis: 16ppm/°C
  • Y-axis: 16ppm/°C
  • Z-axis: 45ppm/°C, ensuring dimensional stability and reliability.
• Flammability: UL 94V-0, meeting safety standards for high-reliability applications.
• Multilayer Compatibility: Supports 4 to 30 layers, enabling complex multilayer PCB designs.
• RoHS and Halogen-Free Compliance: Meets green manufacturing standards for environmentally friendly products.

Key Benefits of Megtron6 (M6):

• High-Frequency Stability: Low Dk and Df values ensure minimal signal loss and consistent performance in high-speed circuits.
• Thermal Reliability: High Tg and Td values support lead-free soldering and high-temperature applications.
• Cost-Efficiency: Compatible with FR-4 processing, reducing production costs without compromising performance.
• Dimensional Stability: Low CTE ensures structural integrity and reliability for multilayer PCBs.

3. Applications of the Megtron6 (M6) R-5775 6-Layer PCB

The Megtron6 (M6) R-5775 6-Layer PCB is designed for industries that demand high-speed data transmission, thermal reliability, and low signal loss. Its unique material properties make it ideal for 5G communication, automotive electronics, and aerospace systems.

Typical Applications:

5G Communication Base Stations: Supports millimeter-wave antennas and RF front-ends in high-speed 5G networks.

Automotive Electronics: Ideal for 77GHz millimeter-wave radar and ADAS systems, providing precise signal propagation and thermal stability.

Data Centers: Ensures reliable performance in high-speed server motherboards and 400G/800G optical module PCBs.

Aerospace Systems: Optimized for high-frequency satellite communication and radar systems.

Consumer Electronics: Suitable for Wi-Fi 6E/7 routers, AR/VR devices, and other high-frequency consumer products.

4. Why Choose Bicheng Technologies Limited?

At Bicheng Technologies Limited, we are dedicated to delivering innovative PCB solutions that meet the needs of high-performance industries. The Megtron6 (M6) R-5775 6-Layer PCB is a testament to our commitment to quality, reliability, and advanced technology.

Why Partner with Us?

1. Expertise in High-Frequency PCBs: We specialize in PCBs for RF, microwave, and high-speed applications.
2. Uncompromising Quality: All PCBs are manufactured to IPC-Class-2 standards and undergo comprehensive 100% electrical testing.
3. Global Availability: We provide worldwide delivery, ensuring your projects remain on schedule.
4. Customer-Centric Approach: Our team is committed to providing tailored solutions to meet your unique requirements.

For technical inquiries or assistance, feel free to contact me, Sally, at sales30@bichengpcb.com. I am happy to help you find the perfect PCB solution for your projects.
