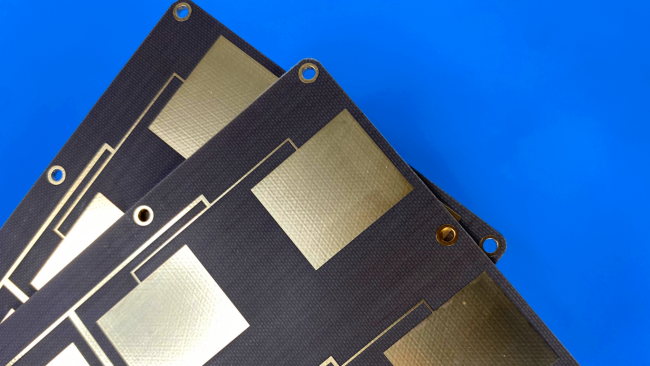

DiClad 870 High Frequency PCB

Introduction

Rogers DiClad 870 laminates are woven fiberglass reinforced, PTFE-based composites that offer lower dielectric constant and dissipation factors by using fewer plies of woven fiberglass and a higher ratio of PTFE content.

The woven fiberglass reinforcement in DiClad 870 provides greater dimensional stability than nonwoven fiberglass reinforced PTFE based laminates of similar dielectric constants. The coated fiberglass plies in DiClad 870 materials are aligned in the same direction.

Features

Here are some standout features of DiClad 870 materials.

They exhibit a dielectric constant of 2.33 at both 1MHz and 10 GHz, ensuring reliable signal transmission.

At 10 GHz, these laminates showcase a low dissipation factor of 0.0013, maintaining signal integrity.

DiClad 870 boasts a strong copper peel strength of 14 Lbs/in using 35 μm foil per IPC TM-650 2.4.8 test method, ensuring robust copper adhesion.

The moisture absorption rate is a exceptionally low at 0.02%, guaranteeing stability in various environmental conditions.

Lastly, DiClad 870 meets UL 94-V0 flammability standards, ensuring high safety and fire resistance.

PCB Capability

In this section, we'll delve into the diverse capabilities we offer for your DiClad 870 PCBs.

Our services cover a range of layer counts, from single-sided to double-sided, multi-layer, and hybrid PCBs, allowing for versatility in your designs.

When it comes to dielectric thickness, we provide options such as 31mil (0.787mm), 93mil (2.286mm), and 125mil (3.175mm), catering to various project requirements.

You can select from different copper weights like 1oz (35µm) and 2oz (70µm) to suit your conductivity needs.

With a maximum PCB size of 400mm X 500mm, we offer ample space for your designs, whether for a single board or multiple designs within a single panel.

Our solder mask options include a variety of colors such as Green, Black, Blue, Red, Yellow, and more, allowing you to personalize your PCBs.

For surface finishes, we provide a range of choices including Immersion gold, HASL, Immersion silver, Immersion tin, Bare copper, OSP, ENEPIG, and Pure gold.

Applications

DiClad 870 PCBs are frequently used in filter, coupler, and low noise amplifier

applications, where dielectric constant uniformity is critical. They are also used in power dividers, combiners, and base station antenna, where low loss is important.

In Radar Feed Networks, Commercial Phased Array Networks, Guidance Systems, and Digital Radio Antennas, you can also find the presence of DiClad 870 PCBs.

Thank you for watching. I’ll see you next time.
