Overview of the 3-Layer RF Hybrid PCB

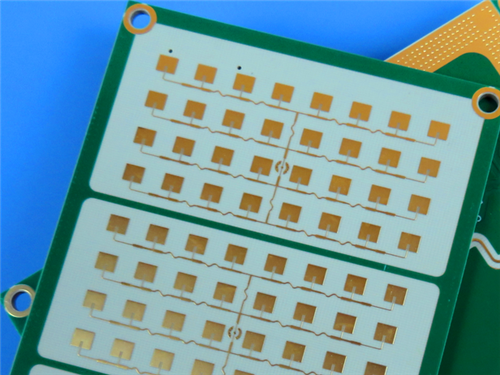

The 3-layer RF hybrid PCB combines the exceptional performance of Rogers RO3006 laminates with the reliability of Tg170 FR-4 materials, making it a versatile solution for RF and microwave applications. With a 0.86mm finished thickness, this PCB is designed for high-frequency circuits and multi-layer hybrid designs, ensuring excellent dielectric stability, low signal loss, and durability across various environments.

This hybrid PCB is ideal for applications such as automotive radar systems, satellite antennas, cellular telecommunications, and wireless communication devices. The combination of ceramic-filled PTFE composites and FR-4 provides a cost-effective yet high-performing option for engineers seeking consistent electrical performance and mechanical stability.

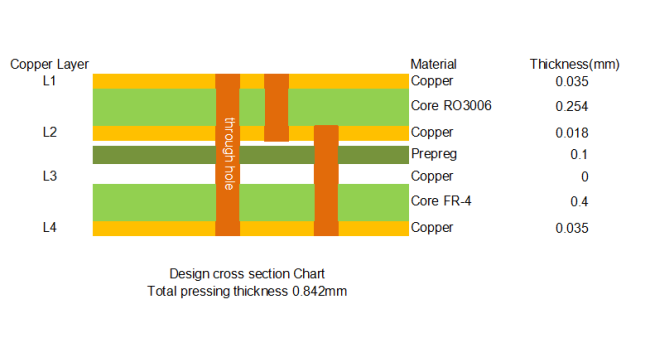

PCB Construction Details


Introduction to RO3006 Material
Rogers RO3006 laminates are ceramic-filled PTFE composites known for their stable dielectric constant (Dk) of 6.15 ± 0.15 and low dissipation factor of 0.002 at 10 GHz. These materials ensure minimal signal loss, even at high frequencies, and provide excellent mechanical durability. They are highly resistant to moisture, with an absorption rate as low as 0.02%, and feature a thermal conductivity of 0.79 W/m·K, ideal for heat-sensitive applications.


Key Features of RO3006

• High Thermal Stability: Td > 500°C ensures reliable performance in extreme conditions.
• Low In-Plane Expansion Coefficient: Matches copper for more reliable surface-mounted assemblies.
• Dimensional Stability: Excellent for multi-layer hybrid designs.
• Cost-Effective: Manufactured using volume production processes, making it an economical option.



Applications

• Automotive Radar Systems: Precision radar designs for advanced driver-assistance systems (ADAS).
• Satellite Communications: Reliable components for global positioning and direct broadcast satellites.
• Cellular Telecommunications: Power amplifiers and antennas for mobile networks.
• Wireless Communication Devices: Patch antennas and phase-sensitive systems.
• Datalink Systems: High-speed, low-loss data transfer in cable systems.
• Remote Meter Readers: Wireless solutions for IoT and utility monitoring.



Conclusion
The 3-layer RF hybrid PCB with RO3006 + Tg170 FR-4 is a high-performance solution for engineers designing RF and microwave circuits. Its exceptional dielectric properties, mechanical stability, and cost-effective manufacturing make it a reliable choice for applications requiring precision and durability. With global availability and compliance to IPC-Class-2 standards, this PCB is ready to meet the demands of modern RF systems.
